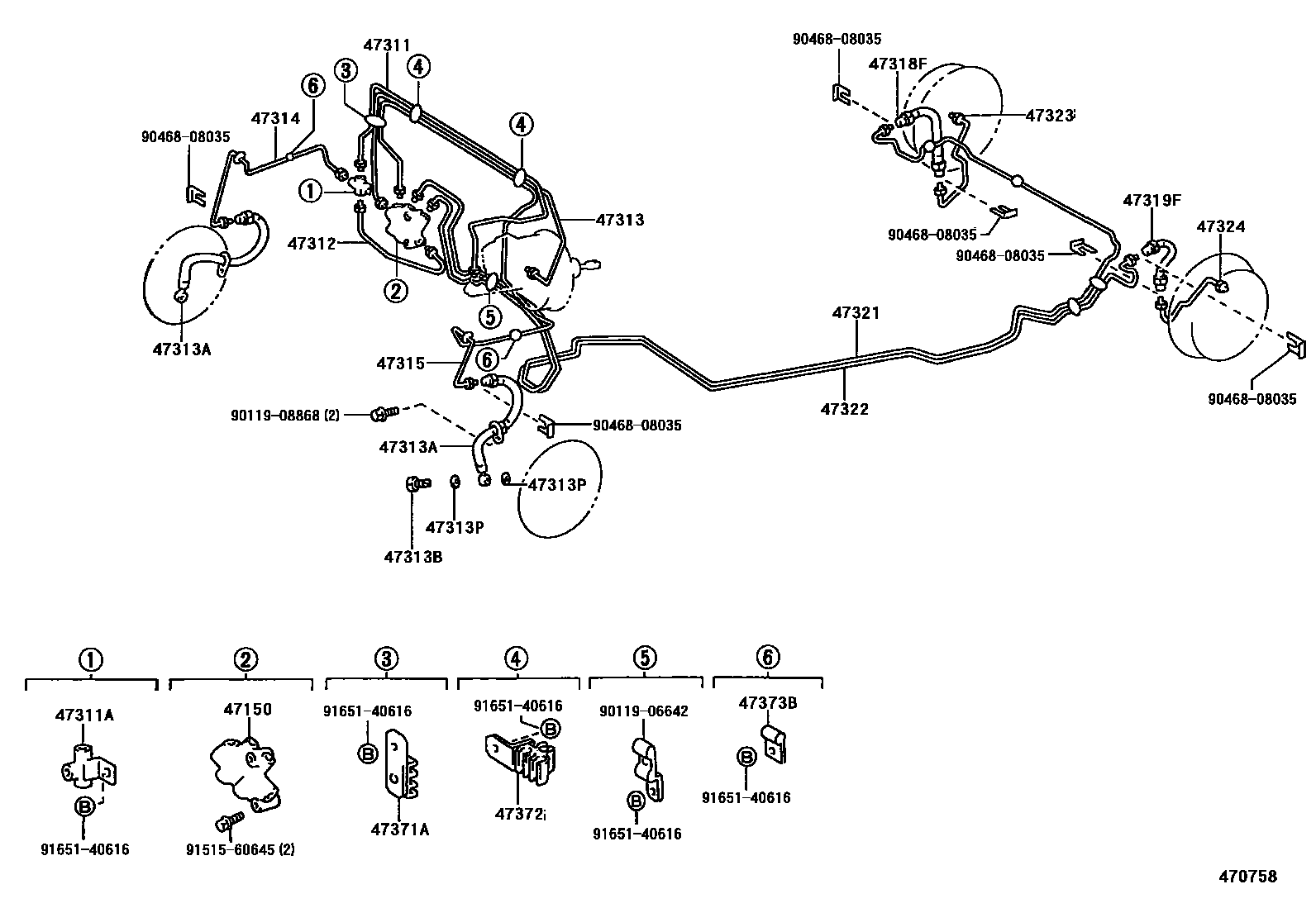

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
W(ABS)
W(ABS)
47311AWAY(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
W(ABS)
W(ABS)
W(ABS)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
W(ABS)
W(ABS)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
W(ABS)
W(ABS)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
W(ABS)
47373BCLAMP, BRAKE TUBE, NO.3
9011906642
main90119-06642
9011908868
main90119-08868
9046808035
main90468-08035
9151560645
main91515-60645
9165140616
main91651-40616
25 parts on this diagram · 5 diagrams in section
