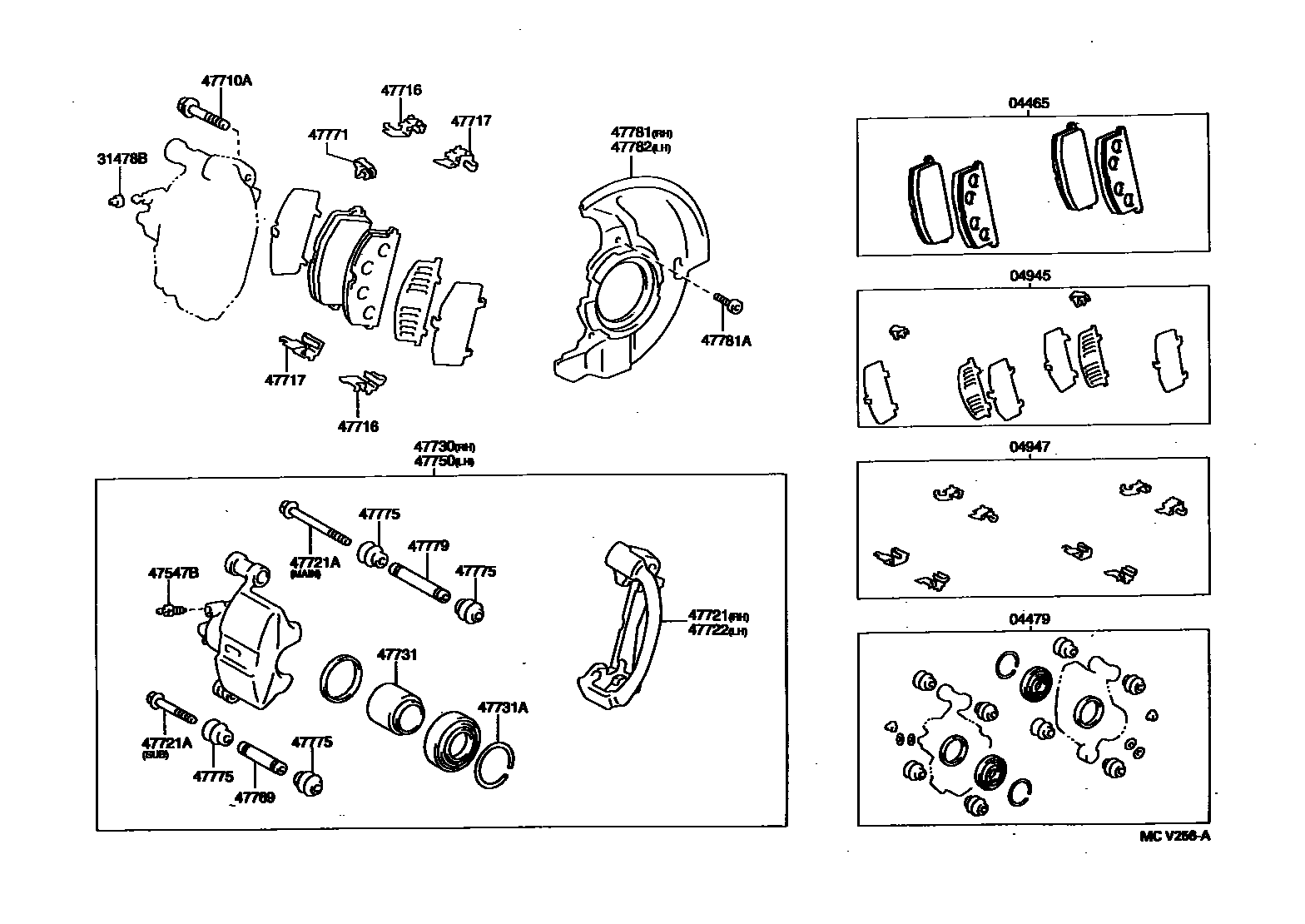

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-10040iEP91199601-199712

main04465-12510iEP90199808-199907

MARK AISIN PC543

main04465-16120iEP91199712-199907

main04465-21010iEP90199601-199907

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10070iEP91199601

main04479-12091iEP9#199601

W(ABS)

main04479-16021iEP90199601

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20050iEP91199601-199907

main04945-32050iEP91199601-199907

W(ABS)

main04945-32060iEP90199601-199907

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iEP91199601-199712

main04947-32010iEP9#199601-199712

W(ABS)

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iEP9#199601

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iEP9#199601

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iEP9#199601

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iEP91199601-199712

main47716-32031×4iEP9#199601-199712

W(ABS)

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140×4iEP91199601-199712

main47717-32031×4iEP9#199601-199712

W(ABS)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iEP9#199601

W(ABS)

main47721-16010iEP90199601

main47721-16040iEP91199601

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iEP90199601

*9-1.25PX71-25,W(ABS),SUB

main90119-09004×2iEP90199601

*9-1.25PX91-25,MAIN

main90119-09007×2iEP91199601

*9-1.25PX73-25,SUB

main90119-09008×2iEP91199601

*9-1.25PX93-25,MAIN

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iEP9#199601

W(ABS)

main47721-16010iEP90199601

main47721-16040iEP91199601

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10101iEP9#199601

W(ABS)

main47730-16081iEP90199601

main47730-16090iEP91199601

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iEP9#199601

W(ABS)

main47731-16020×2iEP90199601

main47731-16040×2iEP91199601

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iEP9#199601

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10101iEP9#199601

W(ABS)

main47750-16081iEP90199601

main47750-16090iEP91199601

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iEP9#199601

W(ABS)

main47769-20010×2iEP91199601

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iEP91199601-199808

main47771-32010×2iEP90199601

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-16020×8iEP91199601

main47775-32010×8iEP9#199601

W(ABS)

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iEP9#199601

W(ABS)

main47779-20010×2iEP91199601

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10060iEP9#199601

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iEP9#199601

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10060iEP9#199601

23 parts on this diagram · 2 diagrams in section
