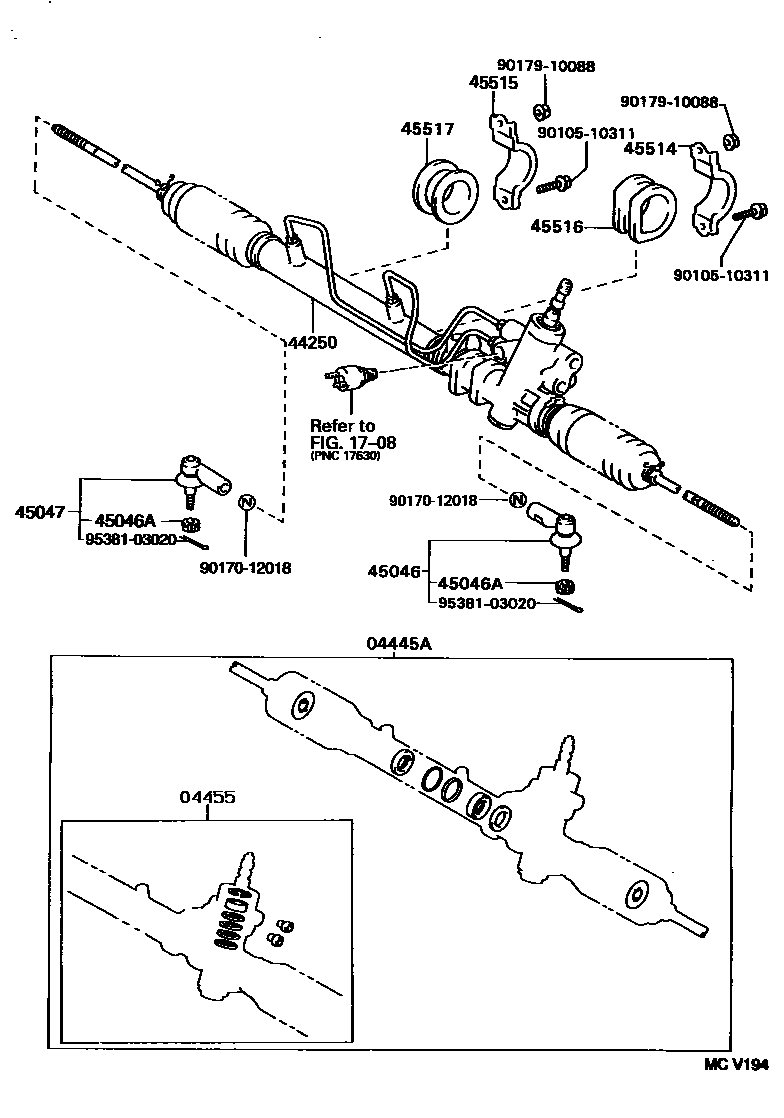

FRONT STEERING GEAR & LINK

0001 1POWER STEERING 0002 1POWER STEERING 0003 1POWER STEERING 0004 1POWER STEERING 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-16080iEP90..LHD..(3FC,5F)199601-199907

main04445-16110iEP9#..RHD..(3FC,5F)199601-199907

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10030iEP90..RHD..(3FC,5F)199601-199907

W(POWER STEERING)

main04455-16080iEP90..LHD..(3FC,5F)199601-199907

1708

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-10190iEP90..RHD..(3FC,5F)199601-199712

main44250-10200iEP91199601-199712

main44250-10201iEP91199712-199907

main44250-10220iEP90..LHD..(3FC,5F)199601-199610

main44250-10240iEP90..RHD..(3FC,5F)199712-199907

main44250-16250iEP90..LHD..(3FC,5F)199610-199907

45046END SUB-ASSY, TIE ROD, RH

main45046-19206iEP9#199601-199712

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iEP9#199601

45047END SUB-ASSY, TIE ROD, LH

main45046-19206iEP9#199601-199712

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16050iEP9#199601

main45514-16060iEP9#..3FC,5F199601-199707

W(POWER STEERING)

main45514-16061iEP9#..3FC,5F199707

W(POWER STEERING)

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-16060iEP9#..3FC,5F199601-199707

W(POWER STEERING)

main45514-16061iEP9#..3FC,5F199707

W(POWER STEERING)

main45515-10050iEP9#199601

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16050iEP9#199601

main45516-16060iEP9#..3FC,5F199601

W(POWER STEERING)

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEP9#..3FC,5F199601

W(POWER STEERING)

main45517-10080iEP9#199601

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

15 parts on this diagram · 5 diagrams in section
