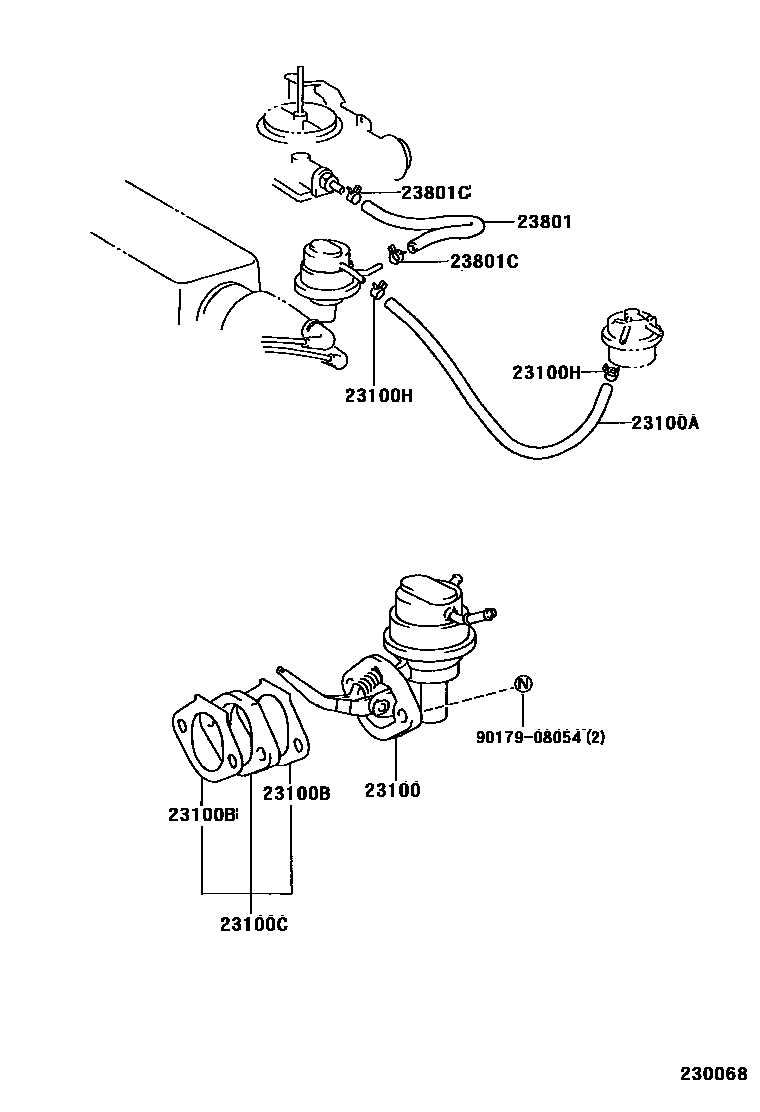

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-11081i2E..EP90199601

23100AHOSE, FUEL

main23271-11050i2E..EP90199601

23100BGASKET, FUEL PUMP

main90923-05024i2E..EP90199601

23100CINSULATOR, FUEL PUMP

main23915-10021i2E..EP90199601

23100HCLIP(FOR FUEL HOSE)

main96132-41100i2E..EP90199601

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95334-06010i2E..EP90199601

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96135-41100i2E..EP90199601

sub96135-51100

9017908054

main90179-08054

8 parts on this diagram · 1 diagram in section
