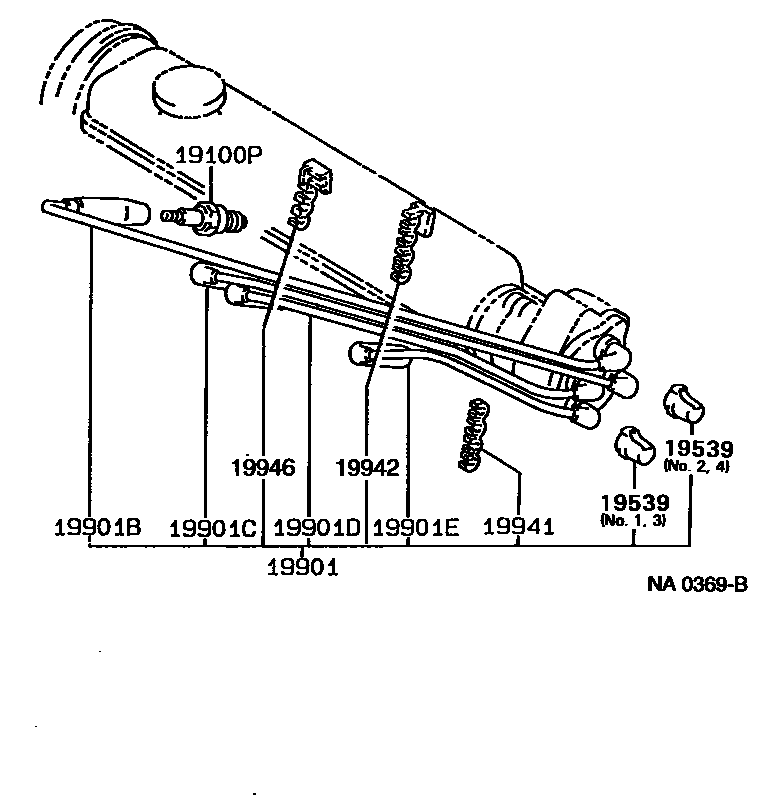

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01084i2E..EP90199601

W20EXR-U

main90919-01176i4EFE..EP91199601

K16R-U

19539HOLDER, RESISTIVE CODE, NO.4

main19532-50010i2E..EP90199601

NO.2,4

main19539-11010i2E..EP90199601

NO.1,3

main19539-11020i4EFE..EP91199601

NO.1,2

main19539-11030i4EFE..EP91199601

NO.3,4

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-22329i2E..EP90199601

main90919-22373i4EFE..EP91199601

sub90919-22420

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15216i2E..EP90199601

main90919-15423i4EFE..EP91199601

sub90919-15594

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15217i2E..EP90199601

main90919-15424i4EFE..EP91199601

sub90919-15595

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15218i2E..EP90199601

main90919-15425i4EFE..EP91199601

sub90919-15596

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15202i4EFE..EP91199601

sub90919-15589

main90919-15219i2E..EP90199601

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00637i2E..EP90199601

main90929-01258i4EFE..EP91199601

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00639i2E..EP90199601

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00561i4EFE..EP91199601

main90464-00638i2E..EP90199601

10 parts on this diagram · 2 diagrams in section
