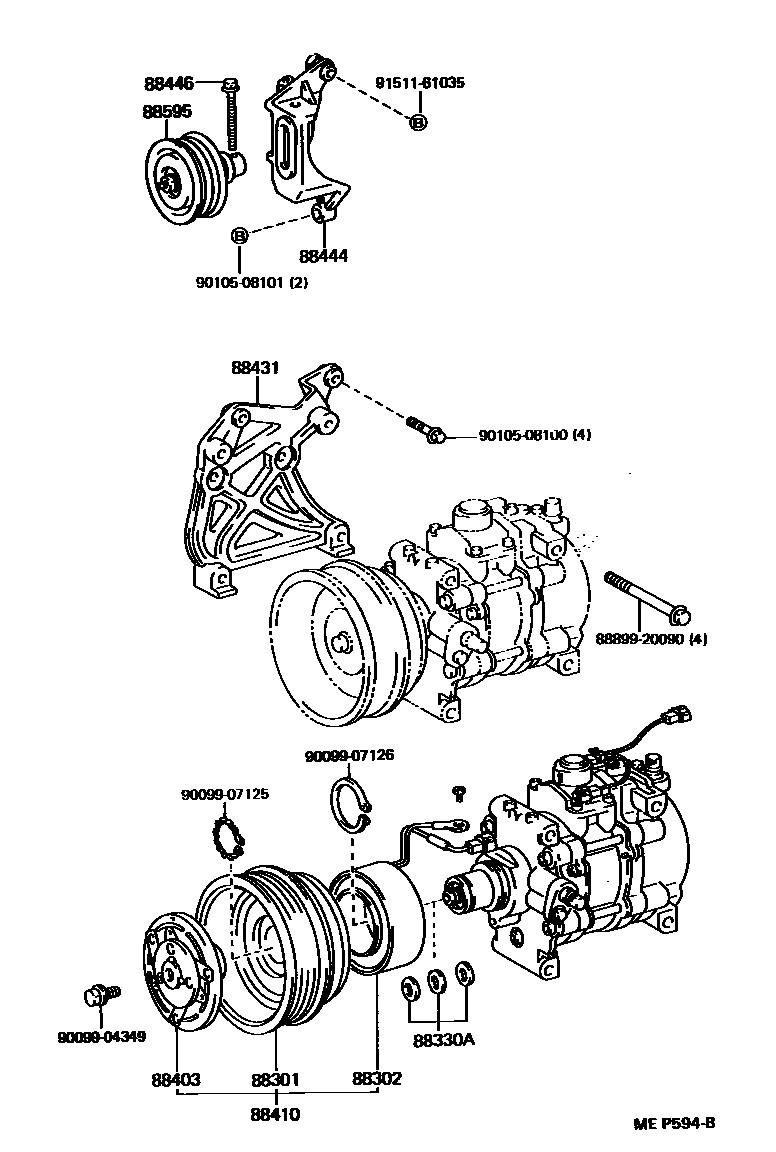

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-10120iEP82..SOL199201-199312

MANUAL *AIC---*LHC OR *AIC SW=1 BUTTON

main88412-10150iEP8#..CAN,S,SOLL,STD,XL198912-199312

main88412-10150iEP82..SOL199201-199312

W(PS & MANUAL *AIC---*LHC) OR W(PS & *AIC SWITCH=1 BUTTON) OR W(PS) & W/O(GAS)

main88412-16080iEP82..SOLL199505-199601

*LHC OR *AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL *AIC---*LHC

main88412-16080iEP82..SOL199505-199601

MANUAL *AIC---*LHC OR *AIC SWITCH=1BUTTON

main88412-16080iEP8#..S,STD,XL199312-199505

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16050iEP8#199201-199312

main88411-1A040iEP8#199312-199505

main88411-1A040iEP82..SOLL199505-199601

*LHC OR *AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL *AIC---*LHC

main88411-1A040iEP82..SOL199505-199601

MANUAL *AIC---*LHC OR *AIC SWITCH=1BUTTON

main88411-60030iEP8#198912-199201

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iEP8#198912

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iEP8#198912-199312

main88403-1A010iEP8#199312

88410CLUTCH ASSY, MAGNET

main88410-10220iEP8#198912-199201

main88410-10280iEP82..SOL199505-199601

*LHC OR *AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL *AIC---*LHC

main88410-10280iEP82..SOLL199505-199601

MANUAL *AIC---*LHC OR *AIC SWITCH=1BUTTON

main88410-10280iEP8#..S,STD,XL199312-199505

main88410-10280iEP82..S199506-199601

HONG KONG SPEC & MANUAL *AIC---*LHC

main88410-16090iEP8#..CAN,S,SOLL,STD,XL199201-199312

W(POWER STEERING) & W/O(GAS)

main88410-16130iEP82..SOL199201-199312

MANUAL AIR CON---*LHC OR AIR CON SWITCH=1 BUTTON OR W/O(GAS)

main88410-16280iEP82..S,SOLL199506-199601

MANUAL *AIC---*LHC

main88410-16280iEP82..SOL199506-199601

W(PS & MANUAL *AIC---*LHC)

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16060iEP8#198912-199505

88444BRACKET, IDLE PULLEY

main88444-10021iEP80198912-199601

main88444-10031iEP81;EP82..SOL198912

88446BOLT, IDLE PULLEY

main88446-12030iEP80,81;EP82..SOL198912

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16050iEP80,81;EP82..SOL199408-199410

main88440-17010iEP80,81;EP82..SOL198912-199408

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907125

main90099-07125

9009907126

main90099-07126

9010508100

main90105-08100

9010508101

main90105-08101

9151161035

main91511-61035

16 parts on this diagram · 2 diagrams in section
