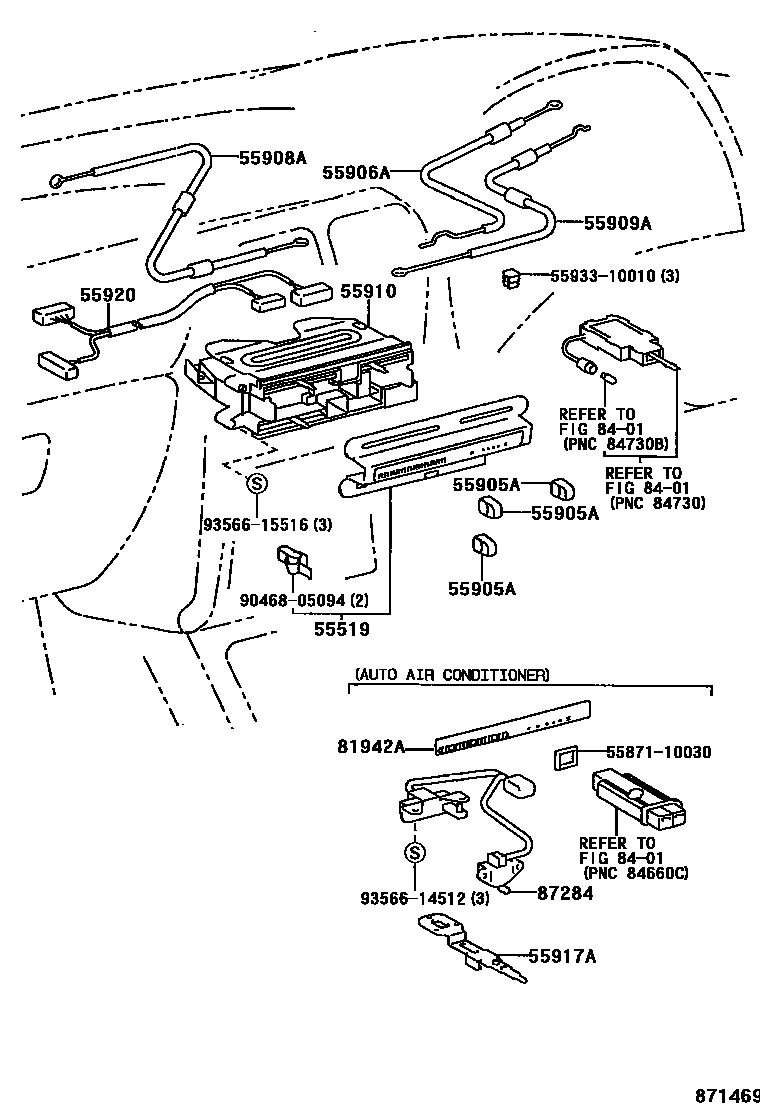

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55519PLATE, HEATER CONTROL NAME
W/O(*AIC)
W(HEATER & BOOST VENTILATOR)
*AAC---*LHC
W(HEATER & BOOST VENTILATOR)
sub55519-10130
55905AKNOB, HEATER CONTROL
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
W(HEATER & BOOST VENTILATOR)
W(HEATER & BOOST VENTILATOR)
55917ALEVER, TEMPERATURE DAMPER CONTROL
55920HARNESS ASSY, HEATER CONTROL SUB WIRE
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
81942ASHEET, HEATER CONTROL NAME, NO.1
8401
87284RESISTOR SUB-ASSY, VARIABLE
*AAC---*LHC
5587110030PANEL, COWL VENTILATOR AIR DUCT
main55871-10030
5593310010GUIDE, LEVER, NO.2
main55933-10010
9046805094
main90468-05094
9356614512
main93566-14512
9356615516
main93566-15516
16 parts on this diagram · 4 diagrams in section
