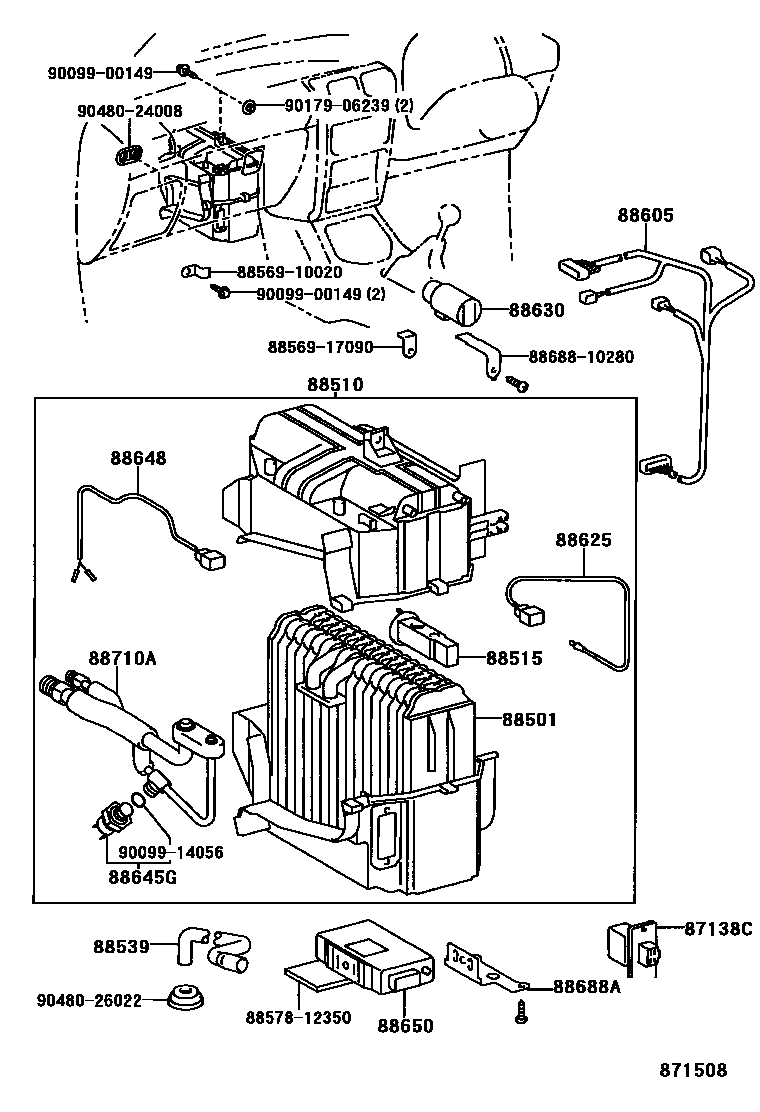

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPT 0002 1MAKER OPT 0003 1DEALER OPT 0004 1DEALER OPT

87138CRESISTOR, BLOWER

main87138-10130iEP80,81..LHD198912-199601

main87138-10140iEP82..SOLL;EP80,81..RHD198912-199405

main87138-18020iEP82..S199405-199601

*AAC---*LHC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10100iEP8#..RHD198912-199312

sub88501-16090

main88501-10110iEP80,81..LHD198912-199312

main88501-10130iEP80,81..LHD199405-199501

MANUAL *AIC OR *BV

main88501-10131iEP80,81..LHD199405-199501

W(GAS) OR *BV---DEALER OPT

main88501-10140iEP82..S,SOLL199506-199601

W(PS & MANUAL *AIC---*LHC)

main88501-16110iEP82..S199505-199601

*AIC SWITCH=1BUTTON OR *AAC---*LHC OR HONG KONG SPEC & MANUAL *AIC---*LHC

sub88501-16111

main88501-16120iEP80,81..LHD199312-199405

sub88501-16121

main88501-16130iEP80..RHD199405-199408

COOLER *BV

main88501-16131iEP80,81..RHD199405-199501

W(GAS) OR *BV---DEALER OPT

sub88501-16111

88510UNIT ASSY, COOLER

main88510-10240iEP8#..RHD198912-199312

main88510-10250iEP80,81..LHD198912-199312

main88510-10480iEP8#..RHD199405-199505

main88510-10490iEP80,81..LHD199405-199601

main88510-10630iEP82..S,SOLL199506-199601

W(PS & MANUAL *AIC---*LHC)

main88510-16480iEP8#..RHD199312-199405

main88510-16490iEP80,81..LHD199312-199405

88515VALVE, COOLER EXPANSION

main88515-14060iEP8#..LHD198912-199007

MANUAL *AIC OR COOLER *BV

main88515-14061iEP8#..RHD198912-199007

MANUAL AIR CON DEALER KIT OR BOOST VENTILATOR

main88515-14062iEP81..3D..S;EP81..RHD..XL;EP80..RHD..STD199008-199102

MANUAL AIR CON DEALER KIT OR BOOST VENTILATOR OR W/O(GAS)

sub88515-33010

main88515-20100iEP82..SOLL199506-199601

*LHC OR *AIC SWITCH=1BUTTON

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10090iEP8#..RHD198912

main88539-10100iEP80,81..LHD198912-199601

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1C030iEP81..RHD..XL;EP8#..RHD..3D..(S,STD)199001-199002

MANUAL *AIC OR W(GAS)

main88605-1C040iEP81..3D..S;EP81..RHD..XL;EP80..RHD..STD199002-199201

W(AIR CONDITIONER & BOOST VENTILATOR)

main88605-1C310iEP82..SOLL199201-199312

W(PS & *AIC)

main88605-1C320iEP80,81199201-199212

W(AIR CONDITIONER) OR W(BOOST VENTILATOR)

main88605-1C330iEP80,81..LHD199212-199312

MANUAL *AIC OR W(GAS)

main88605-1C350iEP82..SOL199201-199312

MANUAL *AIC OR W/O(GAS)

main88605-1C360iEP82..SOL199201-199312

W(AIR CONDITIONER SWITCH=1 BUTTON)

main88605-1C370iEP82..SOLL199201-199312

W(PS & *AIC SWITCH=1 BUTTON)

main88605-1C450iEP82..CAN,S,SOLL199201-199312

W(AUTO AIR CONDITIONER)

main88605-1C520iEP81..RHD199212-199312

W(PS & MANUAL AIR CONDITIONER---*LHC) OR W(PS & DEALER OPT

main88605-1C530iEP81..RHD199212-199312

W(PS & *BV)

main88605-1C540iEP80,81..RHD199212-199312

W(AIR CONDITIONER) OR W(BOOST VENTILATOR)

main88605-1C550iEP80,81..RHD199212-199312

MANUAL *AIC OR W(GAS)

main88605-1C560iEP82..SOL199312-199405

MANUAL *AIC

main88605-1C570iEP82..CAN,S,SOLL199312-199405

W(AUTO AIR CONDITIONER)

main88605-1C580iEP82..SOLL199312-199405

W(PS & *AIC SWITCH=1 BUTTON)

main88605-1C600iEP82..SOL199312-199405

MANUAL *AIC

main88605-1C610iEP82..SOL199312-199405

W(AIR CONDITIONER SWITCH=1 BUTTON)

main88605-1C740iEP80,81199312

MANUAL *AIC OR W(GAS)

main88605-1C750iEP80,81..LHD199312-199601

BOOST VENTILATOR

main88605-1C780iEP81..RHD199312

W(PS & MANUAL AIR CONDITIONER---*LHC) OR W(PS & DEALER OPT

main88605-1C790iEP81..RHD199312

W(PS & *BV)

main88605-1C880iEP82..S199405-199601

W(AUTO AIR CONDITIONER)

main88605-1C890iEP82..S199405-199601

MANUALE AIR CONDITIONER

main88605-1M030iEP82..S,SOLL199405-199601

*AAC---*LHC

main88605-1M040iEP82..SOLL199405-199601

W(PS & *AIC SWITCH=1 BUTTON)

main88605-1M060iEP82..SOL199405-199601

COOLER BOOST VENTILATOR---DEALER OPT

main88605-1M070iEP82..SOL199405-199601

W(AIR CONDITIONER SWITCH=1 BUTTON)

main88605-1M210iEP82..S199405-199601

AUTOMATIC AIR CONDITIONER

88625THERMISTOR, COOLER, NO.1

main88625-24050iEP8#..RHD198912-199104

88630RELAY ASSY, COOLER

main88630-95702×2iEP8#199201-199601

88645GSWITCH, PRESSURE

main88645-30320iEP8#..RHD198912-199001

sub88645-30281

88648WIRING, COOLER, NO.1

main88648-10290iEP8#198912-199312

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10060iEP81..3D..S;EP81..RHD..XL;EP80..RHD..STD198912-199201

W(AIR CONDITIONER & BOOST VENTILATOR)

main88650-10370iEP80,81199201

main88650-10410iEP82199505-199601

DEALER OPTION

main88650-16310iEP8#198912-199201

W(AIR CONDITIONER---MOP) OR W(AIR CONDITIONER---DOP)

main88650-16450iEP82..SOL199201-199601

W(AIR CONDITIONER)

main88650-16500iEP82..S199405-199601

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-10230iEP8#..RHD198912-199201

main88688-10240iEP8#..LHD198912-199201

main88688-10330iEP8#..RHD..(S,STD,XL)199505

main88688-10340iEP80,81..LHD199201-199601

88710ATUBE ASSY, AIR CONDITIONER

main88710-10060iEP8#..RHD198912-199312

main88710-10070iEP80,81..LHD198912-199312

main88710-16230iEP82..SOLL199506-199601

*LHC OR *AIC SWITCH=1BUTTON

main88710-16240iEP80,81..LHD199312-199601

8856910020CLAMP (FOR COOLER RELAY)

main88569-10020

8856917090CLAMP (FOR COOLER RELAY)

main88569-17090

8857812350PAKING, COOLER AIR DUCT

main88578-12350

8868810280BRACKET, COOLER DIAPHRAGM

main88688-10280

9009900149

main90099-00149

9009914056

main90099-14056

9017906239

main90179-06239

9048024008

main90480-24008

9048026022

main90480-26022

22 parts on this diagram · 4 diagrams in section
