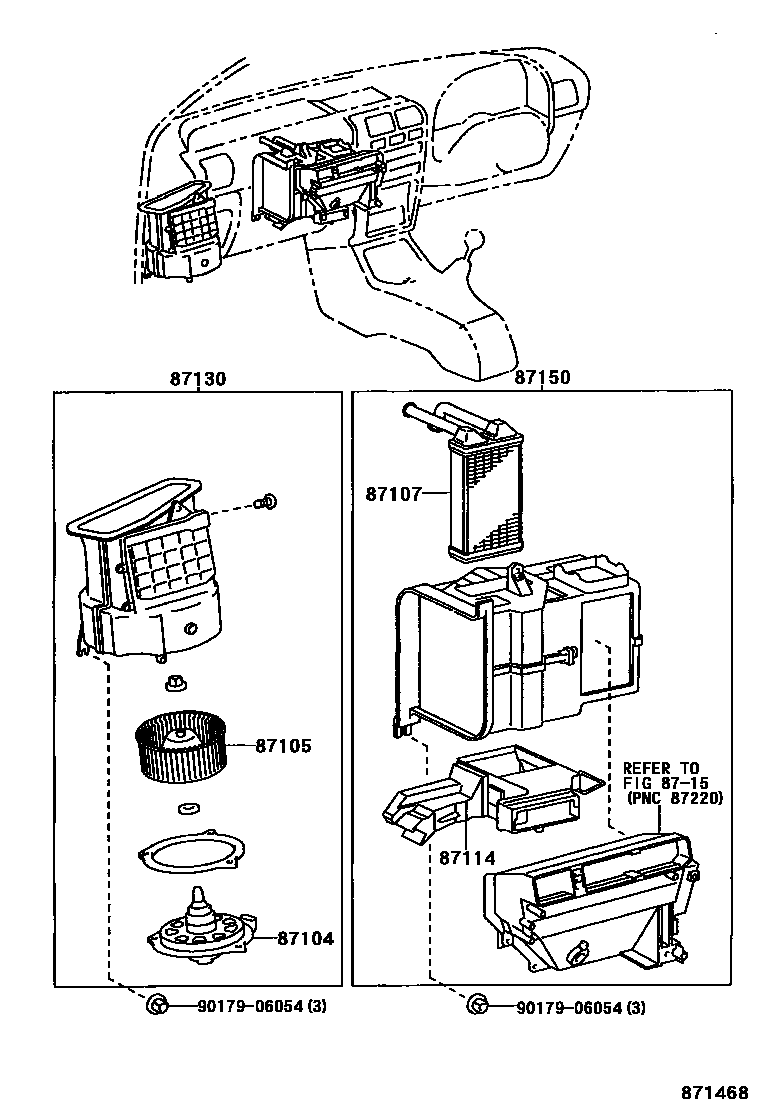

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1HEATER 0002 1BOOST VENTILATOR 0003 1AUTO AIR CONDITIONER PARTS

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-10210iEP82199201-199601

sub87104-10250

main87104-10210iEP80,81..RHD198912

W(AIR CONDITIONER)

sub87104-10250

main87104-10220iEP80,81..RHD198912

main87104-10230iEP80,81..LHD198912-199601

sub87104-10280

sub87105-14020

main87104-10240iEP80,81..LHD198912-199601

W(AIR CONDITIONER)

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iEP80,81..LHD198912-199601

W(AIR CONDITIONER)

main87105-14030iEP82199201-199601

main87105-14030iEP80,81..RHD198912

W(AIR CONDITIONER)

main87105-90B00iEP80,81..RHD198912

main87134-30010iEP80,81..LHD198912-199601

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-10240iEP8#..RHD198912

main87107-10250iEP82199201-199601

COLD SPEC

main87107-10300iEP80,81..LHD198912-199601

sub87107-16180

87114COVER, HEATER

main87114-10060iEP8#..RHD198912-199411

sub87114-42010

main87114-10070iEP82199201-199411

COLD SPEC

sub87114-42020

main87114-10080iEP80,81..LHD198912-199601

main87114-42010iEP8#..RHD199411

main87114-42020iEP82199411-199601

COLD SPEC

87130BLOWER ASSY, HEATER, FRONT

main87130-10230iEP80,81..RHD198912

W(AIR CONDITIONER)

main87130-10230iEP82199201-199601

main87130-10250iEP80,81..RHD198912

main87130-10260iEP80,81..LHD198912-199601

main87130-10270iEP80,81..LHD198912-199601

W(AIR CONDITIONER)

8715

87150RADIATOR ASSY, HEATER

main87150-10250iEP80,81..LHD198912-199212

main87150-10300iEP82..S199405-199601

*AAC---*LHC

main87150-10310iEP82..S199405-199601

COLD SPEC & *AAC---*LHC

main87150-10320iEP8#..RHD198912

main87150-10330iEP82199201-199601

COLD SPEC

main87150-10390iEP80,81..LHD199212-199601

9017906054

main90179-06054

8 parts on this diagram · 3 diagrams in section
