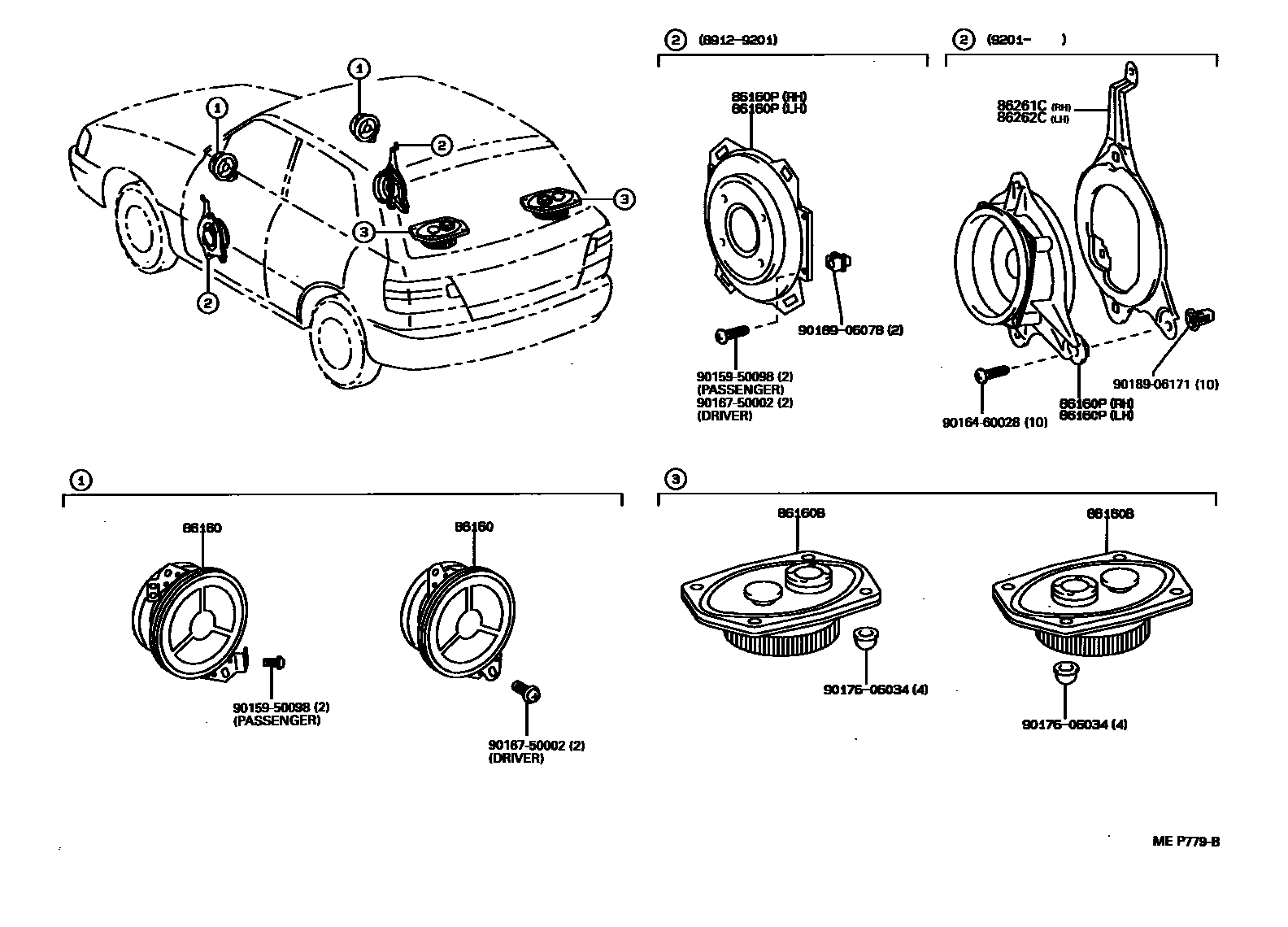

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
INDONESIA(CKD) OR W(AM/FM MPX ETR) OR W(AM/FM ETR CST) OR W(LW/MW/UW ETR CST);W(MW/SW ETR CST) OR W(AM/FM ETR CST) OR W(AM/FM ETR),DRIVER
W(AM/FM MPX 5-BUTTON RADIO) OR W(TAPE PLAYER),DRIVER
DRIVER
W(TAPE PLAYER);W(AM/FM MPX 5-BUTTON RADIO),DRIVER
INDONESIA(CKD) OR W(AM/FM MPX ETR);W(AM/FM MPX ETR CST);W(LM/MW/UW ETR CST) OR W(MW/UW ETR CST),DRIVER
AM ETR 1 SP
PASSENGER
W(AM/FM MPX 5-BUTTON RADIO) OR W(TAPE PLAYER),PASSENGER
INDONESIA(CKD) OR W(AM/FM MPX ETR);W(AM/FM MPX ETR CST);W(LM/MW/UW ETR CST) OR W(MW/UW ETR CST),PASSENGER
INDONESIA(CKD) OR W(AM/FM MPX ETR) OR W(AM/FM ETR CST) OR W(LW/MW/UW ETR CST);W(MW/SW ETR CST) OR W(AM/FM ETR CST) OR W(AM/FM ETR),PASSENGER
W(TAPE PLAYER);W(AM/FM MPX 5-BUTTON RADIO),PASSENGER
W(AM/FM MPX EPX ETR CST ADR),DRIVER
W(AM/FM MPX EPX ETR CST ADR),PASSENGER
DRIVER
PASSENGER
86160BSPEAKER ASSY, REAR
INDONESIA SPEC
W(6 SPEAKER)
W(RADIO---4 SPEAKER)
86160PSPEAKER ASSY, FRONT NO.2
RH DOOR
LH DOOR
86261CBRACKET, DOOR SPEAKER, RH
86262CBRACKET, DOOR SPEAKER, LH
9015950098
main90159-50098
9016460028
main90164-60028
9016750002
main90167-50002
9017606034
main90176-06034
9018906078
main90189-06078
9018906171
main90189-06171
11 parts on this diagram · 1 diagram in section
