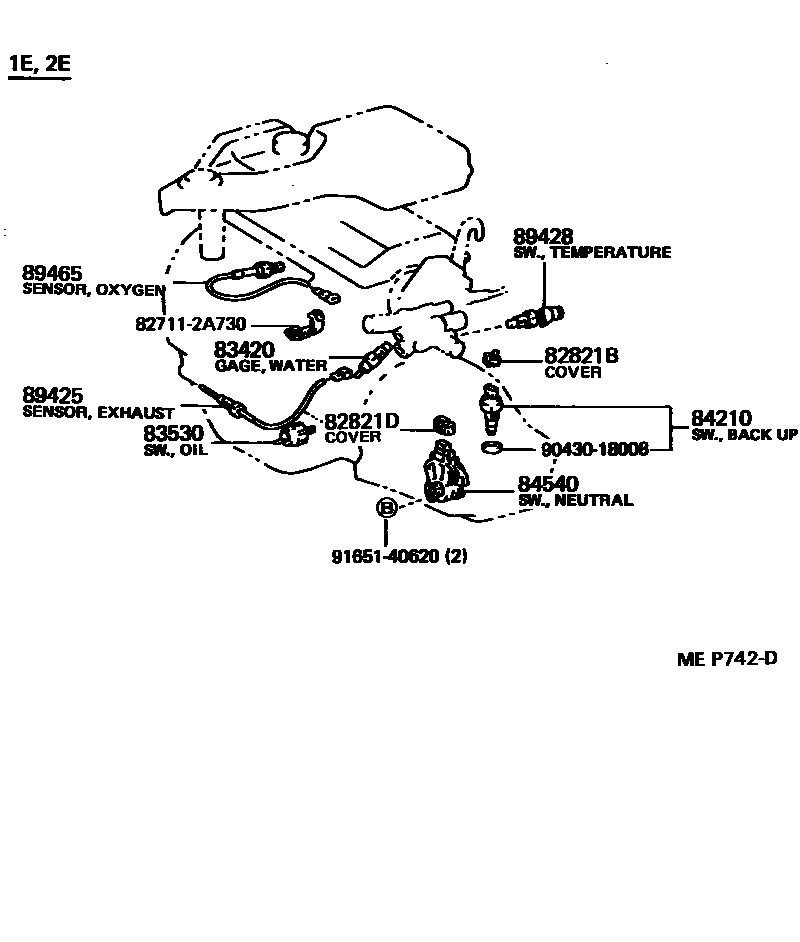

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

82821BCOVER, CONNECTOR

main82821-12250iEP8#..MTM198912-199203

82821DCOVER, CONNECTOR

main82821-20170iEP81..3FC198912-199201

main82821-35010iEP81,82..ATM199201-199403

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEP8#198912

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30080iEP8#198912-199212

sub83530-60040

main83530-30090iEP8#199212

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEP8#..MTM198912

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16030iEP81..3FC198912-199201

main84540-16040iEP81,82..ATM199201-199601

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-12280iEP82199201-199601

MATUSITA

main89425-20190iEP82199201-199601

DENSO

sub89425-43010

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEP8#199201

main89428-20060iEP8#198912-199201

89465SENSOR, OXYGEN

main89465-10020iEP82199201-199601

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

9043018008

main90430-18008

9165140620

main91651-40620

12 parts on this diagram · 8 diagrams in section
