HEADLAMP
81110HEADLAMP ASSY, RH
sub81110-10621
HALOGEN,WHITE
HALOGEN,YELLOW
LH TRAFFIC SPEC
LH TRAFFIC SPEC & HALOGEN,WHITE
LH TRAFFIC SPEC
WHITE
W(FOG LAMP)
W(FOG LAMP HOLE IN BUMPER)
W(*66)
W(*66)
W(FOG LAMP)
W(*66)
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE
12V 65/60W,WHITE
81118ABRACKET, HEADLAMP, RH
81127BEARING, HEADLAMP, NO.1
W(HEADLAMP AIMING) OR *HAL *YE
HALOGEN,WHITE
W(*66),NO.1
W(*66),NO.2
81135UNIT ASSY, HEADLAMP, RH
HALOGEN,WHITE OR HALOGEN,YELLOW
LH TRAFFIC SPEC
LH TRAFFIC SPEC & HALOGEN,WHITE
LH TRAFFIC SPEC
WHITE
W(FOG LAMP)
W(FOG LAMP HOLE IN BUMPER)
W(FOG LAMP)
81144CCOVER, HEADLAMP SOCKET
81150HEADLAMP ASSY, LH
sub81150-10441
HALOGEN,WHITE
HALOGEN,YELLOW
LH TRAFFIC SPEC
LH TRAFFIC SPEC & HALOGEN,WHITE
LH TRAFFIC SPEC
WHITE
W(FOG LAMP)
W(FOG LAMP HOLE IN BUMPER)
W(FOG LAMP)
81158BRACKET, HEADLAMP, LH
81175UNIT ASSY, HEADLAMP, LH
HALOGEN,WHITE OR HALOGEN,YELLOW
LH TRAFFIC SPEC
LH TRAFFIC SPEC & HALOGEN,WHITE
LH TRAFFIC SPEC
WHITE
W(FOG LAMP)
W(FOG LAMP HOLE IN BUMPER)
W(FOG LAMP)
81196RETAINER, HEADLAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
8113710471PROTECTOR, HEADLAMP, NO.2 RH
main81137-10471
9007500007
main90075-00007
9007510805
main90075-10805
9007510816
main90075-10816
9007599012
main90075-99012
9007599043
main90075-99043
9010506156
main90105-06156
9018904014
main90189-04014
9046708128
main90467-08128
9152140614
main91521-40614

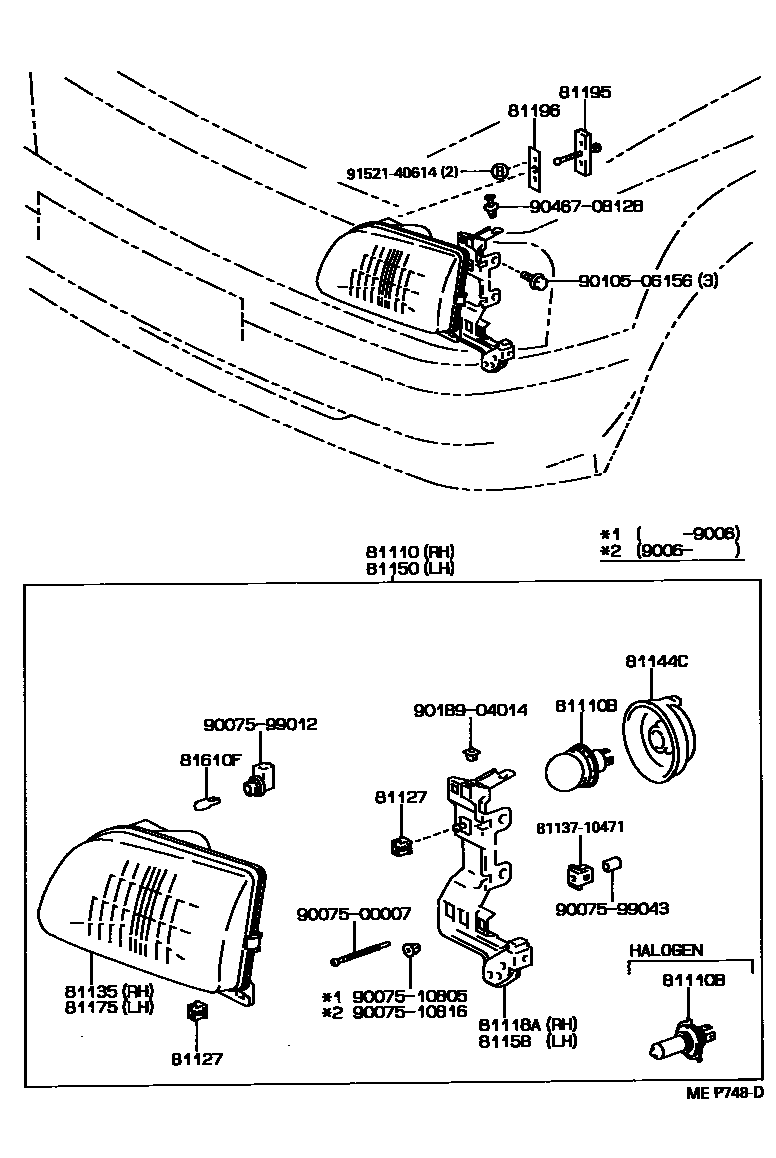

22 parts on this diagram · 3 diagrams in section
