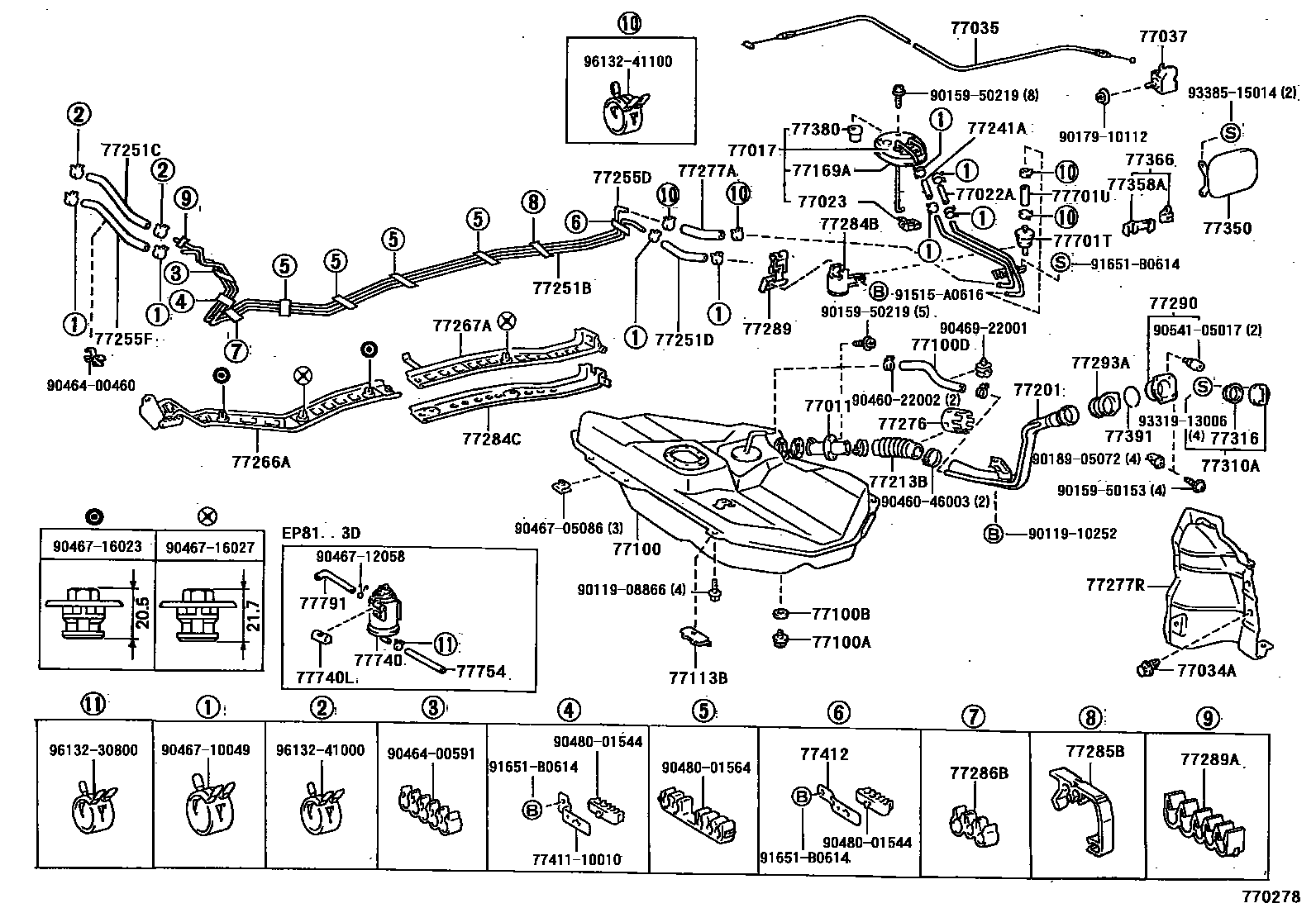

FUEL TANK & TUBE

0001 1 0002 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iEP8#¥2,410198912-199601

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-10080iEP80..LHD..S¥11,400198912-199010

*GIS

sub77017-10081¥9,300

main77017-10080iEP80..STD,XL¥11,400198912-199010

*GIS & W(COMBINATION METER)

sub77017-10081¥9,300

main77017-10081iEP80..STD,XL¥9,300199010-199201

*GIS

sub77017-10201¥9,400

main77017-10081iEP80..LHD..S¥9,300199010-199201

*GIS & W(COMBINATION METER)

sub77017-10201¥9,400

main77017-10090iEP81..XL¥11,400198912-199010

*GIS & W(COMBINATION METER)

sub77017-10091¥10,500

main77017-10090iEP81..XL¥11,400198912-199010

*GIS

sub77017-10091¥10,500

main77017-10091iEP81..XL¥10,500199010-199201

*GIS

main77017-10091iEP81..XL¥10,500199010-199201

*GIS & W(COMBINATION METER)

main77017-10100iEP81..S¥11,400198912-199010

*GIS

sub77017-10101¥10,500

main77017-10100iEP81..S¥11,400198912-199010

*GIS & W(COMBINATION METER)

sub77017-10101¥10,500

main77017-10101iEP81..S¥10,500199010-199201

*GIS

main77017-10101iEP81..S¥10,500199010-199201

*GIS & W(COMBINATION METER)

main77017-10110iEP80..LHD..S¥11,400198912-199010

W(COMBINATION METER)

sub77017-10111¥9,300

main77017-10111iEP80..LHD..S¥9,300199010-199201

W(COMBINATION METER)

sub77017-10201¥9,400

main77017-10120iEP80..S¥11,400198912-199010

W(COMBINATION METER)

sub77017-10121¥9,400

main77017-10121iEP80..XL¥9,400199010-199201

W(COMBINATION METER)

sub77017-10201¥9,400

main77017-10160iEP81..XL¥13,300198912-199010

W(COMBINATION METER)

sub77017-10161¥10,600

main77017-10161iEP81..XL¥10,600199010-199201

W(COMBINATION METER)

main77017-10161iEP81..S¥10,600199010

main77017-10180iEP81..5D..S¥11,400198912-199010

W(COMBINATION METER)

sub77017-10181¥10,500

main77017-10181iEP80,81..STD,XL¥10,500199010-199201

main77017-10181iEP81..5D..S¥10,500199010

W(COMBINATION METER)

main77017-10200iEP80..XL¥11,400198912-199010

*GIS

sub77017-10201¥9,400

main77017-10200iEP80..XL¥11,400198912-199010

*GIS & W(COMBINATION METER)

sub77017-10201¥9,400

main77017-10201iEP80..S¥9,400199010-199201

*GIS

main77017-10201iEP80..S¥9,400199010-199201

*GIS & W(COMBINATION METER)

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06020iEP81..XL¥480198912-199201

*H,L=130,*GIS & W(COMBINATION METER)

sub95337-06020¥570

main95333-06020iEP81..S¥480198912-199201

L=200(*H,L=130),*GIS

sub95337-06020¥570

main95333-06020iEP81..S¥480198912-199201

L=200(*H,L=130),*GIS & W(COMBINATION METER)

sub95337-06020¥570

main95333-06020iEP80,81¥480198912-199601

*H,L=130

sub95337-06020¥570

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iEP80,81¥1,020199201

NIFUKO

main77023-16010iEP80,81¥1,020199201

KYOSAN

77034ACRIP (FOR FUEL TANK FILLER PIPE)

main90467-07109iEP80;EP81..5D;EP81..3D..XL¥170198912

W(MUD GUARD)

main90467-07109iEP81..3D..S¥170198912-199601

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-10050iEP8#..RHD¥2,150198912-199201

CYUHATSU

main77035-10050iEP8#..RHD¥2,150199201

main77035-10060iEP8#..LHD¥1,800198912-199201

CYUHATSU

main77035-10060iEP80,81..LHD¥1,800199201-199601

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-10010iEP8#¥1,350198912

77100TANK ASSY, FUEL

main77001-10320iEP82¥37,800199201-199601

sub77001-10921¥37,800

main77001-10919iEP80,81¥36,000198912

main77001-10920iEP82¥36,000199201-199601

COLD SPEC OR HONG KONG SPEC

sub77001-10921¥37,800

77100APLUG(FOR FUEL TANK)

main90105-12116iEP82¥110199201-199308

COLD SPEC OR HONG KONG SPEC

main90105-12116iEP80,81¥110198912

77100BGASKET(FOR FUEL TANK)

main90430-12245iEP82¥160199201-199308

COLD SPEC OR HONG KONG SPEC

main90430-12245iEP80,81¥160198912

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main95311-13028iEP8#¥740199008

L=280

77113BPLATE, FUEL TANK SIDE

main77113-10020iEP8#¥480199201

77169AGASKET, FUEL SUCTION TUBE SET

main77169-10020iEP8#¥1,290198912-199010

main77169-16030iEP80,81¥520199010

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10150iEP80..RHD¥12,200199203-199404

SINGAPORE SPEC

main77201-10150iEP82¥12,200199201-199601

HONG KONG SPEC

main77201-10180iEP8#¥10,500199008

main77201-10190iEP8#¥10,500199008-199201

*GIS

main77201-10190iEP82¥10,500199201-199601

COLD SPEC

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-10070iEP8#¥4,430199008

L=292

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-06020iEP80,81¥480198912-199305

L=200(*H,L=110)

sub95337-06020¥570

77251BTUBE, FUEL MAIN

main77251-10220iEP82¥3,790199201-199601

main77251-10230iEP80,81..RHD¥2,860198912

main77251-10240iEP81..LHD¥4,480198912-199601

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main77259-10030iEP80,81¥520199002-199202

L=130

sub77259-10060¥520

main77259-10060iEP80,81¥520199202

L=130

main95333-06020iEP8#¥480198912-199002

L=200(*H,L=130)

sub95337-06020¥570

main95333-06020iEP80,81..RHD¥480198912-199212

L=200(*H,L=150)

sub95337-06020¥570

main95334-06015iEP80,81..RHD¥200199212

L=200(*H,L=150)

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-06020iEP80,81..LHD¥480198912-199601

L=200(*H,L=160)

sub95337-06020¥570

77255DTUBE, FUEL RETURN

main77255-10190iEP82¥2,940199201-199601

main77255-10200iEP81..RHD¥2,730198912-199201

main77255-10210iEP80,81..LHD¥4,480198912-199601

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main90445-12247iEP82¥700199201-199601

L=400

main95333-04010iEP81¥140198912-199305

L=100

main95334-04010iEP80,81¥200199305

L=100

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEP8#¥1,820198912

main77266-10040iEP80;EP81..5D;EP81..3D..XL¥1,280198912

SEVERE USAGE PACKAGE

77267APROTECTOR, FUEL TUBE, NO.2

main77267-10050iEP8#¥1,610198912

main77267-10060iEP80;EP81..5D;EP81..3D..XL¥1,610198912

SEVERE USAGE PACKAGE

77276PROTECTOR, FUEL HOSE

main77276-10020iEP8#¥740199008

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main77279-10010iEP80,81¥550199002-199308

sub95334-04013¥200

main77279-10020iEP82¥550199201-199202

L=200

sub95333-06020¥480

main77279-10050iEP82¥550199202-199308

L=130

sub95333-06020¥480

main77279-10060iEP82¥540199308-199601

L=125

main77279-10070iEP80,81¥550199308

L=125

main95333-04020iEP81¥510198912-199002

L=200(*H,L=130)

main95333-04040iEP80,81¥670198912-199201

L=400(*H,L=380)

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-10030iEP8#¥1,410198912-199602

main77277-10030iEP81¥1,410199602

W(MUD GUAD)

main77277-10040iEP81¥1,810199602

77284BPROTECTOR, FUEL TUBE, NO.3

main77284-10020iEP80;EP81..3D..XL;EP81..RHD..5D;EP81..LHD..5F¥3,130199201

SEVERE USAGE PACKAGE

main77284-32020iEP80,81¥720198912

77284CPROTECTOR, FUEL TUBE, NO.3

main77284-10020iEP80;EP81..5D;EP81..3D..XL¥3,130198912

SEVERE USAGE PACKAGE

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-10010iEP8#¥470198912

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77286-10010iEP81..RHD¥210198912-199201

main77286-10020iEP82¥220199201-199601

77289HOLDER, FUEL TANK PIPE SETTING

main77289-10011iEP80,81¥380198912

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10020iEP80,81..LHD¥250198912-199601

main77289-10030iEP82¥240199201-199601

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-10010iEP82;EP81..3D..S¥2,290198912-199601

main77290-10010iEP80;EP81..5D;EP81..3D..XL¥2,290198912

W(BACK DOOR OPENER)

main77290-10020iEP80;EP81..5D;EP81..3D..XL¥2,590198912

sub77290-10010¥2,290

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-10010iEP80;EP81..5D;EP81..3D..XL¥2,090198912

main77293-10020iEP82;EP81..3D..S¥2,090198912-199601

main77293-10020iEP80;EP81..5D;EP81..3D..XL¥2,090198912

W(BACK DOOR OPENER)

77310ACAP ASSY, FUEL TANK

main77310-12100iEP8#¥2,320198912-199008

main77310-16011iEP8#¥2,790199008

sub77310-12140¥2,790

77316GASKET, FUEL TANK CAP

main77316-12050iEP8#¥310198912-199008

main77316-16010iEP8#¥660199008

77350LID ASSY, FUEL FILLER OPENING

main77350-10050iEP82;EP81..3D..S¥3,100198912-199601

main77350-10050iEP80;EP81..5D;EP81..3D..XL¥3,100198912

W(BACK DOOR OPENER)

main77350-10060iEP80;EP81..5D;EP81..3D..XL¥2,640198912

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-10040iEP80;EP81..5D;EP81..3D..XL¥140199007-199008

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-10020iEP8#¥260198912

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iEP8#¥1,240198912-199010

main77380-26010iEP8#¥780199010

77391RING, FUEL INLET BOX

main77391-32010iEP8#¥160198912

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEP8#¥740198912-199601

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10069iEP8#¥1,340198912-199105

sub90917-10082¥1,350

main90917-10082iEP80,81¥1,350199105

77701UHOSE, FUEL (FOR CHECK VALVE)

main77249-10080iEP81¥580198912-199201

77740CANISTER ASSY, CHARCOAL

main77704-10140iEP81..3D¥13,200199101-199209

main77704-16160iEP82¥8,600199201-199601

77740LCOVER, OUTER VENT CONTROL VALVE

main25838-11050iEP81..3D¥440199201-199209

NEW ZEALAND SPEC

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main95333-08030iEP81..3D¥660199101-199209

*H,L=220

77791HOSE, OUTER VENT VALVE TO CARBURETOR

main77791-10030iEP81..3D¥790199101-199209

7741110010PROTECTOR, FUEL INLET BOX

main77411-10010¥270

9011908866

main90119-08866¥390

9011910252

main90119-10252¥220

9015950153

main90159-50153¥100

9015950219

main90159-50219¥70

9017910112

main90179-10112¥130

9018905072

main90189-05072¥140

9046022002

main90460-22002¥530

9046046003

main90460-46003¥310

9046400460

main90464-00460¥120

9046400591

main90464-00591¥300

9046705086

main90467-05086¥260

9046710049

main90467-10049¥140

9046712058

main90467-12058¥90

9046716023

main90467-16023¥260

9046716027

main90467-16027¥260

9046922001

main90469-22001¥180

9048001544

main90480-01544¥350

9048001564

main90480-01564¥350

9054105017

main90541-05017¥200

91515A0616

main91515-A0616¥110

91651B0614

main91651-B0614¥100

9331913006

main93319-13006¥60

9338515014

main93385-15014¥110

9613230800

main96132-30800¥200

9613241000

main96132-41000¥80

9613241100

main96132-41100¥160

75 parts on this diagram · 2 diagrams in section
