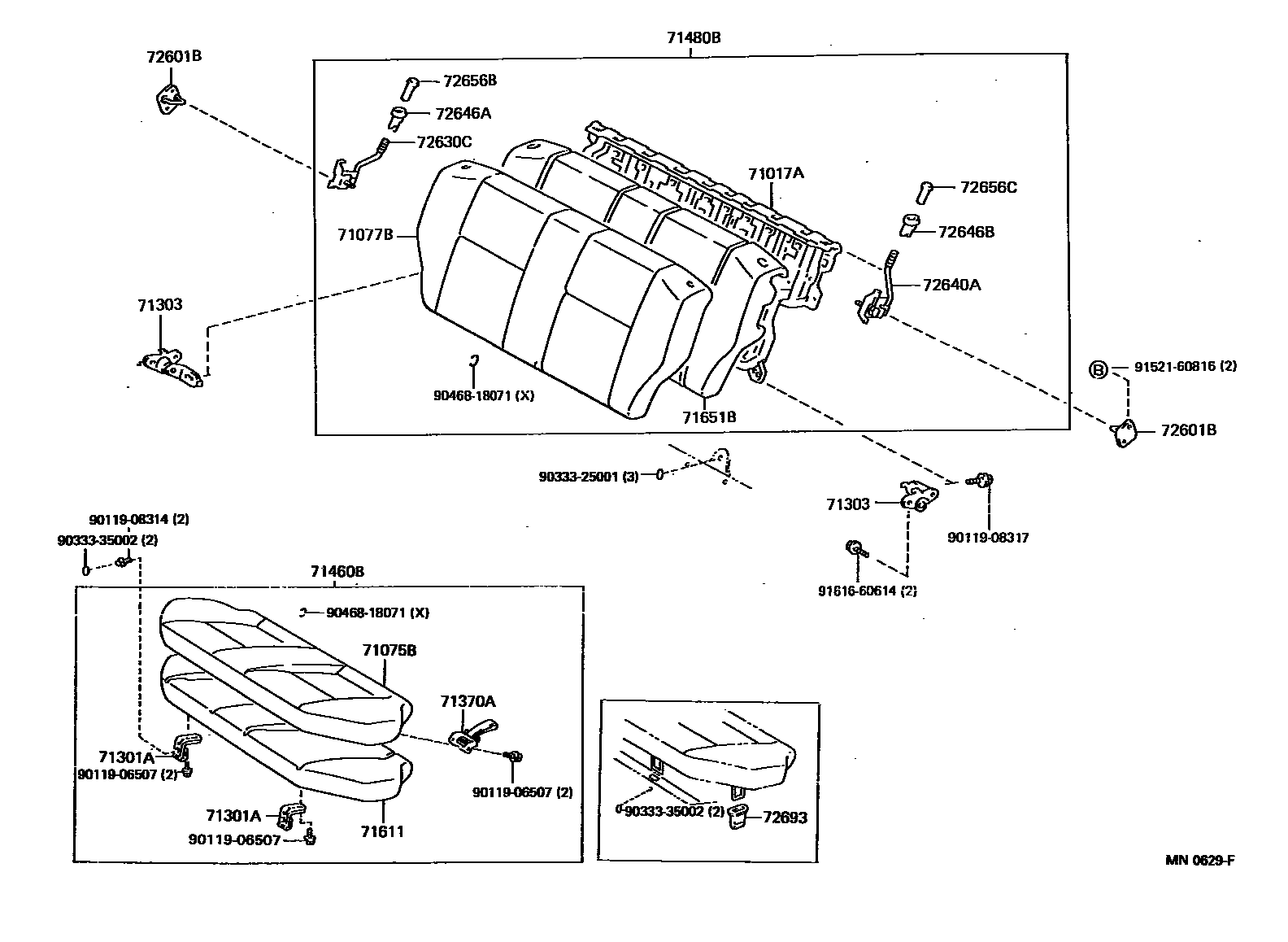

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-10080iEP82..CAN;EP80,81..S,XL¥10,600198912

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-10070iEP80,81..STD,XL;EP82..S,SOL,SOLL¥20,900198912-199201

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-10160-03iEP8#..XL198912-199201

W(FULL FABRIC SEAT),GRAY,TRIM1#

main71065-10160-04iEP8#..XL198912-199201

W(FULL FABRIC SEAT),BLUE,TRIM8#

main71065-10200-03iEP81..3D..S198912-199201

NEW ZEALAND SPEC,GRAY,TRIM1#

main71065-10200-04iEP81..3D..S198912-199201

NEW ZEALAND SPEC,BLUE,TRIM1#

main71065-10200-B0iEP81..S199201-199212

GRAY,TRIM1#

main71065-10200-C0iEP81..5D..S199212-199405

BLACK,TRIM1#

main71065-10260-03iEP8#..STD,XL198912-199201

GRAY,TRIM1#

main71065-10260-B0iEP80,81..STD,XL199201-199601

GRAY,TRIM1#

main71065-10270-B0iEP82..SOL199201-199405

GRAY,TRIM1#

main71065-10280-03iEP81..RHD..5D;EP80..RHD..5D..XL198912-199201

INDONESIA SPEC,GRAY,TRIM1#

main71065-10300-03iEP8#..S198912-199201

GRAY,TRIM1#

main71065-10300-04iEP8#..S198912-199201

BLUE,TRIM8#

main71065-10340-B0iEP82..SOL199201-199405

W(FOLD DOWN, REAR SEAT),GRAY,TRIM1#

main71065-10350-B0iEP82..SOLL199201-199405

GRAY,TRIM1#

main71065-10350-E0iEP82..SOLL199201-199405

OAK,TRIM4#

main71065-10360-B0iEP82..3D199204-199405

GRAY,TRIM1#

main71065-10370-B0iEP80,81..S,XL199201-199405

W(FABRIC SEAT, TYPE B),GRAY,TRIM1#

main71065-10370-E0iEP80,81..XL199201-199212

W(FABRIC SEAT, TYPE B),OAK,TRIM4#

main71065-10430-B0iEP80,81..XL199201-199212

W(FABRIC SEAT, TYPE A),GRAY,TRIM1#

main71065-10430-B0iEP80,81..XL199212-199405

GRAY,TRIM1#

main71065-10430-E0iEP80,81..XL199201-199212

W(FABRIC SEAT, TYPE A),OAK,TRIM4#

main71065-10440-B0iEP81..3D..S199201-199212

NEW ZEALAND SPEC,GRAY,TRIM1#

main71065-10440-C0iEP81..3D..S199301-199405

NEW ZEALAND SPEC,BLACK,TRIM1#

main71065-10440-C0iEP81..3D..S199212-199301

BLACK,TRIM1#

main71065-10530-B0iEP82..SOL199405-199601

GRAY,TRIM1#

main71065-10540-B0iEP82..SOL199405-199601

W(FOLD DOWN, REAR SEAT),GRAY,TRIM1#

main71065-10550-B0iEP82..SOLL199405-199601

GRAY,TRIM1#

main71065-10560-B0iEP82..S199405-199601

GRAY,TRIM1#

sub71065-10561¥38,300

main71065-10570-B0iEP80,81..5D..(S,XL)199405

W(FABRIC SEAT, TYPE B),GRAY,TRIM1#

main71065-10650-B0iEP80,81..XL199405-199706

GRAY,TRIM1#

sub71065-10651

main71065-10651-B1iEP81..XL199706

GRAY,TRIM1#

main71065-10660-B0iEP81..S199405-199706

GRAY,TRIM1#

sub71065-10661

main71065-10661-B1iEP81..S199706

GRAY,TRIM1#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-1C410-03iEP8#..XL198912-199201

W(FULL FABRIC SEAT),GRAY,TRIM1#

main71077-1C410-04iEP8#..XL198912-199201

W(FULL FABRIC SEAT),BLUE,TRIM8#

main71077-1C430-03iEP8#..STD,XL198912-199201

GRAY,TRIM1#

main71077-1C430-B0iEP80..STD199201-199601

GRAY,TRIM1#

main71077-1C480-03iEP80..RHD..5D..XL198912-199201

INDONESIA SPEC,GRAY,TRIM1#

main71077-1C520-03iEP8#..5D..S198912-199201

GRAY,TRIM1#

main71077-1C520-04iEP8#..5D..S198912-199201

BLUE,TRIM8#

main71077-1C550-B0iEP82..SOL199201-199405

GRAY,TRIM1#

main71077-1C560-B0iEP82..SOLL199201-199405

GRAY,TRIM1#

main71077-1C560-E0iEP82..SOLL199201-199405

OAK,TRIM4#

main71077-1C570-B0iEP82..S199204-199405

GRAY,TRIM1#

main71077-1C610-B0iEP80,81..XL199201-199212

W(FABRIC SEAT, TYPE C),GRAY,TRIM1#

main71077-1C610-B0iEP80,81..XL199212-199405

GRAY,TRIM1#

main71077-1C610-E0iEP80,81..XL199201-199212

W(FABRIC SEAT, TYPE C),OAK,TRIM4#

main71077-1C700-B0iEP82..SOL199405-199601

GRAY,TRIM1#

main71077-1C710-B0iEP82..SOLL199405-199601

GRAY,TRIM1#

main71077-1C720-B0iEP82..S199405-199601

GRAY,TRIM1#

sub71077-1C721¥40,300

main71077-1C750-B0iEP80,81..XL199405-199706

GRAY,TRIM1#

sub71077-1C751

main71077-1C751iEP81..XL199706

71301AHINGE SUB-ASSY, REAR SEAT CUSHION

main71301-10080iEP82..SOL¥1,180199201-199601

LH

main71301-10090iEP82..SOL¥1,180199201-199601

RH

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-10030iEP8#¥2,500198912

71370AHOLDER ASSY, REAR SEAT CUSHION

main71370-10010-03iEP82..SOL199201-199601

GRAY,TRIM1#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-10180-03iEP81..3D..S198912-199201

***,NEW ZEALAND SPEC,GRAY,TRIM1#

main71560-10180-04iEP81..3D..S198912-199201

***,NEW ZEALAND SPEC,BLUE,TRIM8#

main71560-10180-B0iEP81..S199201-199212

***,GRAY,TRIM1#

main71560-10180-C0iEP81..5D..S199212-199405

***,BLACK,TRIM1#

main71560-10210-03iEP8#..S198912-199201

***,GRAY,TRIM1#

main71560-10210-04iEP8#..S198912-199201

***,BLUE,TRIM8#

main71560-10270-03iEP8#..STD,XL198912-199201

***,GRAY,TRIM1#

main71560-10270-B0iEP80..STD199201-199601

***,GRAY,TRIM1#

main71560-10280-03iEP8#..XL198912-199201

***,W(FULL FABRIC SEAT),GRAY,TRIM1#

main71560-10280-04iEP8#..XL198912-199201

***,W(FULL FABRIC SEAT),BLUE,TRIM8#

main71560-10290-B0iEP82..SOL199201-199405

***,GRAY,TRIM1#

main71560-10300-B0iEP82..SOL199201-199405

***,W(FOLD DOWN, REAR SEAT),GRAY,TRIM1#

main71560-10310-B0iEP82..SOLL199201-199405

***,GRAY,TRIM1#

main71560-10310-E0iEP82..SOLL199201-199405

***,OAK,TRIM4#

main71560-10320-B0iEP82..3D199204-199405

***,GRAY,TRIM1#

main71560-10360-B0iEP80,81..5D..(S,XL)199201-199405

***,W(FABRIC SEAT, TYPE B),GRAY,TRIM1#

main71560-10360-E0iEP80,81..XL199201-199212

***,W(FABRIC SEAT, TYPE B),OAK,TRIM4#

main71560-10420-B0iEP80,81..XL199201-199212

***,W(FABRIC SEAT, TYPE A),GRAY,TRIM1#

main71560-10420-B0iEP80,81..XL199212-199405

***,GRAY,TRIM1#

main71560-10420-E0iEP80,81..XL199201-199212

***,W(FABRIC SEAT, TYPE A),OAK,TRIM4#

main71560-10430-B0iEP81..3D..S199201-199212

***,NEW ZEALAND SPEC,GRAY,TRIM1#

main71560-10430-C0iEP81..3D..S199212-199301

***,BLACK,TRIM1#

main71560-10430-C0iEP81..3D..S199301-199405

***,NEW ZEALAND SPEC,BLACK,TRIM1#

main71560-10480-B0iEP82..SOL199405-199601

***,GRAY,TRIM1#

main71560-10490-B0iEP82..SOL199405-199601

***,W(FOLD DOWN, REAR SEAT),GRAY,TRIM1#

main71560-10500-B0iEP82..SOLL199405-199601

***,GRAY,TRIM1#

main71560-10510-B0iEP82..S199405-199601

***,GRAY,TRIM1#

main71560-10520-B0iEP80,81..5D..(S,XL)199405

***,W(FABRIC SEAT, TYPE B),GRAY,TRIM1#

main71560-10600-B0iEP80,81..XL199405

***,GRAY,TRIM1#

main71560-10610-B0iEP81..S199405

***,GRAY,TRIM1#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-1C460-03iEP8#..STD,XL198912-199201

***,GRAY,TRIM1#

main71480-1C460-B0iEP80,81..STD,XL199201-199601

***,GRAY,TRIM1#

main71480-1C480-03iEP8#..XL198912-199201

***,W(FULL FABRIC SEAT),GRAY,TRIM1#

main71480-1C480-04iEP8#..XL198912-199201

***,W(FULL FABRIC SEAT),BLUE,TRIM8#

main71480-1C490-03iEP8#..5D..S198912-199201

***,GRAY,TRIM1#

main71480-1C490-04iEP8#..5D..S198912-199201

***,BLUE,TRIM8#

main71480-1C510-B0iEP82..SOL199201-199405

***,GRAY,TRIM1#

main71480-1C520-B0iEP82..SOLL199201-199405

***,GRAY,TRIM1#

main71480-1C520-E0iEP82..SOLL199201-199405

***,OAK,TRIM4#

main71480-1C530-B0iEP82..S199204-199405

***,GRAY,TRIM1#

main71480-1C540-B0iEP80,81..XL199201-199212

***,W(FABRIC SEAT, TYPE C),GRAY,TRIM1#

main71480-1C540-B0iEP80,81..XL199212-199405

***,GRAY,TRIM1#

main71480-1C540-E0iEP80,81..XL199201-199212

***,W(FABRIC SEAT, TYPE C),OAK,TRIM4#

main71480-1C650-B0iEP82..SOL199405-199601

***,GRAY,TRIM1#

main71480-1C660-B0iEP82..SOLL199405-199601

***,GRAY,TRIM1#

main71480-1C670-B0iEP82..S199405-199601

***,GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-10020iEP8#¥21,700198912

main71503-10030iEP82..SOL¥28,900199201-199601

W(SPILIT TYPE REAR SEAT)

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-10210iEP80,81..STD,XL;EP82..S,SOL,SOLL¥22,400198912-199201

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-10060iEP8#¥1,130198912

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-10080iEP8#¥2,240198912

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-10070iEP8#¥2,240198912

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-10010-03iEP8#198912

GRAY,TRIM1#

sub72646-10010¥620

main72646-10010-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub72646-10010¥620

main72646-10010-E0iEP8#..SOLL,XL199201-199405

OAK,TRIM4#

sub72646-10010¥620

72646BGROMMET, REAR SEATBACK STOP BUTTON

main72646-10010-03iEP8#198912

GRAY,TRIM1#

sub72646-10010¥620

main72646-10010-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub72646-10010¥620

main72646-10010-E0iEP8#..SOLL,XL199201-199405

OAK,TRIM4#

sub72646-10010¥620

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010iEP80,82;EP81..XL;EP81..3D..S¥810199408

main72656-20010-03iEP81..5D..S199201-199408

GRAY,TRIM1#

sub72656-20010¥810

main72656-20010-23iEP8#198912-199201

GRAY,TRIM1#

sub72656-20010¥810

main72656-20010-47iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub72656-20010¥810

main72656-20010-E1iEP82..SOLL199201-199405

OAK,TRIM4#

sub72656-20010¥810

72656CBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010iEP80,82;EP81..XL;EP81..3D..S¥810199408

main72656-20010-03iEP8#199201-199408

GRAY,TRIM1#

sub72656-20010¥810

main72656-20010-23iEP8#198912-199201

GRAY,TRIM1#

sub72656-20010¥810

main72656-20010-47iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub72656-20010¥810

main72656-20010-E1iEP82..SOLL199201-199405

OAK,TRIM4#

sub72656-20010¥810

72693HOOK, REAR SEAT CUSHION LOCK

main72693-10010iEP8#¥660198912

9011906507

main90119-06507¥120

9011908314

main90119-08314¥330

9011908317

main90119-08317¥140

9033325001

main90333-25001¥140

9033335002

main90333-35002¥80

9046818071

main90468-18071¥160

9152160816

main91521-60816¥120

9161660614

main91616-60614¥120

27 parts on this diagram · 3 diagrams in section
