BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12050iEP80,81..LHD198912-199601

main64606-12060iEP8#..RHD198912

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034iEP8#198912

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-10100iEP8#..RHD198912

main64607-10130iEP8#..LHD198912-199201

CYUHATSU

main64607-10130iEP80,81..LHD199201-199601

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iEP80..RHD;EP81..3D..XL;EP81..RHD..5D198912-199201

W(PRE AIR CLEANER & *RW)

main69749-12010iEP80,81..LHD198912-199601

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-10030iEP8#198912

68961BOLT, BACK DOOR STAY

main68961-10030iEP8#198912

68970STAY ASSY, BACK DOOR, RH

main68950-19695iEP80,81198912-199712

main68950-19705iEP80,81198912

W(REAR WINDOW WIPER)

main68950-19715iEP82..5D199201-199601

main68950-19725iEP82..5D199201-199601

W(HIMOUNT STOP LAMP & REAR WINDOW WIPER)

main68950-19725iEP82..3D199204-199601

68980STAY ASSY, BACK DOOR

main68960-19385iEP80,81198912-199712

main68960-19395iEP80,81198912

W(REAR WINDOW WIPER)

main68960-19405iEP82..5D199201-199601

main68960-19415iEP82..5D199201-199601

W(HIMOUNT STOP LAMP & REAR WINDOW WIPER)

main68960-19415iEP82..3D199204-199601

69215HANDLE, BACK DOOR OUTSIDE

main69209-10010iEP80,81199201

69350LOCK ASSY, BACK DOOR

main69350-10110iEP8#198912

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-10060iEP80;EP81..5D;EP81..3D..XL198912

sub69430-10070

main69430-10070iEP82;EP81..3D..S198912-199601

main69430-10070iEP80;EP81..5D;EP81..3D..XL198912

W(BACK DOOR OPENER)

7701

8271110420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10420

9010506184

main90105-06184

9011906120

main90119-06120

9011906417

main90119-06417

9015760017

main90157-60017

9015980022

main90159-80022

9017910161

main90179-10161

9046901002

main90469-01002

9095901433

main90959-01433

9165140816

main91651-40816

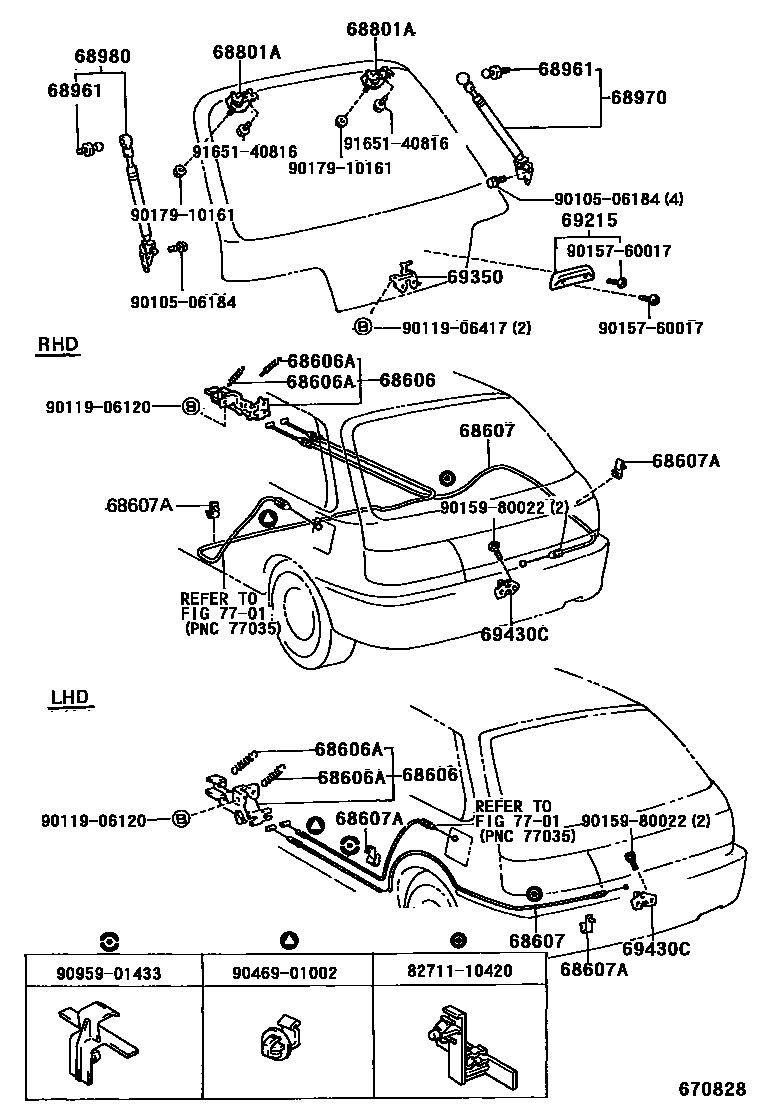

22 parts on this diagram · 1 diagram in section
