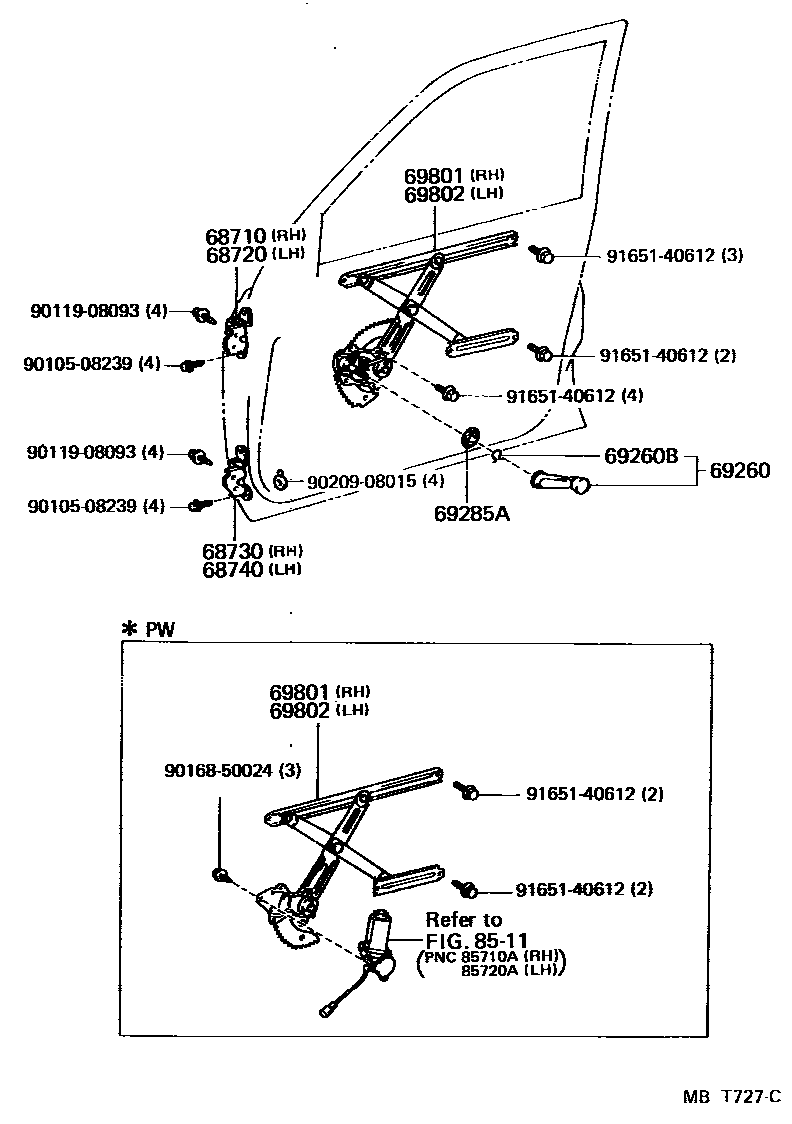

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-10030iEP8#198912

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-10030iEP8#198912

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-10030iEP8#198912

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-10030iEP8#198912

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-07×2iEP8#..S,XL198912-199201

DARK BLUE,TRIM8#

sub69260-16010

main69260-10040-43×2iEP8#..S,SOL,SOLL,STD,XL198912

GRAY,TRIM1#

sub69260-16010

main69260-10040-E1×2iEP8#..SOLL,XL199201-199212

OAK,TRIM4#

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iEP8#198912-199201

main90520-01274×2iEP8#..S,SOL,SOLL,STD,XL199201

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08×2iEP8#..5D..S198912-199201

NATURAL WHITE,TRIM1#,8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-10040iEP8#..5D..(S,SOLL,XL)199201

W(POWER WINDOW)

main69801-10050iEP82..CAN199204-199405

main69810-10080iEP8#..S,SOL,SOLL,STD,XL198912

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-10040iEP8#..5D..(S,SOLL,XL)199201

W(POWER WINDOW)

main69802-10050iEP82..CAN199204-199405

main69820-10090iEP8#..S,SOL,SOLL,STD,XL198912

8511

9010508239

main90105-08239

9011908093

main90119-08093

9016850024

main90168-50024

9020908015

main90209-08015

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
