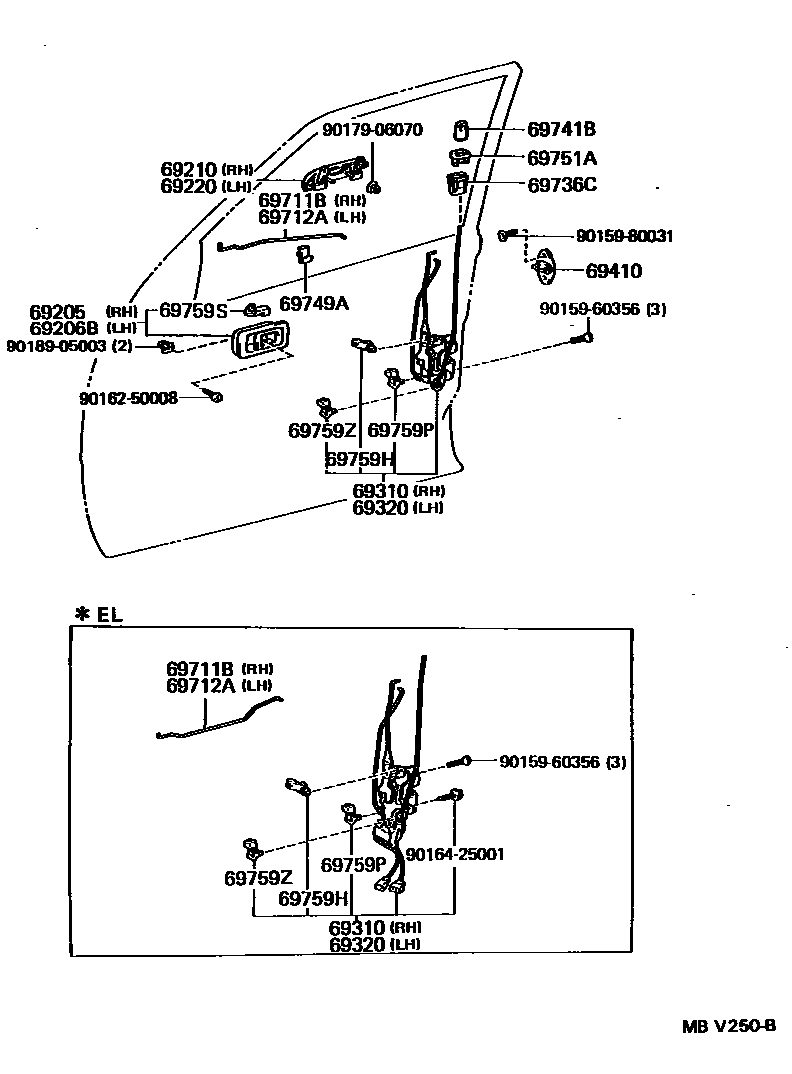

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10070-03iEP8#198912

GRAY,TRIM1#

sub69205-10070

main69205-10070-04iEP8#..S,XL198912-199201

DARK BLUE,TRIM8#

sub69205-10070

main69205-10070-E0iEP82..SOLL199201-199405

OAK,TRIM4#

sub69205-10070

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10070-03iEP8#198912

GRAY,TRIM1#

sub69206-10070

main69206-10070-04iEP8#..S,XL198912-199201

DARK BLUE,TRIM8#

sub69206-10070

main69206-10070-E0iEP82..SOLL199201-199405

OAK,TRIM4#

sub69206-10070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-10050iEP8#198912

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-10050iEP8#198912

69310LOCK ASSY, FRONT DOOR, RH

main69030-10050iEP8#..5D..(S,XL)198912-199201

W(POWER DOOR LOCK)

main69030-10060iEP8#..3D..(S,XL)198912-199201

W(POWER DOOR LOCK)

main69030-10070iEP82..SOLL199201-199601

W(POWER WINDOW)

main69030-10080iEP80,81..5D..(S,XL)199201

W(POWER DOOR LOCK)

main69030-10090iEP82..S199204-199601

W(POWER WINDOW)

main69030-10090iEP82..CAN199204-199405

main69030-10100iEP80,81..3D..5F199201-199601

W(POWER DOOR LOCK)

main69310-10150iEP8#..5D198912-199201

main69310-10160iEP8#..3D198912-199201

main69310-10170iEP82..5D199201-199601

main69310-10180iEP80,81..5D199201

main69310-10190iEP82..S199204-199601

main69310-10200iEP80,81..3D199201-199601

69320LOCK ASSY, FRONT DOOR, LH

main69040-10050iEP8#..5D..(S,XL)198912-199201

W(POWER DOOR LOCK)

main69040-10060iEP8#..3D..(S,XL)198912-199201

W(POWER DOOR LOCK)

main69040-10070iEP82..SOLL199201-199601

W(POWER WINDOW)

main69040-10080iEP80,81..5D..(S,XL)199201

W(POWER DOOR LOCK)

main69040-10090iEP82..CAN199204-199405

main69040-10090iEP82..S199204-199601

W(POWER WINDOW)

main69040-10100iEP80,81..3D..5F199201-199601

W(POWER DOOR LOCK)

main69320-10150iEP8#..5D198912-199201

main69320-10160iEP8#..3D198912-199201

main69320-10170iEP82..5D199201-199601

main69320-10180iEP80,81..5D199201

main69320-10190iEP82..S199204-199601

main69320-10200iEP80,81..3D199201-199601

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iEP8#199010

main69410-87001iEP8#198912-199010

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-10050iEP8#..5D198912

main69711-10060iEP8#..3D198912-199601

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-10060iEP8#..5D198912

main69712-10070iEP8#..3D198912-199601

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-10040iEP8#..CAN,S,SOLL,XL198912-199201

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-10030-03iEP8#199010

GRAY,TRIM1#

sub69741-12040

main69741-10030-E0iEP8#..SOLL,XL199201-199405

OAK,TRIM4#

sub69741-12040

main69741-10040-04iEP8#..S,XL199010-199201

BLUE,TRIM8#,PAINTED WHITE

sub69741-10030

main69741-90K00-43iEP8#198912-199010

GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-54iEP8#..S,XL198912-199010

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iEP8#..3D198912-199601

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-12020iEP8#..SOL,STD,XL199505

sub69751-20031

main69751-12020-03iEP80..RHD;EP80..LHD..5D;EP81,82..SOL,XL198912-199505

SHADOW GRAY,TRIM1#

sub69751-20031

sub69751-12020

main69751-12020-14iEP8#..3D..XL198912-199201

DARK BLUE,TRIM8#

sub69751-20031

sub69751-12020

main69751-12020-E0iEP80,81..XL199201-199212

OAK,TRIM4#

sub69751-20031

sub69751-12020

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iEP8#198912

LH

main69759-20050iEP8#198912

RH

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20100iEP8#198912

RH

main69759-20110iEP8#198912

LH

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iEP8#198912

GRAY

main69759-20070iEP8#198912

GREEN

69759ZSNAP, DOOR LOCK CONTROL LINK

main69759-24010iEP8#198912

RH

main69759-24020iEP8#198912

LH

9015960356

main90159-60356

9015980031

main90159-80031

9016250008

main90162-50008

9016425001

main90164-25001

9017906070

main90179-06070

9018905003

main90189-05003

23 parts on this diagram · 1 diagram in section
