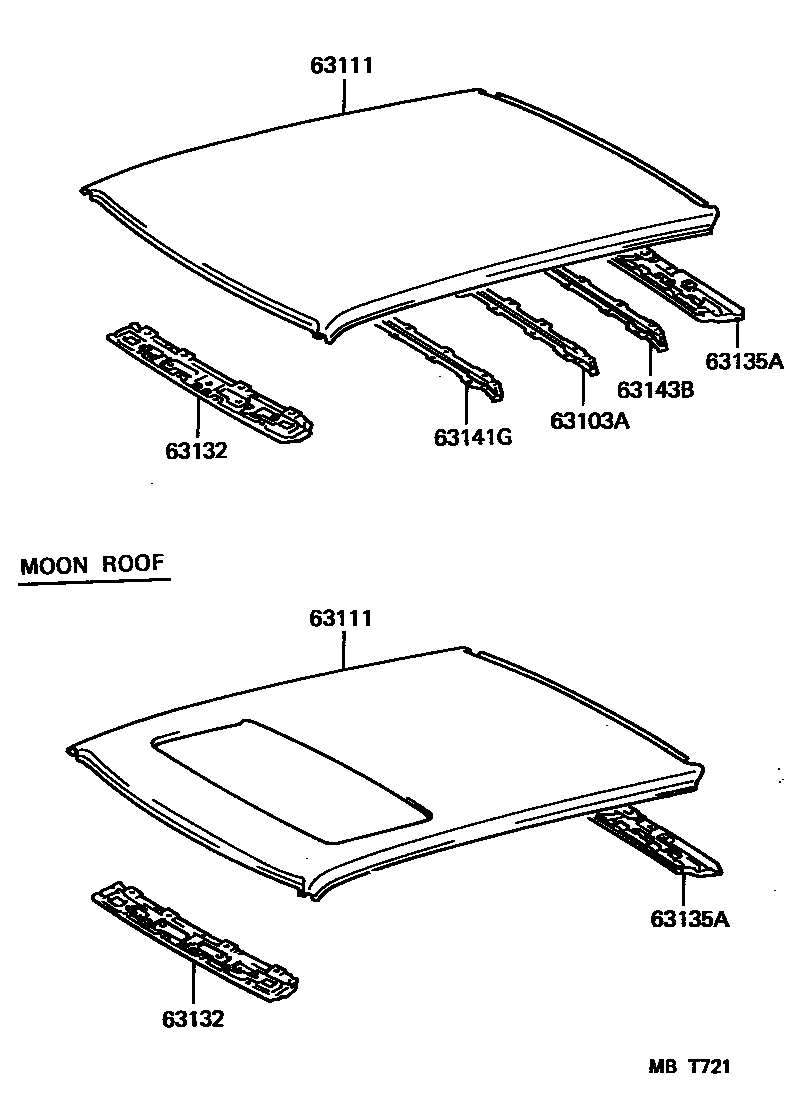

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-10020iEP8#..S,SOL,SOLL,STD,XL198912

63111PANEL, ROOF

main63111-10100iEP8#..S,SOL,SOLL,STD,XL198912

main63111-10140iEP82..CAN199204-199405

main63111-10900iEP8#..S,XL198912-199405

W(MOON ROOF)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-10090iEP8#198912

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-10030iEP8#198912

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-10060iEP8#..S,SOL,SOLL,STD,XL198912

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-10020iEP8#..S,SOL,SOLL,STD,XL198912

6 parts on this diagram · 4 diagrams in section
