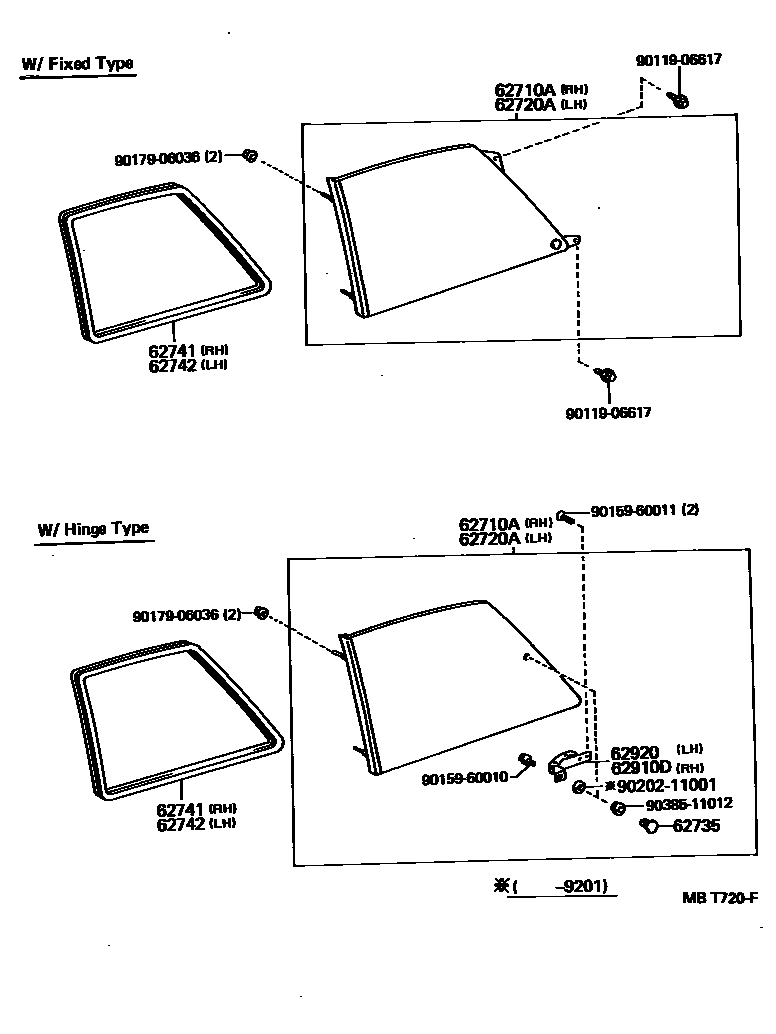

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-10210iEP8#..3D..(CAN,STD,XL)198912-199601

*TEM,T=3.5,CLEAR

sub62710-10220

main62710-10220iEP80,81..3D..(STD,XL)198912-199601

*TT,T=3.5

main62710-10240iEP81,82..3D..S198912-199601

*TEM,T=3.5,CLEAR

sub62710-10250

main62710-10240iEP81,82..3D..S198912-199601

*TEM,T=3.5,CLEAR,W(HINGED QUARTER WINDOW)

sub62710-10250

main62710-10250iEP81..3D..S198912-199601

*TT,T=3.5

main62710-10250iEP81..3D..S198912-199601

*TT,T=3.5,W(HINGED QUARTER WINDOW)

62720AWINDOW ASSY, QUARTER, LH

main62720-10190iEP8#..3D..(CAN,STD,XL)198912-199601

*TEM,T=3.5,CLEAR

sub62720-10200

main62720-10200iEP80,81..3D..(STD,XL)198912-199601

*TT,T=3.5

main62720-10220iEP81,82..3D..S198912-199601

*TEM,T=3.5,CLEAR

sub62720-10230

main62720-10220iEP81,82..3D..S198912-199601

*TEM,T=3.5,CLEAR,W(HINGED QUARTER WINDOW)

sub62720-10230

main62720-10230iEP81..3D..S198912-199601

*TT,T=3.5

main62720-10230iEP81..3D..S198912-199601

*TT,T=3.5,W(HINGED QUARTER WINDOW)

62735RETAINER, QUARTER WINDOW HINGE

main62735-10030iEP8#..3D..(S,STD,XL)198912-199601

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-10090iEP8#..3D198912-199601

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-10090iEP8#..3D198912-199601

62910DLOCK ASSY, QUARTER WINDOW

main62910-10080iEP8#..3D..(S,STD,XL)198912-199601

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-10080iEP8#..3D..(S,STD,XL)198912-199601

9011906617

main90119-06617

9015960010

main90159-60010

9015960011

main90159-60011

9017906036

main90179-06036

9020211001

main90202-11001

9038511012

main90385-11012

13 parts on this diagram · 1 diagram in section
