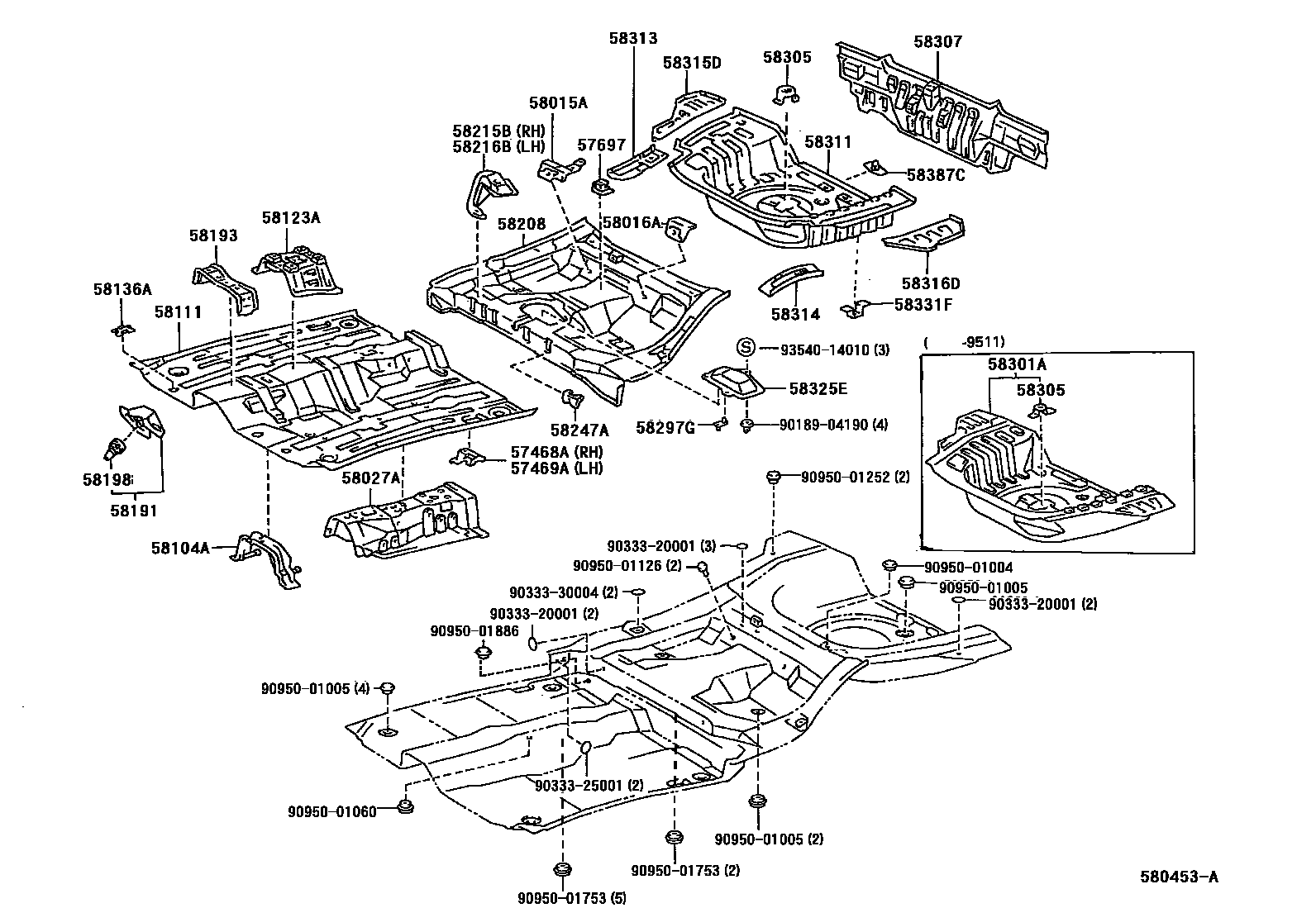

FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57697RETAINER, REAR SEAT CUSHION
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
58136ACOVER, FRONT FLOOR SERVICE HOLE
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
W(FRONT CONSOLE BOX)
58198CLIP, FOOTREST
58215BBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58297GRETAINER, FLOOR CLAMP
58301APANEL SUB-ASSY, REAR FLOOR
sub58311-10192
sub58305-10011
sub58313-16030
sub58314-16090
sub58315-10010
sub58316-10010
sub58331-10011
sub58387-10010
sub90333-25003
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
INDONESIA SPEC
W(FRONT BUMPER TYPE B)
INDONESIA SPEC OR W(FRONT BUMPER TYPE B)
58311PAN, REAR FLOOR
sub58311-10193
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58387CPLATE, REAR FLOOR FINISH
9018904190
main90189-04190
9033320001
main90333-20001
9033325001
main90333-25001
9033330004
main90333-30004
9095001004
main90950-01004
9095001005
main90950-01005
9095001060
main90950-01060
9095001126
main90950-01126
9095001252
main90950-01252
9095001753
main90950-01753
9095001886
main90950-01886
9354014010
main93540-14010
41 parts on this diagram · 1 diagram in section
