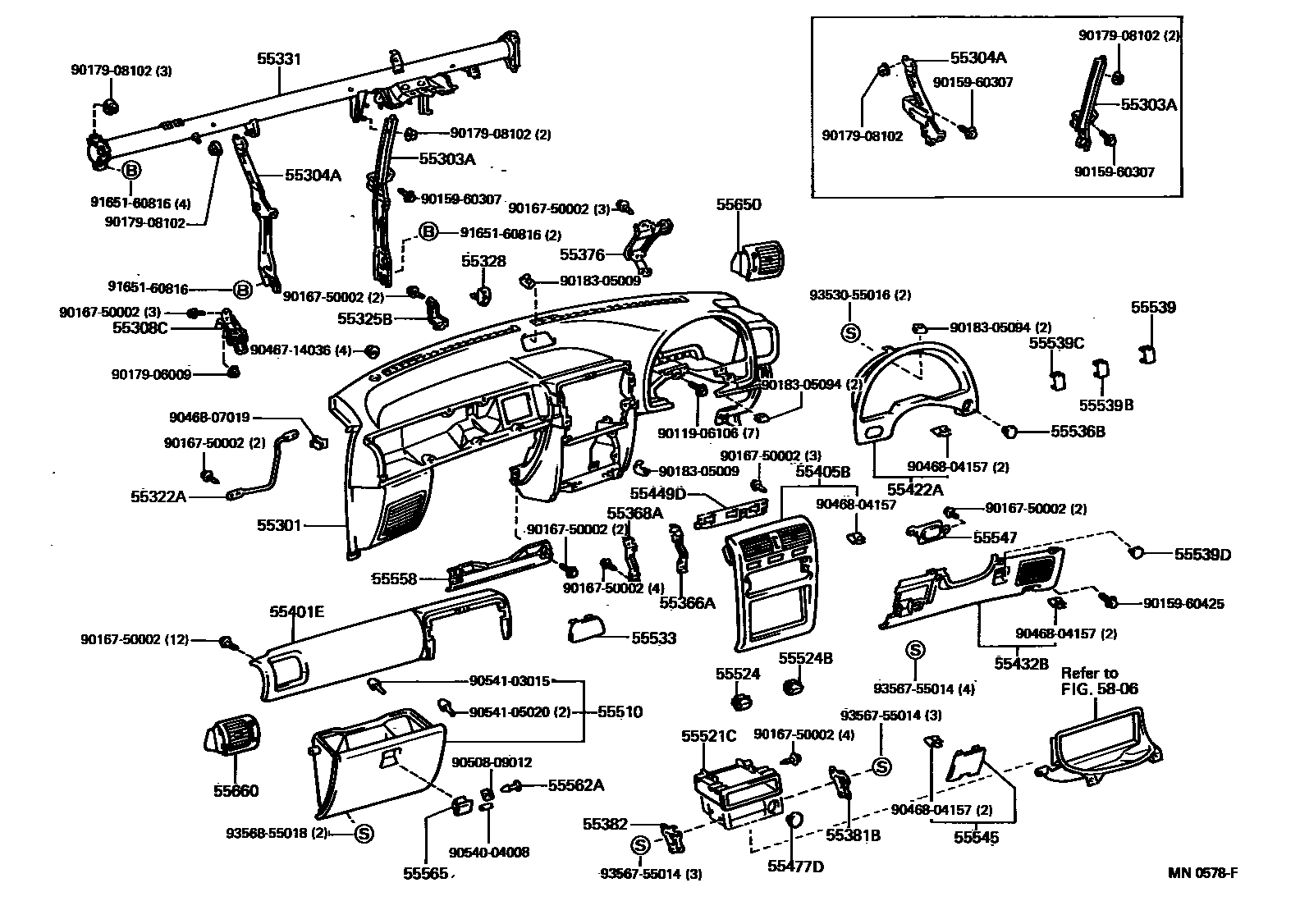

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-10180-03iEP8#..RHD198912

GRAY,TRIM1#

main55311-10180-04iEP8#..RHD..(S,XL)198912-199201

BLUE,TRIM8#

main55311-10180-E0iEP8#..RHD..(SOLL,XL)199201-199405

OAK,TRIM4#

main55311-10190-03iEP80,81..LHD198912-199601

GRAY,TRIM1#

main55311-10190-04iEP8#..LHD..(S,XL)198912-199201

BLUE,TRIM8#

main55311-10190-E0iEP80,81..LHD..XL199201-199212

OAK,TRIM4#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-10090iEP8#..RHD¥1,650198912-199201

main55303-10100iEP80..RHD;EP81..3D..XL;EP81..RHD..5D¥2,440198912-199201

W(FULL CONSOLE BOX OR SEMI CONSOLE BOX)

main55303-10110iEP80,81..LHD¥1,650198912-199601

main55303-10120iEP80,81..LHD¥2,430198912-199601

W(FULL CONSOLE BOX OR SEMI CONSOLE BOX)

main55309-10050iEP82..CAN,S,SOLL¥2,780199201-199601

W(*80 & FULL CONSOLE BOX)

main55309-10050iEP82..CAN,S,SOLL¥2,780199201-199601

W(*80)

55304ASTAY SUB-ASSY, INSTRUMENT PANEL, CENTER

main55304-10050iEP80..RHD;EP81..3D..XL;EP81..RHD..5D¥1,340198912-199201

main55304-10060iEP80..RHD;EP81..3D..XL;EP81..RHD..5D¥1,900198912-199201

W(FULL CONSOLE BOX OR SEMI CONSOLE BOX)

main55304-10070iEP80,81..LHD¥1,340198912-199601

main55304-10080iEP80,81..LHD¥1,890198912-199601

W(FULL CONSOLE BOX OR SEMI CONSOLE BOX)

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-10070iEP8#¥950198912

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-10070iEP8#..RHD¥580198912

main55322-10080iEP80,81..LHD¥550198912-199601

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-10090iEP8#¥660198912

55328PIN, INSTRUMENT PANEL, NO.1

main55328-10030iEP8#¥390198912

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-10080iEP8#..RHD¥14,200198912-199201

sub55330-10110¥16,800

main55330-10090iEP8#..LHD¥14,200198912-199201

sub55330-10120¥16,700

main55330-10100iEP82¥18,000199201-199601

W(*80)

main55330-10110iEP8#..RHD¥16,800199201

main55330-10120iEP80,81..LHD¥16,700199201-199601

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-10030iEP8#¥510198912

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-10030iEP8#¥510198912

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-10020iEP8#..RHD¥1,010198912

main55376-10030iEP80,81..LHD¥1,010198912-199601

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-10050iEP82¥610198912-199601

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-10040iEP8#¥610198912-199601

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-10230-03iEP8#..RHD198912

GRAY,TRIM1#

main55401-10230-04iEP8#..RHD..(S,XL)198912-199201

BLUE,TRIM8#

main55401-10230-E0iEP82..SOLL199201-199405

OAK,TRIM4#

main55401-10240-03iEP80,81..LHD198912-199601

GRAY,TRIM1#

main55401-10240-04iEP8#..LHD..(S,XL)198912-199201

BLUE,TRIM8#

main55401-10240-E0iEP80,81..LHD..XL199201-199212

OAK,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-10300iEP8#¥9,900198912

55422APANEL, INSTRUMENT CLUSTER FINISH, LOWER

main55422-10090iEP82..5D;EP80,81..RHD¥5,500198912

main55422-10110iEP80,81..LHD¥5,400198912-199601

main55422-10120iEP82..3D¥5,500199204-199601

sub55422-10090¥5,500

main55422-10120iEP81..5D..S¥5,500199201

INDONESIA SPEC

sub55422-10090¥5,500

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-10040-03iEP82..5D;EP80,81..RHD198912

GRAY,TRIM1#

main55432-10040-04iEP8#..RHD..(S,XL)198912-199201

BLUE,TRIM8#

main55432-10040-E0iEP82..SOLL199201-199405

OAK,TRIM4#

main55432-10050-03iEP82..S199405-199601

GRAY,TRIM1#

main55432-10050-03iEP81..5D..S199201-199212

INDONESIA SPEC,GRAY,TRIM1#

main55432-10060-03iEP80,81..LHD198912-199601

GRAY,TRIM1#

main55432-10060-04iEP8#..LHD..(S,XL)198912-199201

BLUE,TRIM8#

main55432-10060-E0iEP80,81..LHD..XL199201-199212

OAK,TRIM4#

55449DBASE, SWITCH

main55449-10070iEP8#¥1,460198912

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-16050iEP80..STD198912-199601

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-10070-03iEP8#198912

GRAY,TRIM1#

sub55550-10070¥12,800

main55550-10070-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub55550-10070¥12,800

main55550-10070-E0iEP82..SOLL199201-199405

OAK,TRIM4#

sub55550-10070¥12,800

55521CCOVER, STEREO OPENING

main55521-16030iEP8#¥1,580198912

55524COVER, SWITCH BACE HOLE

main55524-10010iEP8#¥640198912

55524BCOVER, SWITCH BASE HOLE

main55524-10010iEP80,81;EP82..SOL¥640198912

55533COVER, AUTO CLOCK HOLE

main55533-10040-03iEP82..SOL;EP80,81..RHD198912

GRAY,TRIM1#

sub55533-10040¥910

main55533-10040-04iEP8#..RHD..(S,XL)198912-199201

BLUE,TRIM8#

sub55533-10040¥910

main55533-10040-E0iEP80,81..RHD..XL199201-199212

OAK,TRIM4#

sub55533-10040¥910

main55533-10050-03iEP80,81..LHD198912-199601

GRAY,TRIM1#

sub55533-10050¥910

main55533-10050-04iEP8#..LHD..(S,XL)198912-199201

BLUE,TRIM8#

sub55533-10050¥910

main55533-10050-E0iEP80,81..LHD..XL199201-199212

OAK,TRIM4#

sub55533-10050¥910

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-10010iEP82;EP81..5D;EP80..LHD..S;EP80..STD,XL;EP81..3D..XL¥270198912

55539COVER, SPARE SWITCH HOLE

main55539-10040-03iEP8#198912-199405

GRAY,TRIM1#

sub55539-12130¥440

sub55539-20080¥440

main55539-10040-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub55539-12130¥440

sub55539-20080¥440

main55539-10040-E0iEP82..SOLL199201-199405

OAK,TRIM4#

sub55539-12130¥440

sub55539-20080¥440

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-10040-03iEP8#198912

GRAY,TRIM1#

sub55539-12130¥440

sub55539-20080¥440

main55539-10040-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub55539-12130¥440

sub55539-20080¥440

main55539-10040-E0iEP82..SOLL199201-199405

OAK,TRIM4#

sub55539-12130¥440

sub55539-20080¥440

55539CCOVER, SPARE SWITCH HOLE

main55539-10040-03iEP8#198912

GRAY,TRIM1#

sub55539-12130¥440

sub55539-20080¥440

main55539-10040-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub55539-12130¥440

sub55539-20080¥440

main55539-10040-E0iEP8#..SOLL,XL199201-199405

OAK,TRIM4#

sub55539-12130¥440

sub55539-20080¥440

55539DCOVER, SPARE SWITCH HOLE

main55617-10010-11iEP81..3D199101-199201

BLACK,TRIM1#,8#

sub55617-10010¥320

main55617-10010-23iEP8#..SOLL,XL199201-199405

GRAY,TRIM1#

sub55617-10010¥320

main55617-10010-23iEP8#..SOLL,XL199201-199405

GRAY,TRIM1#,4#

sub55617-10010¥320

55545COVER, FUSE BOX OPENING

main55545-10080-03iEP8#198912-199201

GRAY,TRIM1#

sub55545-10080¥1,330

main55545-10080-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub55545-10080¥1,330

main55545-10130-B0iEP80,81..RHD199201

GRAY,TRIM1#

sub55545-10130¥1,340

main55545-10130-E0iEP80,81..RHD..XL199201-199212

OAK,TRIM4#

sub55545-10130¥1,340

main55545-10140-B0iEP80,81..LHD199201-199601

GRAY,TRIM1#

sub55545-10140¥1,330

main55545-10140-E0iEP80,81..LHD..XL199201-199212

OAK,TRIM4#

sub55545-10140¥1,330

main55545-10180-B0iEP82199201-199405

GRAY,TRIM1#

sub55545-10180¥1,330

main55545-10180-E0iEP82..SOLL199201-199405

OAK,TRIM4#

sub55545-10180¥1,330

main55545-10181-B0iEP82199405-199601

GRAY,TRIM1#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-10030iEP8#..RHD¥610198912

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-10010iEP8#..RHD¥1,960198912

main55558-10020iEP80,81..LHD¥1,960198912-199601

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-10010iEP8#¥90198912

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-10010-03iEP8#198912

SHADOW GRAY,TRIM1#

sub55565-10010¥740

main55565-10010-04iEP8#..S,XL198912-199201

BLUE,TRIM8#

sub55565-10010¥740

main55565-10010-E0iEP8#..SOLL,XL199201-199405

OAK,TRIM4#

sub55565-10010¥740

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-10100-03iEP80,81..LHD198912-199209

GRAY,TRIM1#

sub55650-10101¥4,730

main55650-10100-04iEP8#..LHD..(S,XL)198912-199201

BLUE,TRIM8#

sub55650-10101¥4,730

main55650-10100-E0iEP80,81..LHD..XL199201-199209

OAK,TRIM4#

sub55650-10101¥4,730

main55650-10101-E0iEP80,81..LHD..XL199209-199212

OAK,TRIM4#

sub55650-10102¥4,710

main55650-10101-P0iEP80,81..LHD199209-199405

GRAY,TRIM1#

sub55650-10102¥4,710

main55650-10102-P0iEP80,81..LHD199405-199601

GRAY,TRIM1#

main55650-10110-03iEP8#..RHD198912-199209

GRAY,TRIM1#

sub55650-10111¥4,750

main55650-10110-04iEP8#..RHD..(S,XL)198912-199201

BLUE,TRIM8#

sub55650-10111¥4,750

main55650-10110-E0iEP8#..RHD..(SOLL,XL)199201-199209

OAK,TRIM4#

sub55650-10111¥4,750

main55650-10111-E0iEP82..SOLL199209-199405

OAK,TRIM4#

sub55650-10111¥4,750

main55650-10111-P0iEP8#..RHD199209

GRAY,TRIM1#

sub55650-10111¥4,750

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-10030-03iEP80,81..LHD198912-199209

GRAY,TRIM1#

sub55660-10031¥4,730

main55660-10030-04iEP8#..LHD..(S,XL)198912-199201

BLUE,TRIM8#

sub55660-10031¥4,730

main55660-10030-E0iEP80,81..LHD..XL199201-199209

OAK,TRIM4#

sub55660-10031¥4,730

main55660-10031-E0iEP80,81..LHD..XL199209-199212

OAK,TRIM1#

sub55660-10032¥4,710

main55660-10031-P0iEP80,81..LHD199209-199405

GRAY,TRIM1#

sub55660-10032¥4,710

main55660-10032-P0iEP80,81..LHD199405-199601

GRAY,TRIM1#

main55660-10040-03iEP8#..RHD198912-199209

GRAY,TRIM1#

sub55660-10041¥4,730

sub55660-10021¥4,730

main55660-10040-04iEP8#..RHD..(S,XL)198912-199201

BLUE,TRIM8#

sub55660-10041¥4,730

sub55660-10021¥4,730

main55660-10040-E0iEP8#..RHD..(SOLL,XL)199201-199209

OAK,TRIM4#

sub55660-10041¥4,730

sub55660-10021¥4,730

main55660-10041-E0iEP8#..RHD..(SOLL,XL)199209-199405

OAK,TRIM4#

sub55660-10022¥4,730

main55660-10041-P0iEP8#..RHD199209

GRAY,TRIM1#

sub55660-10022¥4,730

5806

9011906106

main90119-06106¥70

9015960307

main90159-60307¥120

9015960425

main90159-60425¥70

9016750002

main90167-50002¥120

9017906009

main90179-06009¥120

9017908102

main90179-08102¥160

9018305009

main90183-05009¥90

9018305094

main90183-05094¥90

9046714036

main90467-14036¥370

9046804157

main90468-04157¥80

9046807019

main90468-07019¥350

9050809012

main90508-09012¥120

9054004008

main90540-04008¥140

9054103015

main90541-03015¥110

9054105020

main90541-05020¥110

9165160816

main91651-60816¥100

9353055016

main93530-55016¥90

9356755014

main93567-55014¥110

9356855018

main93568-55018¥120

56 parts on this diagram · 2 diagrams in section
