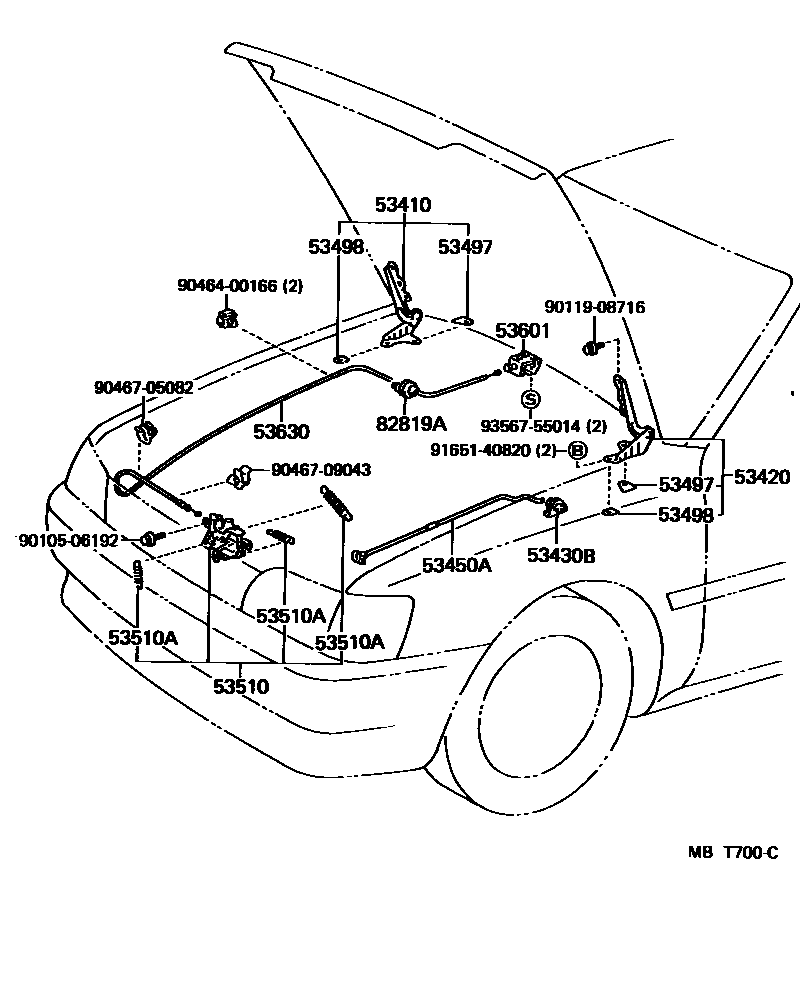

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53430BGROMMET(FOR HOOD SUPPORT)
53450ASUPPORT ASSY, HOOD, LH
53497PAD, HOOD HINGE, NO.1
T=0.5
53498PAD, HOOD HINGE, NO.2
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21.25,WD=0.9,CW=21.25
WD=0.9,CW=20.75,WD=0.9,CW=20.75
WD=0.9,CW=20.75
WD=1.2,CW=8.5
WD=1.8,CW=13,WD=1.8,CW=13.0
WD=1.8,CW=13
WD=2.0,CW=11
WD=0.9,CW=21.25
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
82819AGROMMET, WIRE
W(PRE AIR CLEANER & REAR WINDOW WIPER)
W(REAR WINDOW WIPER)
9010506192
main90105-06192
9011908716
main90119-08716
9046400166
main90464-00166
9046705082
main90467-05082
9046709043
main90467-09043
9165140820
main91651-40820
9356755014
main93567-55014
18 parts on this diagram · 1 diagram in section
