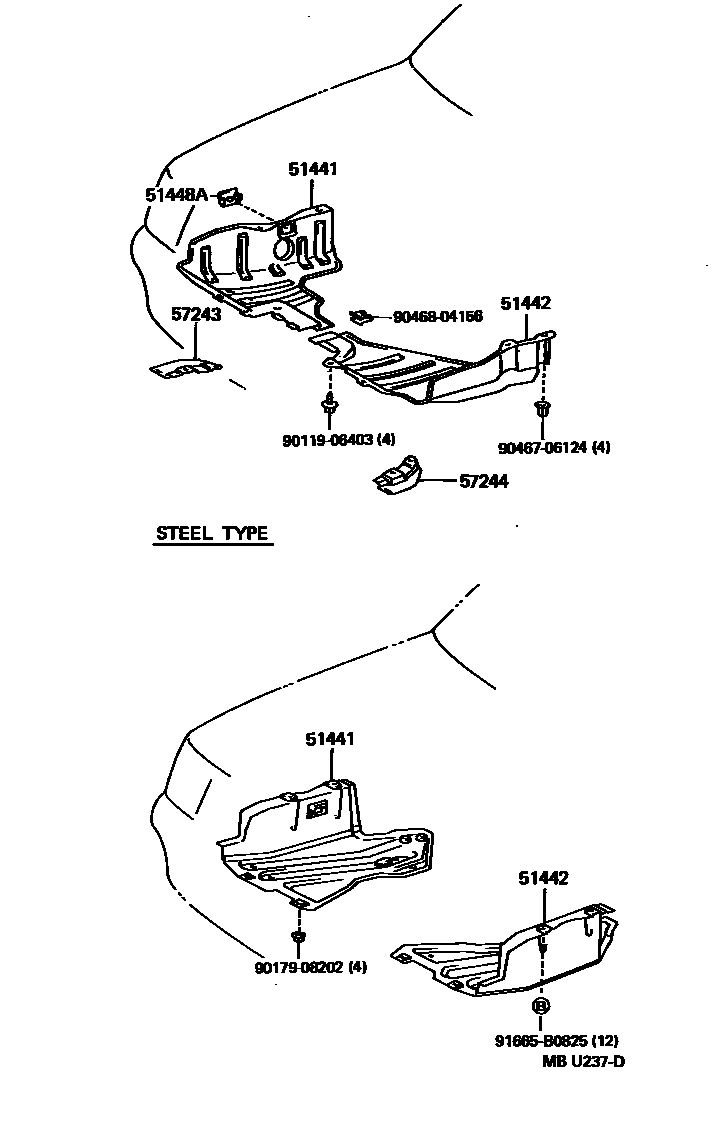

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51441COVER, ENGINE UNDER, NO.1

main51405-10030iEP80;EP81..5D..5F;EP81..3D..XL198912

SEVERE USAGE PACKAGE

main51441-10100iEP8#198912-199402

sub51441-10130

main51441-10130iEP8#199402-199505

sub51441-10131

main51441-10131iEP8#199505-199703

main51441-10140iEP81199703

51442COVER, ENGINE UNDER, NO.2

main51406-10020iEP80;EP81..5D..5F;EP81..3D..XL198912

SEVERE USAGE PACKAGE

main51442-10050iEP8#..MTM198912-199405

sub51442-10051

main51442-10051iEP8#..MTM199405

main51442-10060iEP81,82..ATM198912-199405

sub51442-10061

main51442-10061iEP81,82..ATM199405-199601

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iEP8#198912-199505

57243PROTECTOR, LOWER ARM, RH

main57243-10030iEP80;EP81..5D;EP81..3D..XL198912

SEVERE USAGE PACKAGE

57244PROTECTOR, LOWER ARM, LH

main57244-10030iEP80;EP81..5D;EP81..3D..XL198912

SEVERE USAGE PACKAGE

9011906403

main90119-06403

9017908202

main90179-08202

9046706124

main90467-06124

9046804156

main90468-04156

91665B0825

main91665-B0825

10 parts on this diagram · 2 diagrams in section
