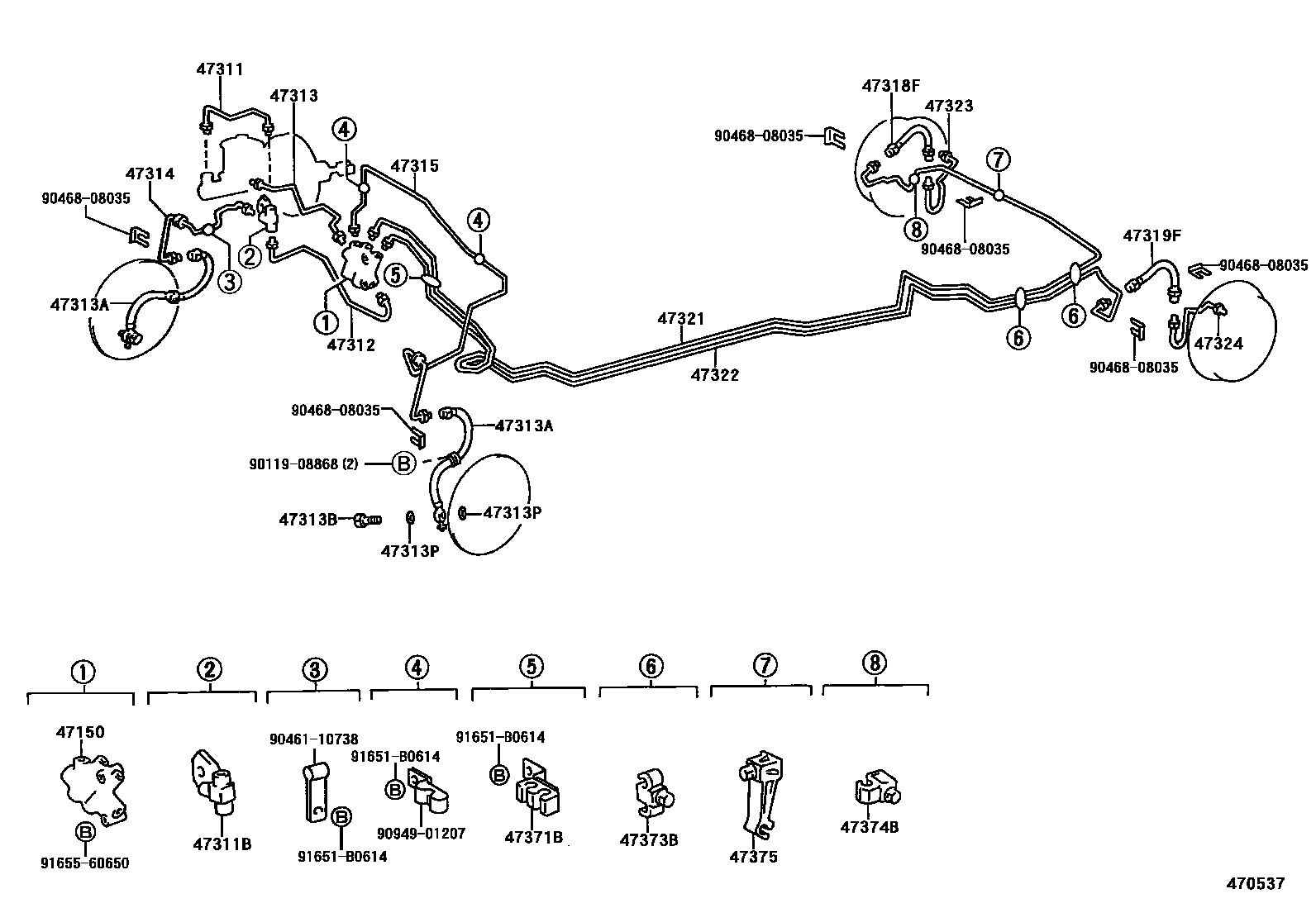

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-10060iEP82199201-199601

W(ABS)

main47150-12060iEP8#198912

sub47150-12270

47311TUBE, FRONT BRAKE, NO.1

main47311-10150iEP80,81..LHD198912-199601

main47311-10180iEP8#..RHD198912

main47311-10190iEP82199201-199601

W(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10169iEP82199201-199601

W(ABS)

main90412-10170iEP80,81..LHD198912-199601

main90413-10249iEP8#..RHD198912

47312TUBE, FRONT BRAKE, NO.2

main47312-10220iEP80,81..LHD198912-199405

main47312-10240iEP8#..RHD198912

main47312-10260iEP82199201-199601

W(ABS)

main47312-16090iEP80,81..LHD199405-199601

47313TUBE, FRONT BRAKE, NO.3

main47313-10300iEP8#..RHD198912

main47313-10310iEP80,81..LHD198912-199601

main47313-10340iEP82199201-199601

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02632iEP8#198912-199201

RH

main90947-02633iEP8#198912-199201

LH

main90947-02644iEP8#199201-199405

RH

sub90947-02718

main90947-02645iEP8#199201-199405

LH

sub90947-02719

main90947-02813iEP8#199405

RH

main90947-02814iEP8#199405

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEP8#198912

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEP8#198912

47314TUBE, FRONT BRAKE, NO.4

main47314-10230iEP82199201-199601

W(ABS)

main47314-10240iEP80,81..LHD198912-199405

main47314-10250iEP8#..RHD198912

main47314-16100iEP80,81..LHD199405-199601

47315TUBE, FRONT BRAKE, NO.5

main47315-10150iEP80,81..LHD198912-199601

main47315-10170iEP8#..RHD198912-199206

main47315-10171iEP8#..RHD199206

main47315-10190iEP82199201-199601

W(ABS)

47318TUBE, FRONT BRAKE, NO.8

main47318-10080iEP8#..LHD198912-199201

main47318-10081iEP80,81..LHD199201-199601

main47318-10090iEP82199201-199206

main47318-10091iEP82199206-199601

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02603iEP8#198912-199405

main90947-02637iEP8#199405

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02603iEP8#198912-199405

main90947-02637iEP8#199405

47321TUBE, REAR BRAKE, NO.1

main47321-10170iEP8#..RHD198912

main47321-10180iEP80,81..LHD198912-199601

47322TUBE, REAR BRAKE, NO.2

main47322-10120iEP8#..RHD198912

main47322-10130iEP80,81..LHD198912-199601

47323TUBE, REAR BRAKE, NO.3

main47323-10050iEP8#198912

47324TUBE, REAR BRAKE, NO.4

main47324-10050iEP8#198912

47371BCLAMP, BRAKE TUBE, NO.6

main47371-30010iEP8#..RHD198912

47373BCLAMP, BRAKE TUBE, NO.3

main47371-10080×2iEP8#198912

47374BCLAMP, BRAKE TUBE, NO.4

main47371-10100iEP8#198912

47375CLAMP, BRAKE TUBE, NO.5

main47371-10110iEP8#198912

9011908868

main90119-08868

9046110738

main90461-10738

9046808035

main90468-08035

9094901207

main90949-01207

91651B0614

main91651-B0614

9165560650

main91655-60650

27 parts on this diagram · 4 diagrams in section
