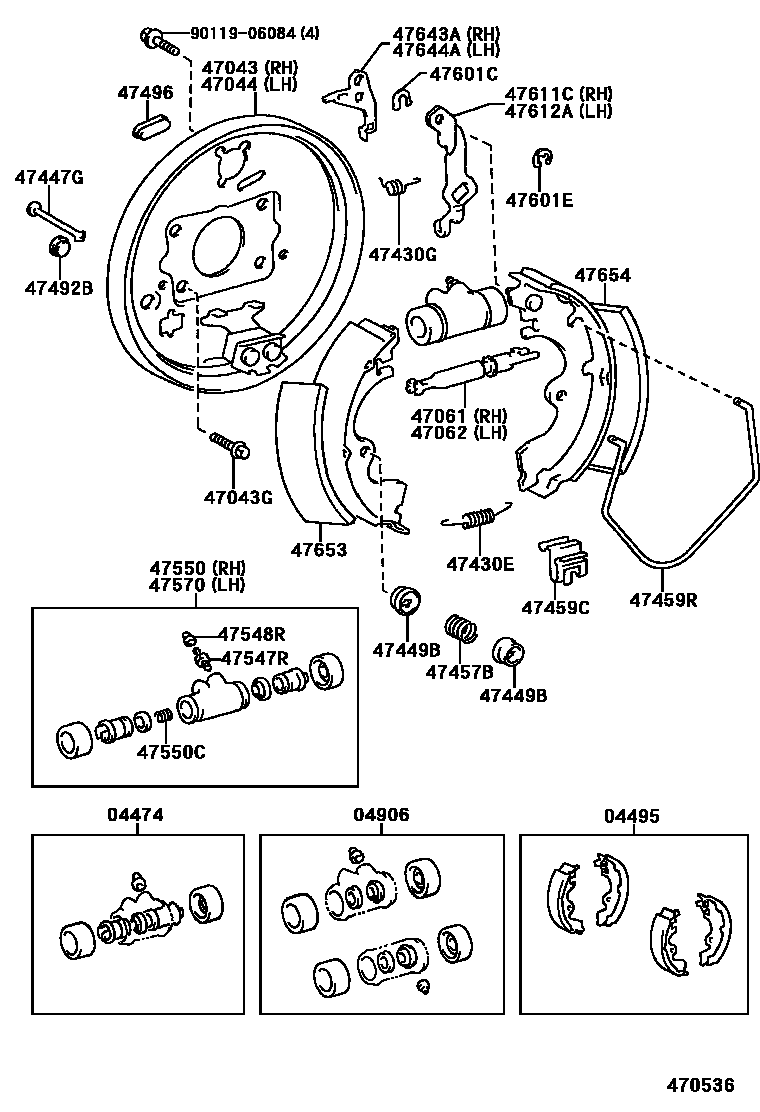

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-16020iEP8#198912

04495SHOE KIT, REAR BRAKE

main04495-10110iEP8#198912

04906CUP KIT, REAR WHEEL CYLINDER

main04906-16020iEP8#198912

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-10050iEP8#198912

main47043-10060iEP82199201-199601

W(ABS)

47043GBOLT (FOR BACKING PLATE TO REAR AXLE BEAM SETTING)

main90119-10365iEP8#198912-199802

sub90119-10455

main90119-10455iEP81199802

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-10050iEP8#198912

main47044-10060iEP82199201-199601

W(ABS)

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-10020iEP8#198912

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-10020iEP8#198912

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18014iEP8#198912

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90507-12020iEP8#198912

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iEP8#198912

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iEP8#198912

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-14086iEP8#198912

47459CCLIP(FOR SHOE RETURN SPRING)

main90468-05063iEP8#198912

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-16020iEP8#198912

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iEP8#198912

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iEP8#198912

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iEP8#198912

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iEP8#198912

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20120iEP8#198912

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iEP8#198912

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20030iEP8#198912

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iEP8#198912

T=1.2

47601ERING, E(FOR REAR BRAKE)

main96160-00600iEP8#198912

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-10030iEP8#198912

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-10030iEP8#198912

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-10020iEP8#198912

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-10020iEP8#198912

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-10100iEP8#198912-199201

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-10100iEP8#198912-199201

9011906084

main90119-06084

31 parts on this diagram · 1 diagram in section
