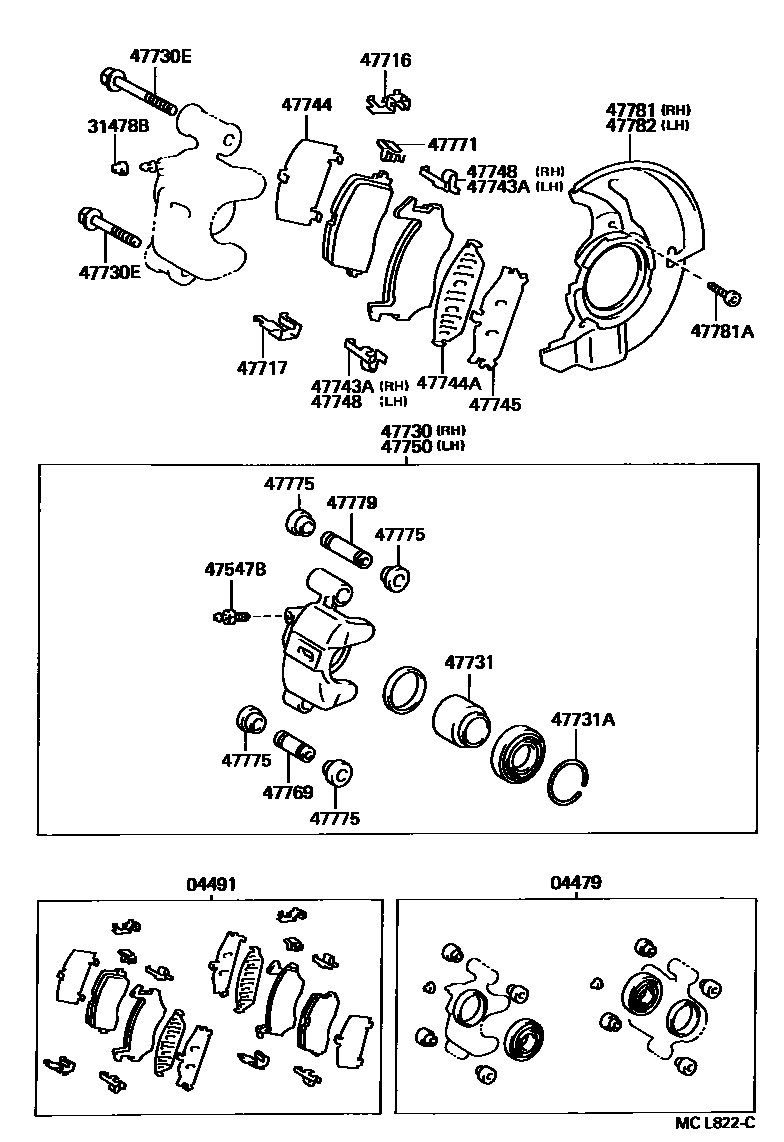

FRONT DISC BRAKE CALIPER & DUST COVER
04479CYLINDER KIT, DISC BRAKE, FRONT
W(ABS)
04491PAD KIT, DISC BRAKE, FRONT
sub04465-10020
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
W(ABS)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
W(ABS)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
XL SPORTS PACKAGE
W(13 INCHES DISC WHEEL)
INDONESIA SPEC
W(ABS)
47730EBOLT(FOR FRONT DISC BRAKE CYLINDER)
*8-1.25PX78-30
47731PISTON, FRONT DISC BRAKE
W(ABS)
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
XL SPORTS PACKAGE
ALUMINUM WHEEL
INDONESIA SPEC
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
W(ABS)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
W(ABS)
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
XL SPORTS PACKAGE
ALUMINUM WHEEL
INDONESIA SPEC
47750CYLINDER ASSY, DISC BRAKE, LH
XL SPORT
W(13 INCHES DISC WHEEL)
INDONESIA SPEC
W(ABS)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
W(ABS)
47771PLATE, PAD WEAR INDICATOR, NO.1
W(ABS)
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
W(ABS)
47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
W(ABS)
47781COVER, DISC BRAKE DUST, FRONT RH
W(ABS)
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
W(ABS)
23 parts on this diagram · 4 diagrams in section
