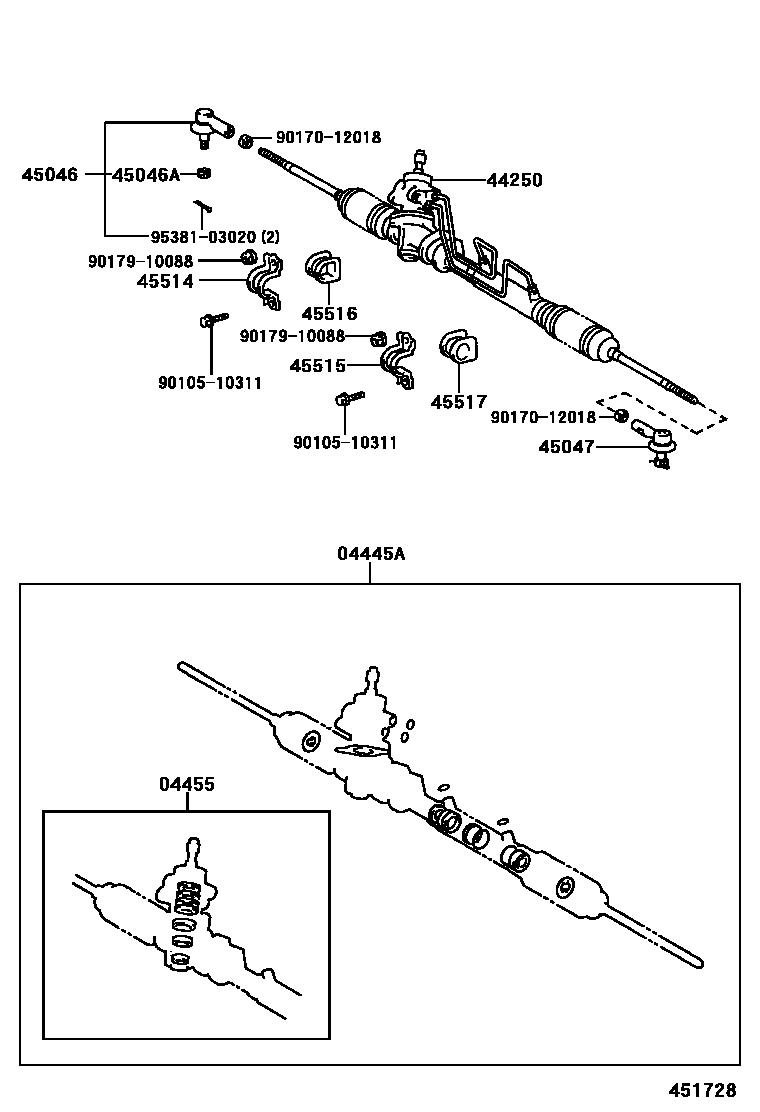

FRONT STEERING GEAR & LINK

0001 1POWER STEERING 0002 1POWER STEERING 0003 1POWER STEERING 0004 1POWER STEERING 0005 1MANUAL STEERING 0006 1MANUAL STEERING

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-10020iEP81..RHD199212-199408

sub04445-10030

main04445-10030iEP82199201-199408

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10020iEP81..RHD199212-199408

sub04455-10030

main04455-10030iEP81,82..RHD199201-199408

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-10110iEP82..S199204-199405

sub44250-16151

main44250-10120iEP81..RHD199212-199501

sub44250-10121

main44250-10121iEP81..RHD199501-199601

sub44250-10122

main44250-10122iEP81199601

main44250-16150iEP82..CAN,SOL,SOLL199201-199501

sub44250-10140

main44250-16151iEP82199501-199601

sub44250-10200

45046END SUB-ASSY, TIE ROD, RH

main45046-19205iEP8#198912-199101

sub45046-19206

main45046-19206iEP8#199101

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iEP8#198912

45047END SUB-ASSY, TIE ROD, LH

main45046-19205iEP8#198912-199101

sub45046-19206

main45046-19206iEP8#199101

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-10050iEP8#198912-199201

main45514-16050iEP80,81;EP82..SOL199201

main45514-16060iEP82..SOL199201-199707

W(POWER STEERING)

sub45514-16061

main45514-16060iEP82..CAN,S,SOLL199201-199601

sub45514-16061

main45514-16061iEP81199707

W(POWER STEERING)

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-16060iEP81..RHD;EP82..SOL199201-199707

W(POWER STEERING)

sub45514-16061

main45514-16060iEP82..CAN,S,SOLL199201-199601

sub45514-16061

main45514-16061iEP81199707

W(POWER STEERING)

main45515-10050iEP80,81;EP82..SOL198912

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-10040iEP8#198912-199008

main45516-16050iEP80,81;EP82..SOL199008

main45516-16060iEP82..CAN,S,SOLL199201-199601

main45516-16060iEP82..SOL199201-199212

W(POWER STEERING)

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEP82..SOL199201-199212

W(POWER STEERING)

main45517-10070iEP82..CAN,S,SOLL199201-199601

main45517-10080iEP80,81;EP82..SOL198912

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

14 parts on this diagram · 6 diagrams in section
