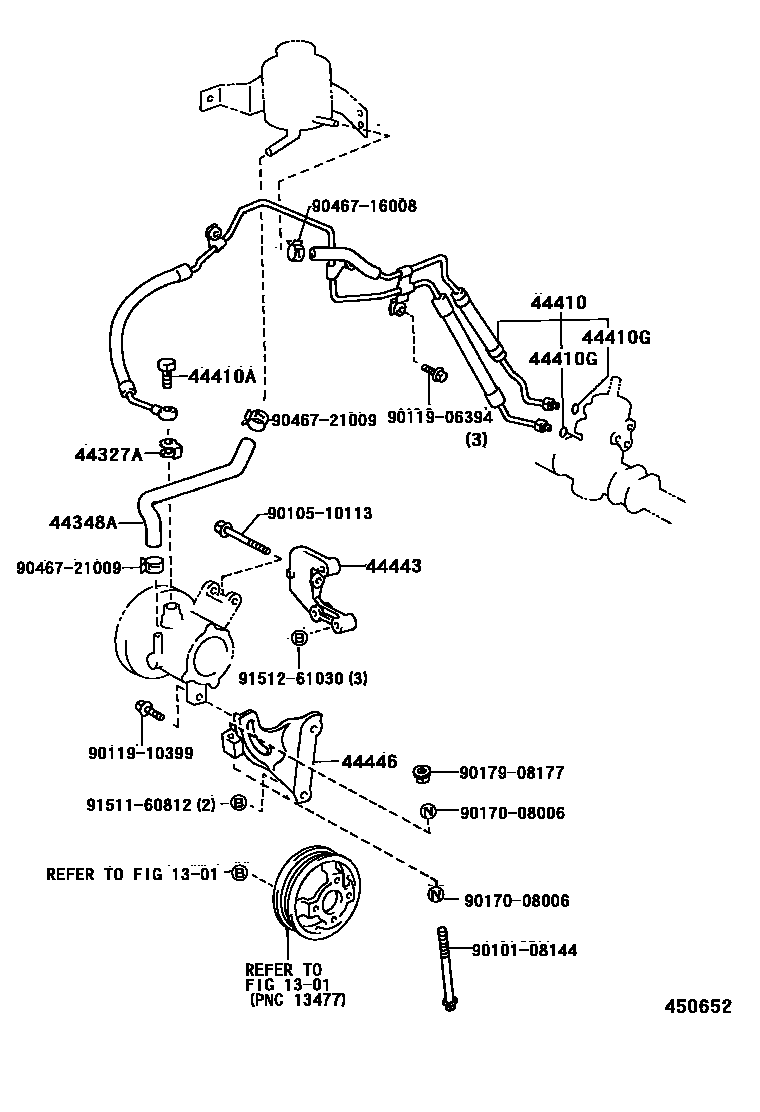

POWER STEERING TUBE

1301

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEP82199201-199212

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-10050iEP82199201-199405

main44348-10110iEP82199405-199601

main44348-16081iEP81..RHD199212

44410TUBE ASSY, PRESSURE FEED

main44410-10110iEP82199201-199405

main44410-10111iEP82199405-199601

main44410-10120iEP82199201-199405

W(ABS)

main44410-16171iEP81..RHD199212

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEP82199201-199212

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iEP82199201-199212

44443BRACKET, PUMP

main44443-10030iEP82199201-199601

main44443-12070iEP81..RHD199212

44446STRUT, ADJUSTING

main44446-10050iEP82199201-199601

main44446-16061iEP81..RHD199212

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910399

main90119-10399

9017008006

main90170-08006

9017908177

main90179-08177

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151261030

main91512-61030

18 parts on this diagram · 1 diagram in section
