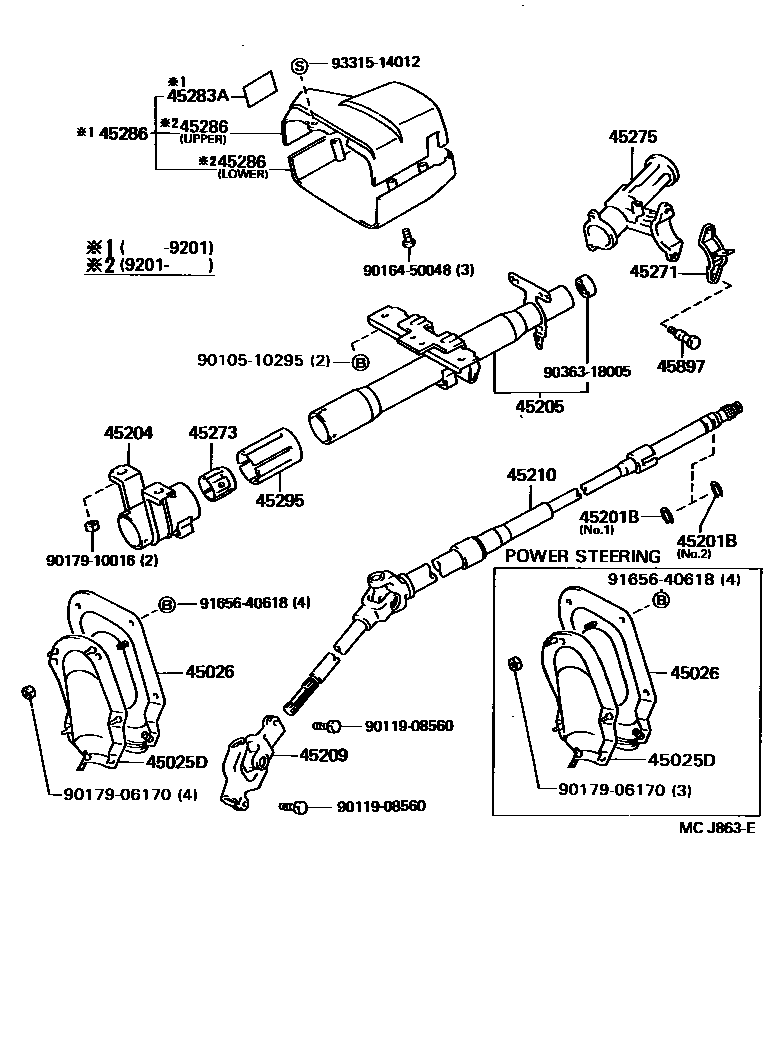

STEERING COLUMN & SHAFT

0001 1 0002 1TILT STEERING 0003 1 0004 1TILT STEERING

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10080iEP82..SOL;EP80,81..RHD198912

main45025-10090iEP82..CAN,S,SOLL199201-199601

main45025-10090iEP81..RHD;EP82..SOL199201-199212

W(POWER STEERING)

main45025-10100iEP80,81..LHD198912-199601

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-10030iEP82..SOL;EP80,81..RHD198912

main45026-10040iEP81..RHD;EP82..SOL199201-199212

W(POWER STEERING)

main45026-10040iEP82..CAN,S,SOLL199201-199601

main45026-10050iEP80,81..LHD198912-199601

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEP8#198912-199306

T=1.20

main90520-17042iEP8#199306

T=1.20,NO.1

main90520-17196iEP8#198912-199306

T=1.35-1.45

main90520-17269iEP8#199306

T=1.20,NO.2

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-10040iEP80,81;EP82..5D198912-199409

main45204-10050iEP81..5D..S199201-199409

INDONESIA SPEC

main45204-10060iEP82..3D199204-199409

main45204-10060iEP81..5D..S199212-199409

INDONESIA SPEC & W(POWER STEERING)

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-10190iEP80,81;EP82..5D198912-199409

main45205-10201iEP82..3D199204-199409

main45205-10201iEP81..5D..S199201-199409

INDONESIA SPEC

main45205-16080iEP80,81;EP82..5D199409

main45205-16090iEP82..S199409-199601

main45205-16090iEP81..5D..S199409

INDONESIA SPEC

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-10050iEP82..CAN,S,SOLL199201-199601

main45209-10050iEP82..SOL199201-199212

W(POWER STEERING)

main45209-12060iEP80,81;EP82..SOL199201-199602

main45209-12060iEP81199602

TYPE A

main45209-16030iEP8#198912-199201

main45209-16040iEP81199602

TYPE B

45210SHAFT ASSY, STEERING MAIN

main45210-10140iEP8#..RHD198912-199201

main45210-10160iEP8#..LHD198912-199201

main45210-10161iEP80,81..LHD199201-199601

main45210-10170iEP82..SOL199201-199212

W(POWER STEERING)

main45210-10170iEP82..CAN,S,SOLL199201-199601

main45210-16150iEP82..SOL;EP80,81..RHD199201

45271CLAMP, STEERING COLUMN, UPPER

main45271-10080iEP8#198912

45273BUSH, STEERING MAIN SHAFT

main45273-16010iEP8#198912-199309

main45273-16020iEP8#199409

main45273-20030iEP8#199309-199409

sub45273-16020

45275BRACKET, STEERING COLUMN, UPPER

main45280-10070iEP80,81198912-199405

sub45280-10071

main45280-10071iEP81..5D..S199405-199409

INDONESIA SPEC OR W(POWER STEERING)

main45280-10071iEP80,81199405

main45280-18010iEP82..MTM199201-199405

sub45280-18011

main45280-18011iEP81..RHD199405-199409

W(POWER STEERING)

main45280-18011iEP82..MTM199405-199601

main45280-18020iEP82..ATM199201-199405

sub45280-18021

main45280-18021iEP82..ATM199405-199601

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-12010iEP8#..RHD198912-199201

45286COVER, STEERING COLUMN

main45286-10171-E0iEP8#..RHD..(SOLL,XL)199201-199405

OAK,TRIM4#,UPPER

sub45286-10171

main45286-10171-P0iEP82..5D;EP80,81..RHD199201

GRAY,TRIM1#,UPPER

sub45286-10171

main45286-10190-E0iEP80,81..LHD..XL199201-199212

OAK,TRIM4#,UPPER

sub45286-10190

sub45286-10905

main45286-10190-P0iEP80,81..LHD199201-199601

GRAY,TRIM1#,UPPER

sub45286-10190

sub45286-10905

main45286-10201-P0iEP81..5D..S199201

INDONESIA SPEC,GRAY,TRIM1#,UPPER

sub45286-10201

main45286-10201-P0iEP82..3D199204-199601

GRAY,TRIM1#,UPPER

sub45286-10201

main45286-10903-03iEP8#..RHD198912-199201

GRAY,TRIM1#

sub45286-10903

main45286-10903-04iEP8#..RHD..(S,XL)198912-199201

BLUE,TRIM8#

sub45286-10903

main45286-10905-03iEP8#..LHD198912-199201

GRAY,TRIM1#

sub45286-10905

main45286-10905-04iEP8#..LHD..(S,XL)198912-199201

BLUE,TRIM8#

sub45286-10905

main45287-10131-E0iEP82..SOLL199201-199405

OAK,TRIM4#,LOWER

sub45287-10131

main45287-10131-P0iEP82..5D;EP80,81..RHD199201

GRAY,TRIM1#,LOWER

sub45287-10131

main45287-10150-E0iEP80,81..LHD..XL199201-199212

OAK,TRIM4#,LOWER

sub45287-10150

sub45286-10905

main45287-10150-P0iEP80,81..LHD199201-199601

GRAY,TRIM1#,LOWER

sub45287-10150

sub45286-10905

main45287-10161-P0iEP82..3D199204-199601

GRAY,TRIM1#,LOWER

sub45287-10161

main45287-10161-P0iEP81..5D..S199201

INDONESIA SPEC,GRAY,TRIM1#,LOWER

sub45287-10161

45295BUSH, STEERING COLUMN TUBE

main45295-10010iEP8#198912-199409

45897BOLT, STEERING LOCK SET

main45897-12020iEP8#199310

main45897-32010iEP8#198912-199310

9010510295

main90105-10295

9011908560

main90119-08560

9016450048

main90164-50048

9017906170

main90179-06170

9017910016

main90179-10016

9036318005

main90363-18005

9165640618

main91656-40618

9331514012

main93315-14012

22 parts on this diagram · 4 diagrams in section
