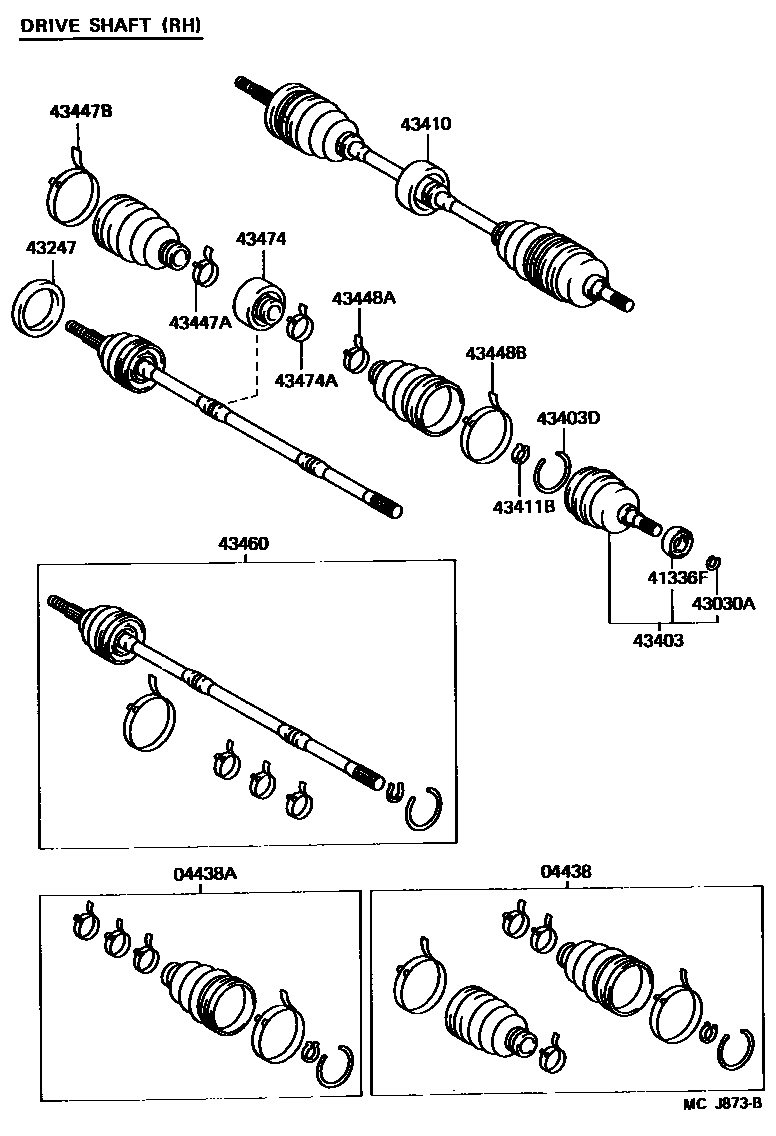

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-10022iEP82199201-199301

W(ABS)

sub04438-16040

main04438-10022iEP81,82198912

sub04438-16040

main04438-10040iEP80198912-199601

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-10030iEP80198912-199601

main04438-16030iEP81,82198912-199509

sub04438-16140

main04438-16140iEP81,82199509

sub04438-16070

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iEP8#198912

main41336-12010iEP82199201-199301

W(ABS)

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004iEP82199201-199301

W(ABS)

main90521-26004iEP8#198912

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-10020iEP8#198912-199208

main43247-16040iEP8#199208

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-10010iEP81,82198912

sub43403-10011

main43403-10020iEP80198912-199601

43403DRING, HOLE SNAP (FOR FRONT AXLE INBOARD JOINT SET)

main90521-64001iEP80198912-199601

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-10070iEP80198912-199101

sub43410-10071

sub43525-20030

sub90179-22020

main43410-10071iEP80199101-199601

sub43410-10081

main43410-10090iEP81198912-199101

sub43410-10091

sub43525-20030

sub90179-22020

main43410-10091iEP81,82199101

sub43410-10270

main43410-10101iEP82199201-199601

W(ABS)

sub43410-10280

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-21020iEP80198912-199601

sub43425-48040

main90520-22001iEP82199201-199301

W(ABS)

sub90520-22029

main90520-22001iEP81,82198912

sub90520-22029

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-10030iEP80198912-199601

sub42345-10050

main42345-16010iEP81,82199201

main90949-01078iEP81198912-199201

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-10020iEP80198912-199601

main42345-16020iEP81,82199201

main90949-01080iEP81198912-199201

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-10030iEP80198912-199601

sub42345-10050

main42345-16010iEP81,82199201

main90949-01078iEP81198912-199201

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-10010iEP80198912-199601

main42345-16080iEP81,82199201

main90949-01146iEP81198912-199201

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19415iEP80198912-199101

sub43460-19416

sub43525-20030

sub90179-22020

main43460-19416iEP80199101-199601

sub43460-19426

main43460-19435iEP81198912-199101

sub43460-19436

sub43525-20030

sub90179-22020

main43460-19436iEP81,82199101

sub43460-80100

main43460-19446iEP82199201-199601

W(ABS)

sub43460-80101

43474DAMPER, DRIVE SHAFT

main43474-10010iEP81,82198912

main43474-10040iEP80198912-199601

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-10030iEP80198912-199601

sub42345-10050

main42345-16010iEP81,82199201

main90949-01078iEP81198912-199201

16 parts on this diagram · 4 diagrams in section
