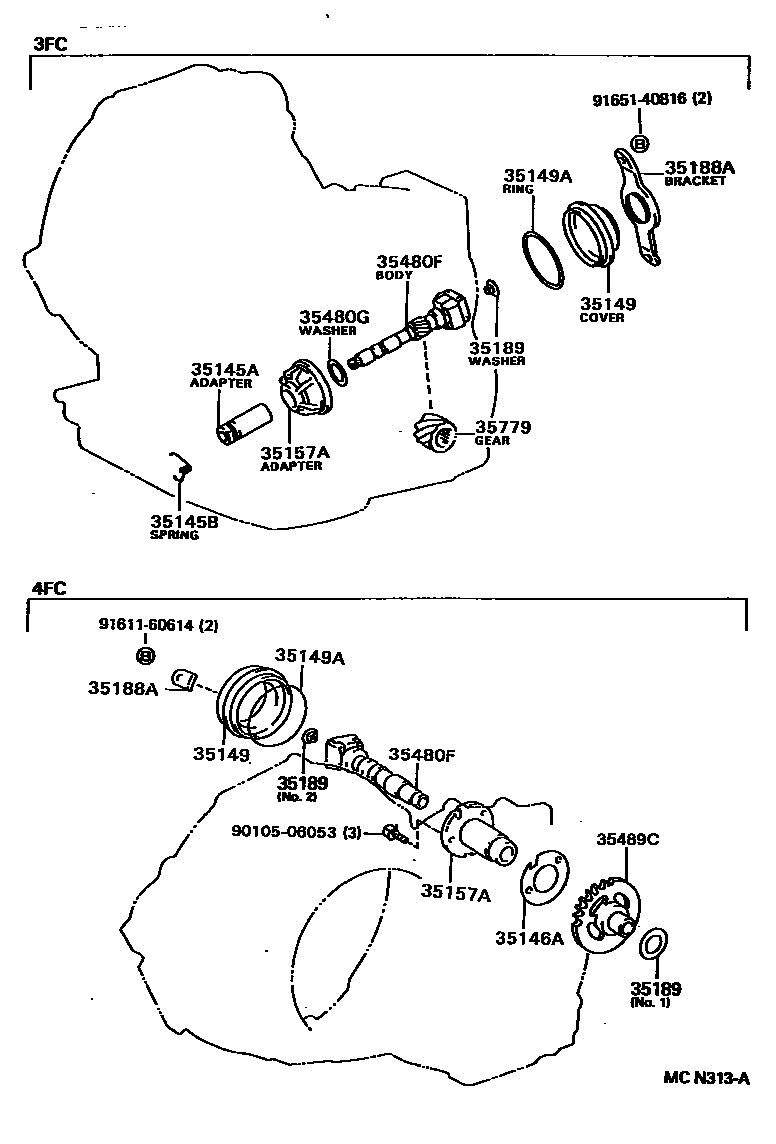

REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32011iEP81,82..3FC198912-199601

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iEP81,82..3FC198912-199601

35146AGASKET, GOVERNOR BODY

main35146-20010iEP82..4FC199204-199601

35149COVER, GOVERNOR

main35149-12010iEP81,82..3FC198912-199601

main35149-20010iEP82..4FC199204-199601

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iEP82..4FC199204-199601

main90301-73001iEP81,82..3FC198912-199601

35157AADAPTER, GOVERNOR BODY

main35157-12010iEP81,82..3FC198912-199601

main35157-20031iEP82..4FC199204-199601

35188ABRACKET, GOVERNOR COVER

main35188-12010iEP81,82..3FC198912-199601

main35188-20010×2iEP82..4FC199204-199601

35189WASHER, GOVERNOR THRUST, NO.1

main35189-12010iEP82..4FC199204-199601

NO.1

main35189-32011iEP81,82..3FC198912-199601

35480FBODY ASSY, GOVERNOR

main35480-12030iEP82..4FC199204-199601

main35480-12040iEP81,82..3FC198912-199601

sub35480-16070

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iEP81,82..3FC198912-199601

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iEP82..4FC199204-199601

35779GEAR, GOVERNOR DRIVE

main35779-32010iEP81,82..3FC198912-199601

9010506053

main90105-06053

9161160614

main91611-60614

9165140816

main91651-40816

15 parts on this diagram · 1 diagram in section
