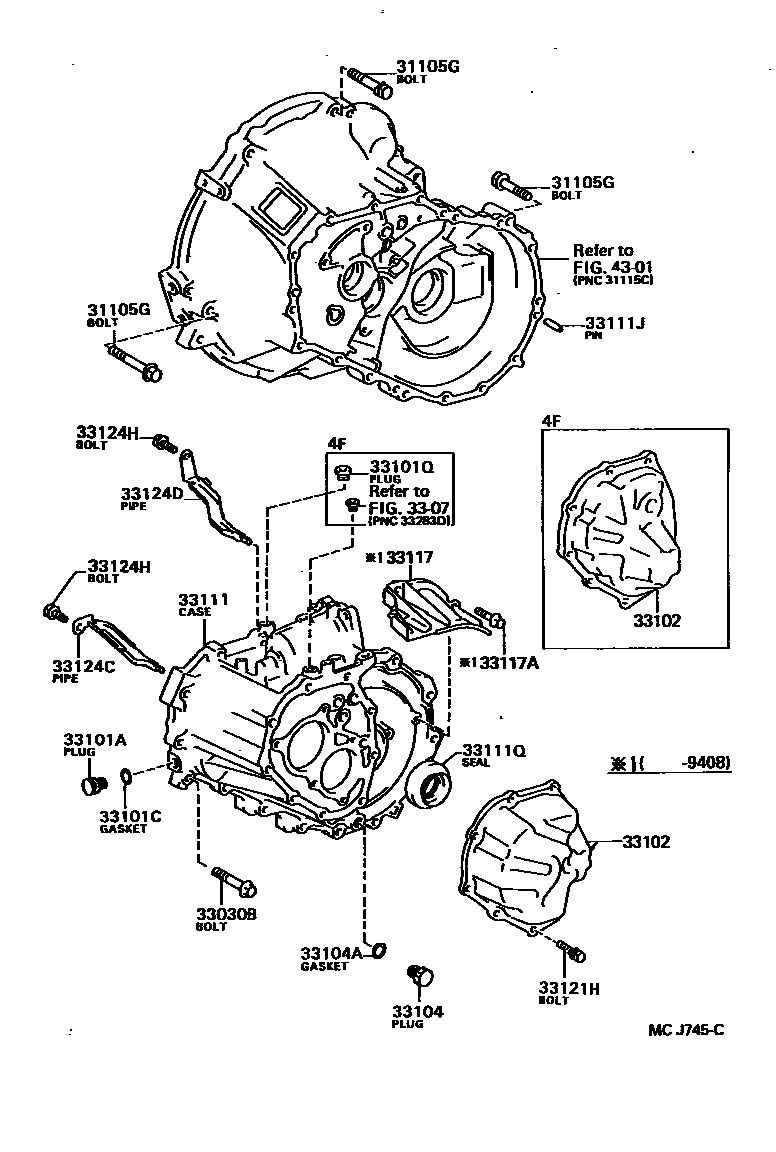

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10097iEP8#..MTM198912

*10-1.25PX60-22

main91611-61025iEP8#..MTM198912

*10-1.25PX25-25

sub91612-61025

main91619-61260iEP8#..MTM198912

*12-1.25PX60-30

main91621-60614iEP8#..MTM198912

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iEP8#..MTM198912

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iEP8#..MTM198912

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEP8#..MTM198912

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iEP80,82..4F198912-199601

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10010iEP80..4F198912-199105

sub33102-10011

main33102-10011iEP80,82..4F199105-199208

sub33102-10012

main33102-10012iEP80,82..4F199208-199504

sub33102-10014

sub33151-12021

main33102-10014iEP80,82..4F199504-199601

main33102-10020iEP8#..5F198912-199105

sub33102-10022

main33102-10021iEP8#..5F199105-199208

sub33102-10022

main33102-10022iEP8#..5F199208-199504

sub33102-10023

main33102-10023iEP8#..5F199504

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iEP8#..MTM198912

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iEP8#..MTM198912

33111CASE, MANUAL TRANSMISSION

main33111-10071iEP8#..MTM198912-199405

sub33111-16050

sub33124-10021

main33111-16050iEP8#..MTM199405-199505

sub33111-16080

sub90109-12073

main33111-16051iEP8#..MTM199505-199704

sub33111-16052

sub90109-12073

main33111-16052iEP81199704

sub33111-16053

sub90109-18005

sub90430-18008

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iEP8#..MTM198912

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iEP8#..MTM198912-199108

sub90311-34017

main90311-34017iEP8#..MTM199108

sub90311-34028

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010iEP8#..MTM199103-199408

main33117-17010iEP8#..MTM198912-199103

sub33117-16010

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iEP8#..MTM198912-199408

sub91641-H0820

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08494iEP8#..MTM198912-199410

sub90119-08373

main90119-08A34iEP8#..MTM199410

sub90119-08373

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010iEP8#..MTM198912-199504

main33124-10012iEP8#..MTM199504

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10020iEP8#..5F198912-199405

main33124-10021iEP8#..5F199405

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iEP80..5F199007-199106

INDONESIA SPEC

sub91611-G0820

main91611-60820iEP8#..MTM198912-199007

sub91611-G0820

4301

19 parts on this diagram · 1 diagram in section
