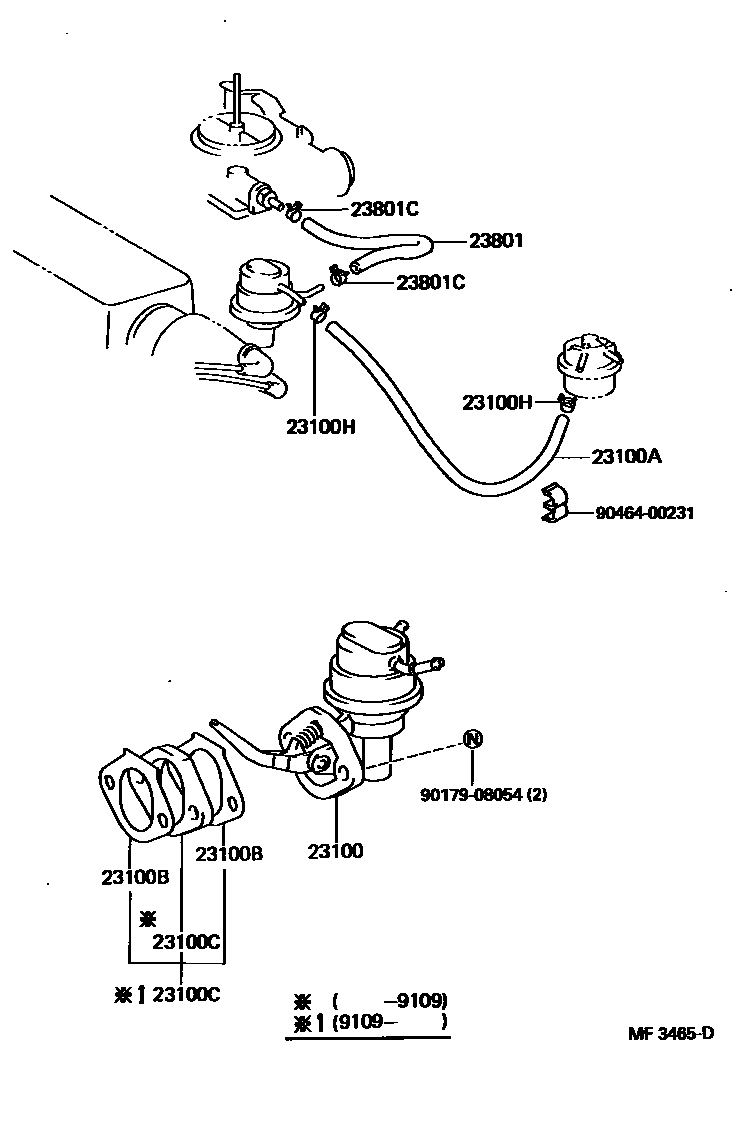

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-10021i1E..EP80198912-199201

main23100-11080i2E..EP81198912-199503

sub23100-11081

main23100-11081i1E,2E..EP80,81199503

23100AHOSE, FUEL

main23271-11050i1E,2E..EP80,81198912

23100BGASKET, FUEL PUMP

main90923-05024i1E,2E..EP80,81198912

23100CINSULATOR, FUEL PUMP

main23915-10020i1E,2E..EP8#198912-199109

sub23915-10021

main23915-10021i1E,2E..EP80,81199109

23100HCLIP(FOR FUEL HOSE)

main96132-41100i1E,2E..EP80,81198912

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95333-06010i1E,2E..EP80,81198912-199304

main95334-06010i1E,2E..EP80,81199304

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-11009i1E,2E..EP8#198912-199011

sub96135-51100

main96135-41100i1E,2E..EP80,81199011

sub96135-51100

9017908054

main90179-08054

9046400231

main90464-00231

9 parts on this diagram · 1 diagram in section
