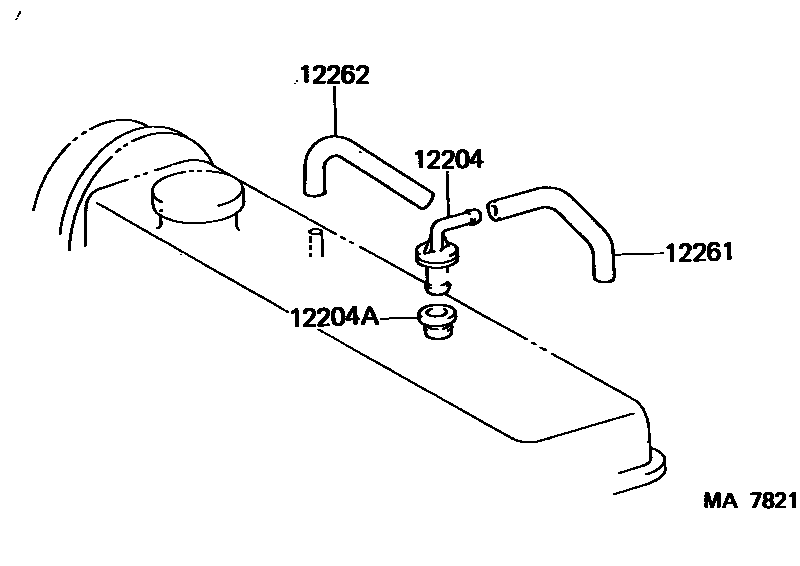

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-10040i4EFE..EP82199201-199601

main12204-11040i1E,2E..EP80,81198912-199803

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18006i1E,2E,4EFE..EP8#198912-199803

12261HOSE, VENTILATION

main12261-10010i1E,2E..EP8#198912-199201

main12261-10010i1E..EP80..RHD199201-199404

SINGAPORE SPEC

main12261-11020i1E,2E..EP80,81199201

main12261-11020i2E..EP81..3D199101-199201

NEW ZEALAND SPEC

main12261-11100i4EFE..EP82199201-199601

12262HOSE, VENTILATION, NO.2

main12262-10020i1E,2E..EP80,81198912

main12262-11050i4EFE..EP82199201-199601

4 parts on this diagram · 2 diagrams in section
