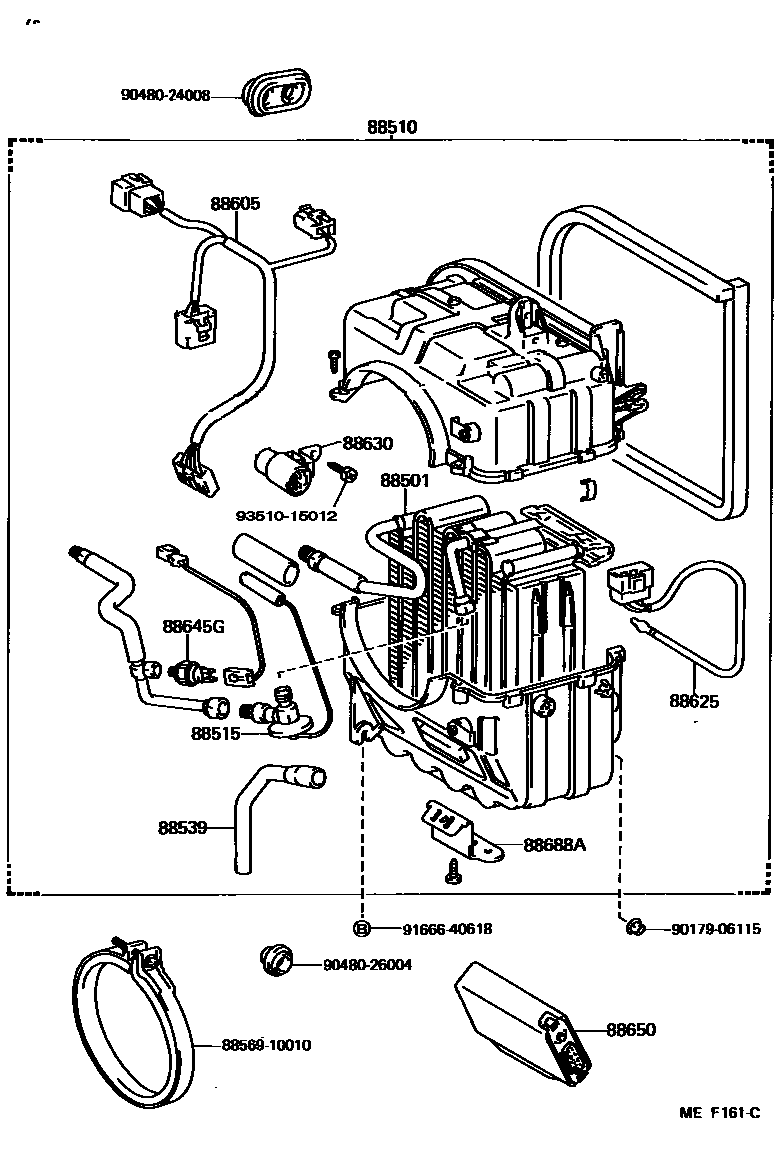

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPTION 0002 1DEALER OPTION

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-10080iEP70,71..RHD198410-198601

main88501-10081iEP70,71..RHD198601-198912

main88501-10090iEP7#..LHD198410-198601

main88501-10091iEP7#..LHD198601-198912

88510UNIT ASSY, COOLER

main88510-10140iEP70,71..RHD198410-198912

MAKER OPTION,W/HEATER

main88510-10150iEP7#..LHD198410-198912

MAKER OPTION,W/HEATER

sub88569-17090

sub88578-10090

main88510-10160iEP70,71..RHD198410-198912

MAKER OPTION,W/*BV

main88510-10170iEP7#..LHD198410-198912

MAKER OPTION,W/*BV

main88510-10180iEP70,71..RHD198410-198611

DEALER OPTION

sub90099-00930

main88510-10181iEP70,71..RHD198611-198912

DEALER OPTION

main88510-10190iEP7#..LHD198504-198912

DEALER OPTION

88515VALVE, COOLER EXPANSION

main88515-16031iEP7#198410-198912

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10080iEP7#198612-198912

DEALER OPTION

main88539-12080iEP7#198410-198612

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-10230iEP7#198410-198912

W/HEATER

main88605-10240iEP7#198410-198912

W/BOOST VENTILATOR

88625THERMISTOR, COOLER, NO.1

main88625-10020iEP7#198410-198912

88630RELAY ASSY, COOLER

main88630-10040iEP7#198410-198912

88645GSWITCH, PRESSURE

main88645-10020iEP7#198412-198912

main88645-12020iEP7#198410-198412

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10050iEP71,76198508-198912

W/HEATER

main88650-10060iEP7#198410-198508

W/*BV

main88650-10140iEP70198508-198912

W/HEATER

main88650-10150iEP70198508-198912

W/*BV

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-10060iEP7#198410-198912

8856910010CLAMP (FOR COOLER RELAY)

main88569-10010

9017906115

main90179-06115

9048024008

main90480-24008

9048026004

main90480-26004

9166640618

main91666-40618

9351015012

main93510-15012

16 parts on this diagram · 2 diagrams in section
