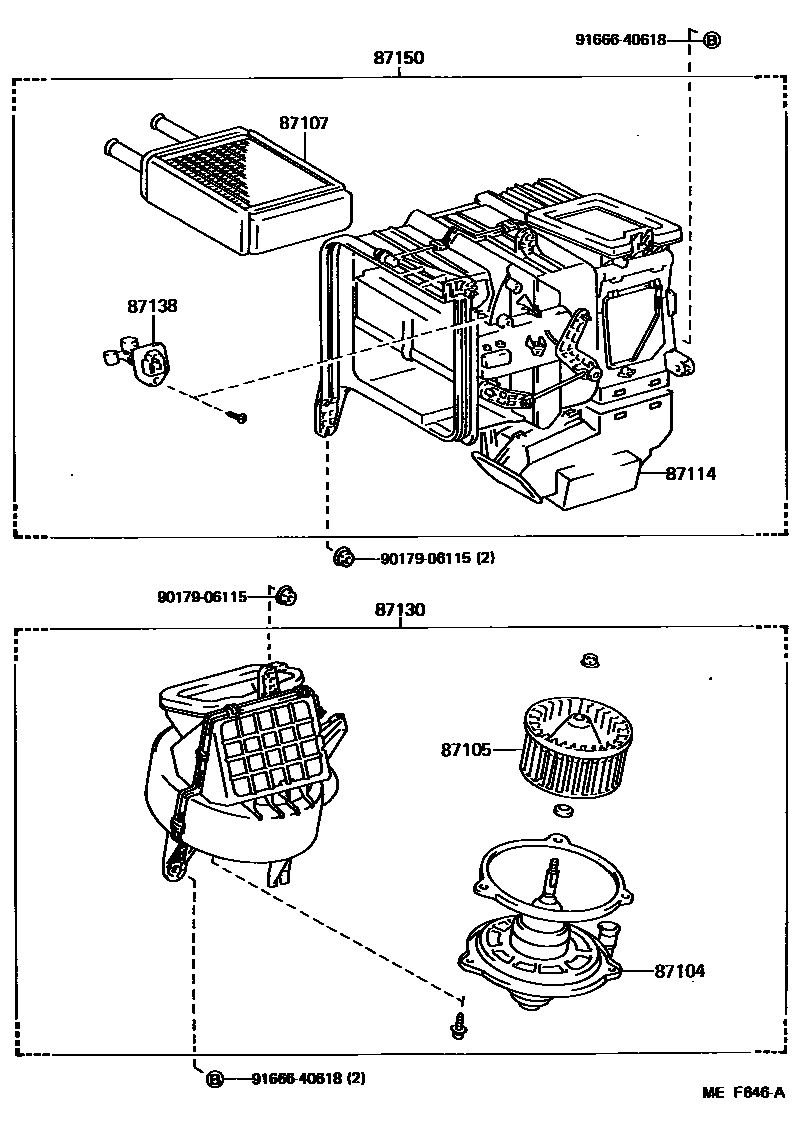

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-10150iEP70,71..RHD198410-198912

main87104-10170iEP7#..LHD198410-198912

main87104-89110iEP7#..LHD198410-198612

W/AIR CONDITIONER

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iEP7#..LHD198410-198912

W/AIR CONDITIONER

main87105-14030iEP70,71..RHD198410-198912

W/AIR CONDITIONER

main87134-30010iEP7#..LHD198410-198912

main87134-30020iEP70,71..RHD198410-198912

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-10180iEP70,71..RHD198612-198912

W/AIR CONDITIONER

sub87107-10190

main87107-10200iEP7#..LHD198410-198912

main87107-10210iEP7#..LHD198612-198912

W/AIR CONDITIONER

main87107-10220iEP70,71..RHD198410-198912

sub87107-10190

87114COVER, HEATER

main87114-10030iEP7#..LHD198410-198912

main87114-10040iEP70,71..RHD198511-198912

87130BLOWER ASSY, HEATER, FRONT

main87130-10110iEP70,71..RHD198410-198612

W/AIR CONDITIONER

main87130-10111iEP70,71..RHD198612-198912

W/AIR CONDITIONER

sub87130-10171

main87130-10120iEP70,71..RHD198410-198612

main87130-10121iEP70,71..RHD198612-198912

sub87130-10171

main87130-10130iEP7#..LHD198410-198612

main87130-10131iEP7#..LHD198612-198912

main87130-10140iEP7#..LHD198410-198612

W/AIR CONDITIONER

main87130-10141iEP7#..LHD198612-198912

W/AIR CONDITIONER

87138RESISTOR, HEATER BLOWER

main87138-10090iEP70,71..RHD198410-198912

W/AIR CONDITIONER

main87138-10100iEP70,71..RHD198410-198912

main87138-10110iEP7#..LHD198410-198912

W/AIR CONDITIONER

main87138-10120iEP7#..LHD198410-198912

87150RADIATOR ASSY, HEATER

main87150-10130iEP70,71..RHD198410-198912

W/AIR CONDITIONER

sub87150-10210

main87150-10150iEP7#..LHD198410-198912

main87150-10160iEP7#..LHD198612-198912

W/AIR CONDITIONER

main87150-10170iEP70,71..RHD198410-198912

main87150-10180iEP7#..LHD198410-198612

W/AIR CONDITIONER

9017906115

main90179-06115

9166640618

main91666-40618

9 parts on this diagram · 2 diagrams in section
