FUEL TANK & TUBE

0001 1 0002 1

6709

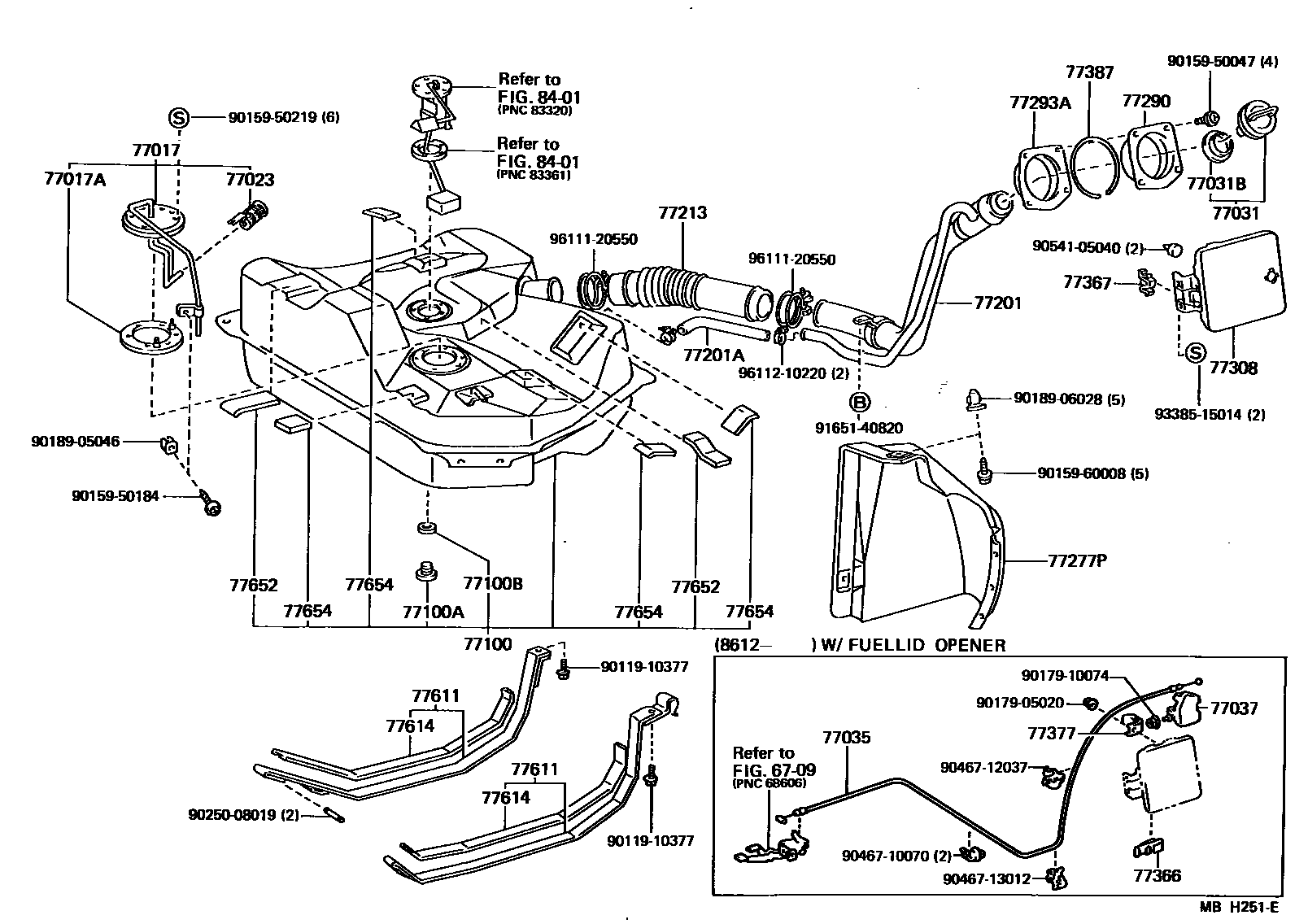

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-10020iEP7#¥5,800198410-198912

77017AGASKET, FUEL TANK VENT

main77169-32010iEP7#¥400198410-198912

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iEP7#¥1,020198410-198912

77031CAP ASSY, FUEL TANK

main77310-12100iEP7#¥2,320198410-198912

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iEP7#¥310198410-198912

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-10020iEP70,71..RHD¥3,920198612-198912

sub77035-12230¥2,490

main77035-10040iEP7#..LHD¥1,810198612-198912

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12040iEP7#¥1,450198612-198912

sub77037-38010¥1,520

77100TANK ASSY, FUEL

main77001-10914iEP7#¥34,400198410-198706

sub77001-10918¥34,600

main77001-10915iEP7#¥34,600198706-198912

77100APLUG(FOR FUEL TANK)

main90341-20003iEP7#¥380198410-198412

sub90341-20004¥360

main90341-20004iEP7#¥360198412-198912

77100BGASKET(FOR FUEL TANK)

main90430-20006iEP7#¥210198410-198412

main90430-20007iEP7#¥220198412-198912

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10100iEP7#¥18,300198410-198912

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22913iEP7#¥1,000198410-198912

L=300

sub90445-22024¥1,220

77213HOSE, FUEL TANK SUB INLET

main77213-10060iEP7#¥5,800198410-198912

77277PPROTECTOR(FOR FUEL RETURN HOSE)

main77277-10020iEP7#¥1,620198410-198912

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16010iEP7#¥2,230198410-198912

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-16010iEP7#¥1,300198410-198912

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-10030iEP7#¥2,780198410-198506

main77350-10031iEP7#¥2,690198506-198912

main77350-10040iEP7#¥3,150198612-198912

W/FUEL LID OPENER

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-10010iEP7#¥450198612-198912

77367STOPPER, FUEL FILLER OPENING LID

main77358-10010iEP7#¥210198410-198912

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iEP7#¥700198612-198912

77387RING, FUEL INLET BOX

main77391-14020iEP7#¥160198410-198912

77611BAND, FUEL TANK

main77601-10060iEP7#¥2,830198410-198912

RH

sub77601-10070¥2,860

main77602-10060iEP7#¥2,860198410-198912

LH

77614SEAT, FUEL TANK BAND

main77681-10010iEP7#¥820198410-198603

RH

sub77682-10010

main77681-10010iEP7#¥820198603-198912

sub77682-10010

main77682-10010iEP7#198410-198603

LH

77652CUSHION, FUEL TANK, NO.1

main77651-10050iEP7#¥750198410-198912

77654CUSHION, FUEL TANK, NO.2

main77652-10060iEP7#¥620198410-198912

8401

9011910377

main90119-10377¥250

9015950047

main90159-50047¥130

9015950184

main90159-50184¥110

9015950219

main90159-50219¥70

9015960008

main90159-60008¥70

9017905020

main90179-05020¥140

9017910074

main90179-10074¥110

9018905046

main90189-05046¥130

9018906028

main90189-06028¥110

9025008019

main90250-08019¥220

9046710070

main90467-10070¥120

9046712037

main90467-12037¥180

9046713012

main90467-13012¥130

9054105040

main90541-05040¥190

9165140820

main91651-40820¥90

9338515014

main93385-15014¥110

9611120550

main96111-20550¥440

9611210220

main96112-10220

45 parts on this diagram · 2 diagrams in section
