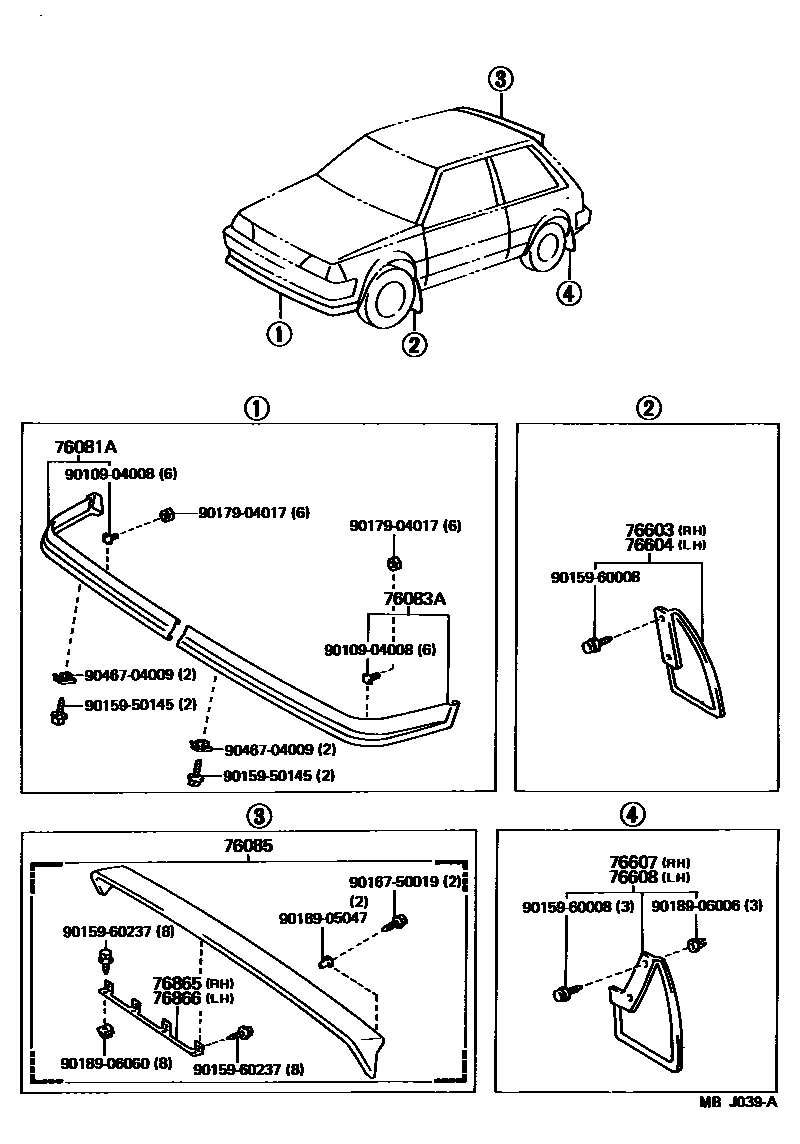

MUDGUARD & SPOILER

76081ASPOILER SUB-ASSY, FRONT RH

main76081-10040iEP70..RHD..5F198612-198912

76083ASPOILER SUB-ASSY, FRONT LH

main76083-10040iEP70..RHD..5F198612-198912

76085SPOILER SUB-ASSY, REAR

main76085-19026iEP70..RHD..5F198612-198912

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-19135iEP7#198410-198912

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-19135iEP7#198410-198912

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-19245iEP7#198410-198612

sub76607-19455

main76607-19455iEP7#198612-198912

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-19245iEP7#198410-198612

sub76608-19455

main76608-19455iEP7#198612-198912

76865RETAINER, REAR SPOILER, NO.1

main76865-10010iEP70..RHD..5F198612-198912

76866RETAINER, REAR SPOILER, NO.2

main76866-10010iEP70..RHD..5F198612-198912

9010904008

main90109-04008

9015950145

main90159-50145

9015960008

main90159-60008

9015960237

main90159-60237

9016750019

main90167-50019

9017904017

main90179-04017

9018905047

main90189-05047

9018906006

main90189-06006

9018906060

main90189-06060

9046704009

main90467-04009

19 parts on this diagram · 1 diagram in section
