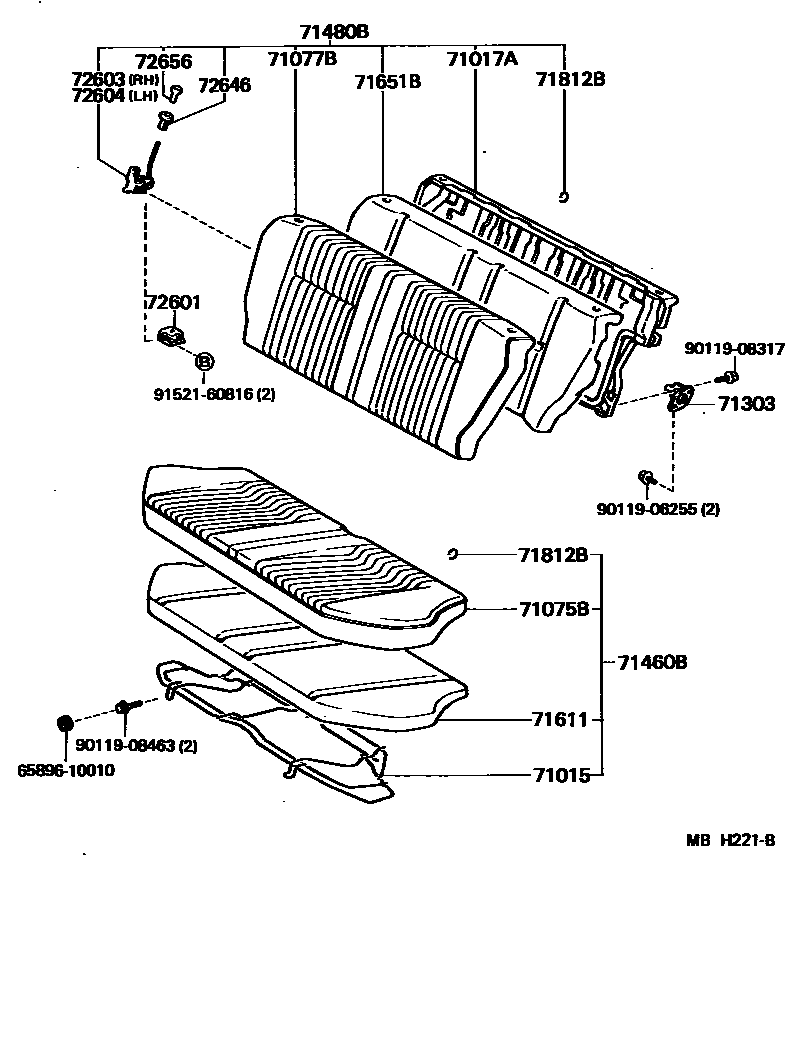

REAR SEAT & SEAT TRACK

0001 1BENCH SEAT 0002 1SEPARATE SEAT

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-10070iEP7#198410-198510

main71015-10071iEP70,71198510-198602

sub71015-10072

main71015-10072iEP70,71198602-198912

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-10050iEP70,71198410-198912

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-10040iEP70,71198410-198912

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-10010-03iEP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71065-10050-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71065-10050-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

main71075-10670-03iEP70,71198410-198912

PF,GRAY,GRAY

main71075-10670-04iEP70,71198410-198612

PF,BLUE,BLUE

main71075-10670-06iEP70,71198612-198912

PF,BROWN,BROWN

main71075-10720-03iEP70,71..XL198410-198601

FULL FB,GRAY,GRAY

main71075-10720-04iEP70,71..XL198410-198601

FULL FB,BLUE,BLUE

main71075-10720-13iEP70,71..XL198601-198612

FULL FB,GRAY,GRAY

main71075-10720-14iEP70,71..XL198601-198612

FULL FB,BLUE,BLUE

main71075-10800-03iEP70,71198410-198601

SEMI FB,GRAY,GRAY

main71075-10800-04iEP70,71198410-198601

SEMI FB,BLUE,BLUE

main71075-10800-13iEP70,71198601-198612

SEMI FB,GRAY,GRAY

main71075-10800-14iEP70,71198601-198612

SEMI FB,BLUE,BLUE

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-10830-03iEP70,71198410-198912

PF,GRAY,GRAY

main71077-10830-04iEP70,71198410-198612

PF,BLUE,BLUE

main71077-10830-06iEP70,71198612-198912

PF,BROWN,BROWN

main71077-10850-03iEP70..RHD..5D..5F198409-198601

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71077-10850-04iEP70..RHD..5D..5F198409-198601

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71077-10850-13iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71077-10850-14iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71077-1C110-03iEP70,71198410-198601

SEMI FB,GRAY,GRAY

main71077-1C110-04iEP70,71198410-198601

SEMI FB,BLUE,BLUE

main71077-1C110-13iEP70,71198601-198612

SEMI FB,GRAY,GRAY

main71077-1C110-14iEP70,71198601-198612

SEMI FB,BLUE,BLUE

main71077-1C230-03iEP70..RHD..5F198612-198912

FB,GRAY,GRAY

main71077-1C230-06iEP70..RHD..5F198612-198912

FB,BROWN,BROWN

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-10020iEP70,71198410-198912

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-10650-03iEP70,71198410-198602

PF,GRAY,GRAY

sub71460-10651

main71460-10650-04iEP70,71198410-198602

PF,BLUE,BLUE

sub71460-10651

main71460-10651-03iEP70,71198602-198912

PF,GRAY,GRAY

main71460-10651-04iEP70,71198602-198612

PF,BLUE,BLUE

main71460-10651-06iEP70,71198612-198912

PF,BROWN,BROWN

main71460-10720-03iEP70,71..XL198410-198602

FULL FB,GRAY,GRAY

sub71460-10721

main71460-10720-04iEP70,71..XL198410-198602

FULL FB,BLUE,BLUE

sub71460-10721

main71460-10721-03iEP70,71..XL198602-198612

FULL FB,GRAY,GRAY

main71460-10721-04iEP70,71..XL198602-198612

FULL FB,BLUE,BLUE

main71460-10780-03iEP70,71198410-198602

SEMI FB,GRAY,GRAY

sub71460-10781

main71460-10780-04iEP70,71198410-198602

SEMI FB,BLUE,BLUE

sub71460-10781

main71460-10781-03iEP70,71198602-198612

SEMI FB,GRAY,GRAY

main71460-10781-04iEP70,71198602-198612

SEMI FB,BLUE,BLUE

main71560-10020-03iEP71..5F198612-198912

S-PACKAGE,FB,GRAY,GRAY

main71560-10030-03iEP70,71..XL198612-198912

FB,GRAY,GRAY

main71560-10030-06iEP70,71..XL198612-198912

FB,BROWN,BROWN

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-10850-03iEP70..RHD..5F198612-198912

FB,GRAY,GRAY

main71480-10850-06iEP70..RHD..5F198612-198912

FB,BROWN,BROWN

main71480-1C080-03iEP70,71198410-198912

PF,GRAY,GRAY

main71480-1C080-04iEP70,71198410-198612

PF,BLUE,BLUE

main71480-1C080-06iEP70,71198612-198912

PF,BROWN,BROWN

main71480-1C090-03iEP70..RHD..5D..5F198409-198601

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71480-1C090-04iEP70..RHD..5D..5F198409-198601

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71480-1C090-13iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,GRAY,GRAY

main71480-1C090-14iEP70..RHD..5D..5F198601-198612

MALAYSIA SPEC,FULL FB,BLUE,BLUE

main71480-1C220-03iEP70,71198410-198601

SEMI FB,GRAY,GRAY

main71480-1C220-04iEP70,71198410-198601

SEMI FB,BLUE,BLUE

main71480-1C220-13iEP70,71198601-198612

SEMI FB,GRAY,GRAY

main71480-1C220-14iEP70,71198601-198612

SEMI FB,BLUE,BLUE

71611PAD, REAR SEAT CUSHION

main71611-10080iEP70,71198410-198912

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-10230iEP70,71198410-198912

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iEP70,71198410-198912

sub90468-18008

72601STRIKER SUB-ASSY, REAR SEAT LOCK

main72601-10060iEP70,71198410-198912

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-10050iEP70,71198612-198912

main72630-10070iEP70,71198410-198612

sub72630-10050

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-10040iEP70,71198612-198912

main72640-10060iEP70,71198410-198612

sub72640-10040

72646GROMMET, REAR SEATBACK STOP BUTTON

main72655-20020-23iEP70,71198410-198912

GRAY,GRAY

sub72655-20020

sub72646-20050

main72655-20020-54iEP70,71198410-198612

BLUE,BLUE

sub72655-20020

sub72646-20050

main72655-20020-56iEP70,71198612-198912

BROWN,BROWN

sub72655-20020

sub72646-20050

72656BUTTON, REAR SEATBACK STOP RELEASE

main72656-20010-23iEP70,71198410-198912

GRAY,GRAY

sub72656-20010

main72656-20010-54iEP70,71198410-198612

BLUE,BLUE

sub72656-20010

main72656-20010-56iEP70,71198612-198912

BROWN,BROWN

sub72656-20010

6589610010CAP, SET BOLT

main65896-10010

9011906255

main90119-06255

9011908317

main90119-08317

9011908463

main90119-08463

9152160816

main91521-60816

21 parts on this diagram · 2 diagrams in section
