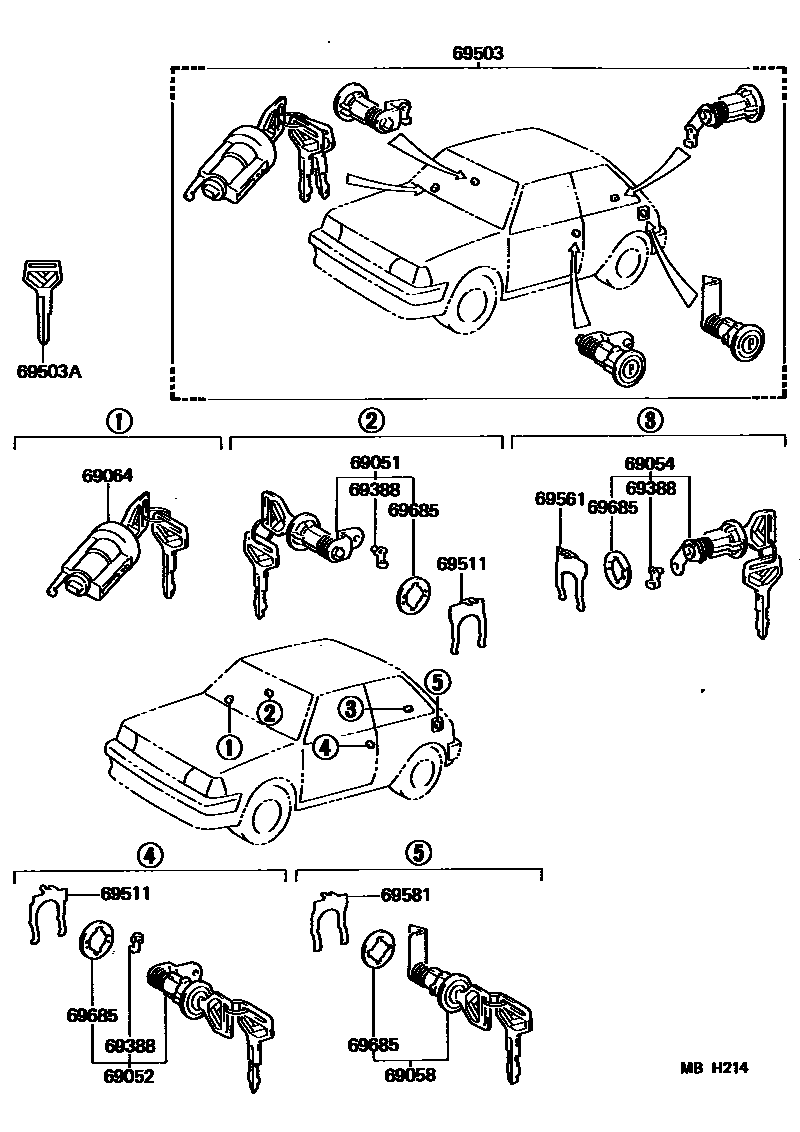

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-10080iEP7#198410-198612

sub69051-10081

main69051-10160iEP7#198612-198912

sub69051-60081

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-10080iEP7#198410-198612

sub69052-10081

main69052-10160iEP7#198612-198912

sub69052-60081

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-10060iEP70,71..RHD;EP70..LHD..STD198410-198612

sub69055-10061

main69055-10070iEP76198512-198612

sub69055-10110

main69055-10160iEP7#198612-198912

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-10130iEP7#198612-198912

sub69058-12110

main69058-12100iEP7#198502-198612

sub69058-20041

main69058-16030iEP7#198410-198502

sub69058-16091

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-10140iEP7#198612-198912

sub69057-12130

main69057-17020iEP7#198410-198612

sub69057-17010

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080×2iEP7#198410-198912

FR DOOR RH,BACK DOOR

main69759-20090iEP7#198410-198912

FR DOOR LH

69503CYLINDER SET, LOCK

main69005-10090iEP70,71..LHD..XL198410-198612

main69005-10130iEP70,71..RHD;EP70..LHD..STD198410-198612

main69005-10131iEP7#198612-198912

main69005-10170iEP7#198612-198912

W/FUEL LID OPENER

69503AKEY, BLANK

main90999-00085iEP7#198410-198912

MASTER KEY

main90999-00128iEP7#198612-198912

MASTER KEY,W(*68),W/PROTECTOR

sub90999-00212

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010×2iEP7#198410-198912

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69511-32010iEP7#198410-198912

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iEP7#198410-198912

69685PAD, LOCK CYLINDER

main69513-32010×3iEP7#198410-198912

FR DOOR,FUEL LID

main69563-16010iEP7#198410-198912

BACK DOOR

12 parts on this diagram · 1 diagram in section
