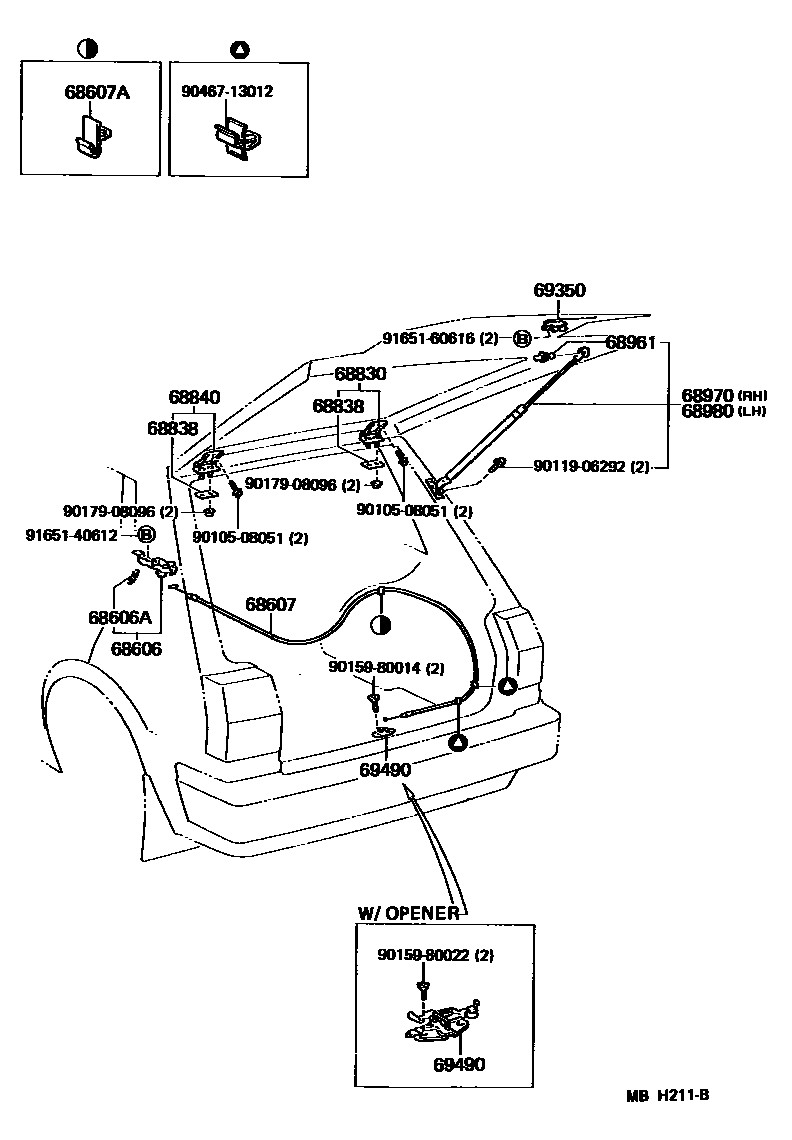

BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-10060iEP70,71..RHD..XL198410-198912

main64606-10070iEP7#..LHD198612-198912

main64606-12050iEP7#..LHD198612-198912

W/FUEL LID OPENER

main64606-12060iEP70,71..RHD198612-198912

W/FUEL LID OPENER

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034iEP70,71..RHD..XL198410-198912

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-10060iEP70,71..RHD..XL198410-198912

sub64607-10100

main64607-10080iEP7#..LHD198612-198912

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iEP70,71..RHD..XL198410-198907

main69749-30020iEP7#198907-198912

68830HINGE ASSY, BACK DOOR, RH

main68801-10020iEP7#198410-198808

sub68801-10021

main68801-10021iEP7#198808-198912

68838PAD, BACK DOOR HINGE, NO.1

main68838-10010iEP7#198410-198808

sub68838-10011

main68838-10011iEP7#198808-198912

68840HINGE ASSY, BACK DOOR, LH

main68801-10020iEP7#198410-198808

sub68801-10021

main68801-10021iEP7#198808-198912

68961BOLT, BACK DOOR STAY

main68961-10030iEP7#198410-198912

68970STAY ASSY, BACK DOOR, RH

main68950-19525iEP7#198410-198807

sub68950-19526

main68950-19526iEP7#198807-198912

68980STAY ASSY, BACK DOOR

main68960-19255iEP7#198410-198807

sub68960-19256

main68960-19256iEP7#198807-198912

69350LOCK ASSY, BACK DOOR

main69350-10060iEP7#198410-198912

69490STRIKER ASSY, BACK DOOR LOCK

main69430-10040iEP7#198410-198912

main69430-10050iEP70,71..RHD..XL198410-198601

W/OPENER

sub69430-10051

main69430-10051iEP70,71..RHD..XL198601-198912

W/OPENER

9010508051

main90105-08051

9011906292

main90119-06292

9015980014

main90159-80014

9015980022

main90159-80022

9017908096

main90179-08096

9046713012

main90467-13012

9165140612

main91651-40612

9165160616

main91651-60616

20 parts on this diagram · 1 diagram in section
