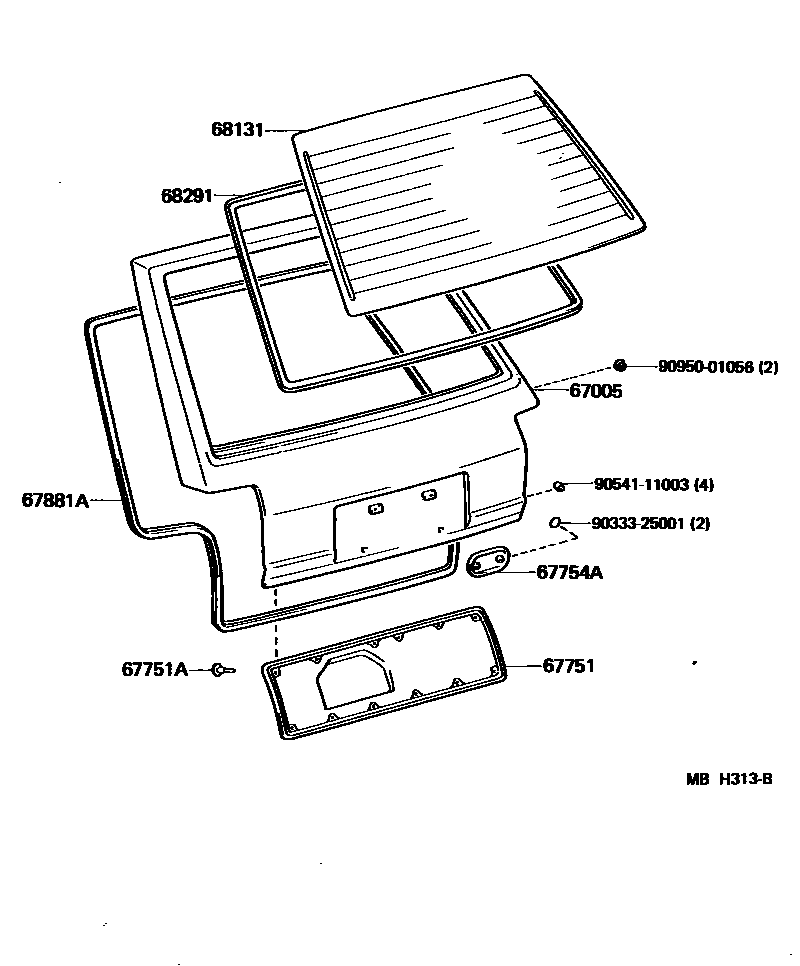

BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
W/O *RW,W/*DEF
W/O *RW,W/*DEF
W/*RW,*DEF
W/*RW,*DEF
W/*RW,W/O *DEF
W/*RW,W/O *DEF
W/O *RW,*DEF
W/*RW,*DEF,RR SPOILER
MALAYSIA,INDONESIA,W/*RW,*DEF
THAILAND SPEC
INDONESIA SPEC
W/*HSL
W/RR SPOILER & *HSL
67751BOARD, BACK DOOR TRIM
GRAY,GRAY
BLUE,BLUE
BROWN,BROWN
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67754ACOVER, BACK DOOR HOLE
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=3.5,*EHTT,T=3.5
*TT,T=3.5,*TT,T=3.5
68291WEATHERSTRIP, BACK DOOR GLASS
CKD
9033325001
main90333-25001
9054111003
main90541-11003
9095001056
main90950-01056
10 parts on this diagram · 1 diagram in section
