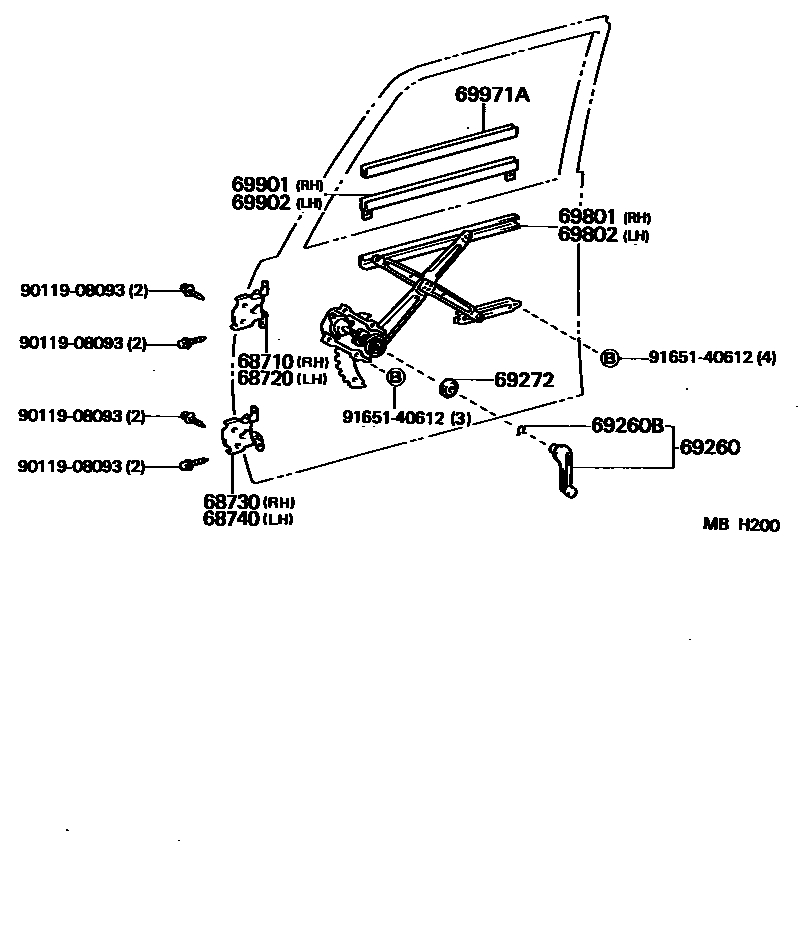

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12090iEP7#198410-198912

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12090iEP7#198410-198912

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iEP7#198410-198912

sub68730-60020

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iEP7#198410-198912

sub68740-60020

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-16×2iEP7#198612-198912

BROWN,BROWN

sub69260-16010

main69260-10040-24×2iEP7#198410-198612

BLUE,BLUE

sub69260-16010

main69260-10040-33×2iEP7#198410-198612

GRAY,SHADOW GRAY

sub69260-16010

main69260-10040-43×2iEP7#198612-198912

GRAY,GRAY

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iEP7#198410-198912

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iEP7#198410-198912

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-10060iEP7#198410-198907

main69810-10061iEP7#198907-198912

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-10070iEP7#198410-198907

main69820-10071iEP7#198907-198912

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-10060iEP7#198410-198912

T=3.5 GLASS

main69901-22040iEP70..RHD..5D..5F198410-198612

T=4.0 GLASS

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-10060iEP7#198410-198912

T=3.5 GLASS

main69901-22040iEP70..RHD..5D..5F198410-198612

T=4.0 GLASS

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010×2iEP7#198410-198912

sub69971-95110

9011908093

main90119-08093

9165140612

main91651-40612

14 parts on this diagram · 1 diagram in section
