DECK BOARD & DECK TRIM COVER

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-10010-03iEP70,71..RHD..5D..5F198502-198912

INDONESIASPEC,GRAY,GRAY

main64033-10010-04iEP70,71..RHD..5D..5F198502-198612

INDONESIA SPEC,BLUE,BLUE

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-10010-03iEP70,71..RHD..5D..5F198502-198912

INDONESIA SPEC,GRAY,GRAY

main64033-10010-04iEP70,71..RHD..5D..5F198502-198612

INDONESIA SPEC,BLUE,BLUE

64303BRACKET SUB-ASSY, PACKAGE TRAY, RH

main64301-10050-03iEP70,71..RHD..5D..5F198502-198912

INDONESIA,W/RR SPEAKER,GRAY,GRAY

main64301-10050-04iEP70,71..RHD..5D..5F198502-198612

INDONESIA,W/RR SPEAKER,BLUE,BLUE

main64310-10050-03iEP70,71198410-198912

GRAY,GRAY

sub64310-10050

main64310-10050-04iEP70,71198410-198612

BLUE,BLUE

sub64310-10050

main64310-10050-06iEP70,71198612-198912

BROWN,BROWN

sub64310-10050

main64310-10060-03iEP71..3D198811-198912

W/RR 3POINT SEAT BELT,GRAY,GRAY

main64310-10060-03iEP70,71..LHD198410-198912

W/RR 3-POINT SEAT BELT,GRAY,GRAY

main64310-10060-04iEP70,71..LHD198410-198612

W/RR 3-POINT SEAT BELT,BLUE,BLUE

main64310-10060-06iEP70,71..LHD198612-198912

W/RR 3-POINT SEAT BELT,BROWN,BROWN

main64310-10060-06iEP71..3D198811-198912

W/RR 3POINT SEAT BELT,BROWN,BROWN

64304BRACKET SUB-ASSY, PACKAGE TRAY, LH

main64302-10050-03iEP70,71..RHD..5D..5F198502-198912

INDONESIA,W/RR SPEAKER,GRAY,GRAY

main64302-10050-04iEP70,71..RHD..5D..5F198502-198612

INDONESIA,W/RR SPEAKER,BLUE,BLUE

main64320-10050-03iEP70,71198410-198912

GRAY,GRAY

sub64320-10050

main64320-10050-04iEP70,71198410-198612

BLUE,BLUE

sub64320-10050

main64320-10050-06iEP70,71198612-198912

BROWN,BROWN

sub64320-10050

main64320-10060-03iEP71..3D198811-198912

W/RR 3POINT SEAT BELT,GRAY,GRAY

main64320-10060-03iEP70,71..LHD198410-198912

W/RR 3-POINT SEAT BELT,GRAY,GRAY

main64320-10060-04iEP70,71..LHD198410-198612

W/RR 3-POINT SEAT BELT,BLUE,BLUE

main64320-10060-06iEP71..3D198811-198912

W/RR 3POINT SEAT BELT,BROWN,BROWN

main64320-10060-06iEP70,71..LHD198612-198912

W/RR 3-POINT SEAT BELT,BROWN,BROWN

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-10030iEP70,71198410-198710

sub64306-12030

main64306-12030iEP70,71198710-198912

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-10110-03iEP70,71198410-198612

GRAY,GRAY

sub64330-10110

main64330-10110-04iEP70,71198410-198612

BLUE,BLUE

sub64330-10110

main64330-10120-03iEP70,71..RHD..5D..5F198502-198612

INDONESIA,W/RR SPEAKER,GRAY,GRAY

sub64330-10120

main64330-10130-03iEP70,71198612-198912

GRAY,GRAY

sub64330-10130

main64330-10130-06iEP70,71198612-198912

BROWN,BROWN

sub64330-10130

main64330-10140-03iEP70,71..RHD..5D..5F198612-198912

W/RR SPEAKER,GRAY,GRAY

sub64330-10140

main64330-10140-06iEP70,71..RHD..5D..5F198612-198912

W/RR SPEAKER,BROWN,BROWN

sub64330-10140

main64330-10190-03iEP71..3D198906-198912

W/*HSL,GRAY,GRAY

sub64330-10190

main64330-10190-04iEP71..3D198906-198912

W/*HSL,BLUE

sub64330-10190

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-10050iEP70,71198410-198912

64387HANGER, PACKAGE TRAY TRIM

main64381-10010iEP70,71198410-198912

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64707-10020-03iEP7#198410-198912

GRAY,GRAY

main64707-10020-04iEP7#198410-198612

BLUE,BLUE

main64707-10020-06iEP7#198612-198912

BROWN,BROWN

64709DCOVER, BACK DOOR STRIKER

main64749-10010-03iEP7#198410-198912

GRAY,GRAY

main64749-10010-04iEP7#198410-198612

BLUE,BLUE

main64749-10010-06iEP7#198612-198912

BROWN,BROWN

64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)

main90950-01471-03iEP76198512-198912

GRAY,GRAY

main90950-01471-04iEP76198512-198612

BLUE,BLUE

main90950-01471-06iEP76198612-198912

BROWN,BROWN

64714CCOVER, DECK SIDE TRIM, RH

main64714-10050-03iEP7#198410-198608

GRAY,GRAY

sub64714-10051

main64714-10050-04iEP7#198410-198608

BLUE,BLUE

sub64714-10051

main64714-10051-03iEP7#198608-198912

GRAY,GRAY

sub64714-10051

main64714-10051-04iEP7#198608-198612

BLUE,BLUE

sub64714-10051

main64714-10051-06iEP7#198612-198912

BROWN,BROWN

sub64714-10051

main64714-10060-03iEP70,71..LHD..3D198410-198608

W/RR 3-POINT SEAT BELT,GRAY,GRAY

sub64714-10061

main64714-10060-04iEP70,71..LHD..3D198410-198608

W/RR 3-POINT SEAT BELT,BLUE,BLUE

sub64714-10061

main64714-10061-03iEP71..3D198811-198912

W/RR 3POINT SEAT BELT,GRAY,GRAY

main64714-10061-03iEP70,71..LHD..3D198608-198912

W/RR 3-POINT SEAT BELT,GRAY,GRAY

main64714-10061-04iEP70,71..LHD..3D198608-198612

W/RR 3-POINT SEAT BELT,BLUE,BLUE

main64714-10061-06iEP71..3D198811-198912

W/RR 3POINT SEAT BELT,BROWN,BROWN

main64714-10061-06iEP70,71..LHD..3D198612-198912

W/RR 3-POINT SEAT BELT,BROWN,BROWN

main64714-10070-03iEP70,71..LHD..5D198410-198608

W/RR 3-POINT SEAT BELT,GRAY,GRAY

sub64714-10071

main64714-10070-04iEP70,71..LHD..5D198410-198608

W/RR 3-POINT SEAT BELT,BLUE,BLUE

sub64714-10071

main64714-10071-03iEP70,71..LHD..5D198608-198912

W/RR 3-POINT SEAT BELT,GRAY,GRAY

main64714-10071-04iEP70,71..LHD..5D198608-198612

W/RR 3-POINT SEAT BELT,BLUE,BLUE

main64714-10071-06iEP70,71..LHD..5D198612-198912

W/RR 3-POINT SEAT BELT,BROWN,BROWN

main64714-10080-03iEP70,71..RHD..5D..5F198502-198608

INDONESIA,W/RR SPEAKER,GRAY,GRAY

sub64714-10081

main64714-10080-04iEP70,71..RHD..5D..5F198502-198608

INDONESIA,W/RR SPEAKER,BLUE,BLUE

sub64714-10081

main64714-10081-03iEP70,71..RHD..5D..5F198608-198912

INDONESIA,W/RR SPEAKER,GRAY,GRAY

main64714-10081-04iEP70,71..RHD..5D..5F198608-198612

INDONESIA,W/RR SPEAKER,BLUE,BLUE

main64714-10081-06iEP70,71..RHD..5D..5F198612-198912

INDONESIA,W/RR SPEAKER,BROWN,BROWN

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-05004-04iEP7#198410-198612

TYPE A,BLUE,BLUE

sub90467-05004

main90467-05004-13iEP7#198410-198912

TYPE A,GRAY,GRAY

sub90467-05004

main90467-05004-16iEP7#198612-198912

TYPE A,BROWN,BROWN

sub90467-05004

main90467-07045-03iEP7#198410-198912

TYPE B,GRAY,GRAY

sub90467-07045

main90467-07045-04iEP7#198410-198612

TYPE B,BLUE,BLUE

sub90467-07045

main90467-07045-06iEP7#198612-198912

TYPE B,BROWN,BROWN

sub90467-07045

main90467-10023iEP7#198410-198912

TYPE C

64715CCOVER, DECK SIDE TRIM, LH

main64715-10040-03iEP7#198410-198608

GRAY,GRAY

sub64715-10041

main64715-10040-04iEP7#198410-198608

BLUE,BLUE

sub64715-10041

main64715-10041-03iEP7#198608-198912

GRAY,GRAY

sub64715-10041

main64715-10041-04iEP7#198608-198612

BLUE,BLUE

sub64715-10041

main64715-10041-06iEP7#198612-198912

BROWN,BROWN

sub64715-10041

main64715-10050-03iEP70,71..LHD..3D198410-198608

W/RR 3-POINT SEAT BELT,GRAY,GRAY

sub64715-10051

main64715-10050-04iEP70,71..LHD..3D198410-198608

W/RR 3-POINT SEAT BELT,BLUE,BLUE

sub64715-10051

main64715-10051-03iEP71..3D198811-198912

W/RR 3POINT SEAT BELT,GRAY,GRAY

main64715-10051-03iEP70,71..LHD..3D198608-198912

W/RR 3-POINT SEAT BELT,GRAY,GRAY

main64715-10051-04iEP70,71..LHD..3D198608-198612

W/RR 3-POINT SEAT BELT,BLUE,BLUE

main64715-10051-06iEP70,71..LHD..3D198612-198912

W/RR 3-POINT SEAT BELT,BROWN,BROWN

main64715-10051-06iEP71..3D198811-198912

W/RR 3POINT SEAT BELT,BROWN,BROWN

main64715-10060-03iEP70,71..LHD..5D198410-198608

W/RR 3-POINT SEAT BELT,GRAY,GRAY

sub64715-10061

main64715-10060-04iEP70,71..LHD..5D198410-198608

W/RR 3-POINT SEAT BELT,BLUE,BLUE

sub64715-10061

main64715-10061-03iEP70,71..LHD..5D198608-198912

W/RR 3-POINT SEAT BELT,GRAY,GRAY

main64715-10061-04iEP70,71..LHD..5D198608-198612

W/RR 3-POINT SEAT BELT,BLUE,BLUE

main64715-10061-06iEP70,71..LHD..5D198612-198912

W/RR 3-POINT SEAT BELT,BROWN,BROWN

main64715-10070-03iEP70,71..RHD..5D..5F198502-198608

INDONESIA,W/RR SPEAKER,GRAY,GRAY

sub64715-10071

main64715-10070-04iEP70,71..RHD..5D..5F198502-198608

INDONESIA,W/RR SPEAKER,BLUE,BLUE

sub64715-10071

main64715-10071-03iEP70,71..RHD..5D..5F198608-198912

INDONESIA,W/RR SPEAKER,GRAY,GRAY

main64715-10071-04iEP70,71..RHD..5D..5F198608-198612

INDONESIA,W/RR SPEAKER,BLUE,BLUE

main64715-10071-06iEP70,71..RHD..5D..5F198612-198912

INPONESIA,W/RR SPEAKER,BROWN,BROWN

64716DCOVER, DECK TRIM, REAR

main64716-10060-03iEP70,71..XL198410-198912

W/LARGE TYPE,GRAY,GRAY

sub64716-10060

main64716-10060-04iEP70,71..XL198410-198612

W/LARGE TYPE,BLUE,BLUE

sub64716-10060

main64716-10060-06iEP70,71..XL198612-198912

W/LARGE TYPE,BROWN,BROWN

sub64716-10060

main64716-10070iEP7#198511-198912

W/SMALL TYPE

64753AGARNISH, DECK SIDE, REAR, RH

main64753-10020-03iEP7#198410-198912

GRAY,GRAY

sub64753-10020

main64753-10020-04iEP7#198410-198612

BLUE,BLUE

sub64753-10020

main64753-10020-06iEP7#198612-198912

BROWN,BROWN

sub64753-10020

64754AGARNISH, DECK SIDE, REAR, LH

main64754-10020-03iEP7#198410-198912

GRAY,GRAY

sub64754-10020

main64754-10020-04iEP7#198410-198612

BLUE,BLUE

sub64754-10020

main64754-10020-06iEP7#198612-198912

BROWN,BROWN

sub64754-10020

64759ACOVER, SHOCK ABSORBER HEAD

main58731-10010-03iEP7#198410-198912

GRAY,GRAY

sub58731-10010

main58731-10010-04iEP7#198410-198612

BLUE,BLUE

sub58731-10010

main58731-10010-06iEP7#198612-198912

BROWN,BROWN

sub58731-10010

64770DCOVER ASSY, SPARE WHEEL

main64770-10020iEP7#198410-198601

main64770-10021iEP7#198601-198912

8602

9011906283

main90119-06283

9015940108

main90159-40108

9018905003

main90189-05003

9046805014

main90468-05014

9356054012

main93560-54012

9356755016

main93567-55016

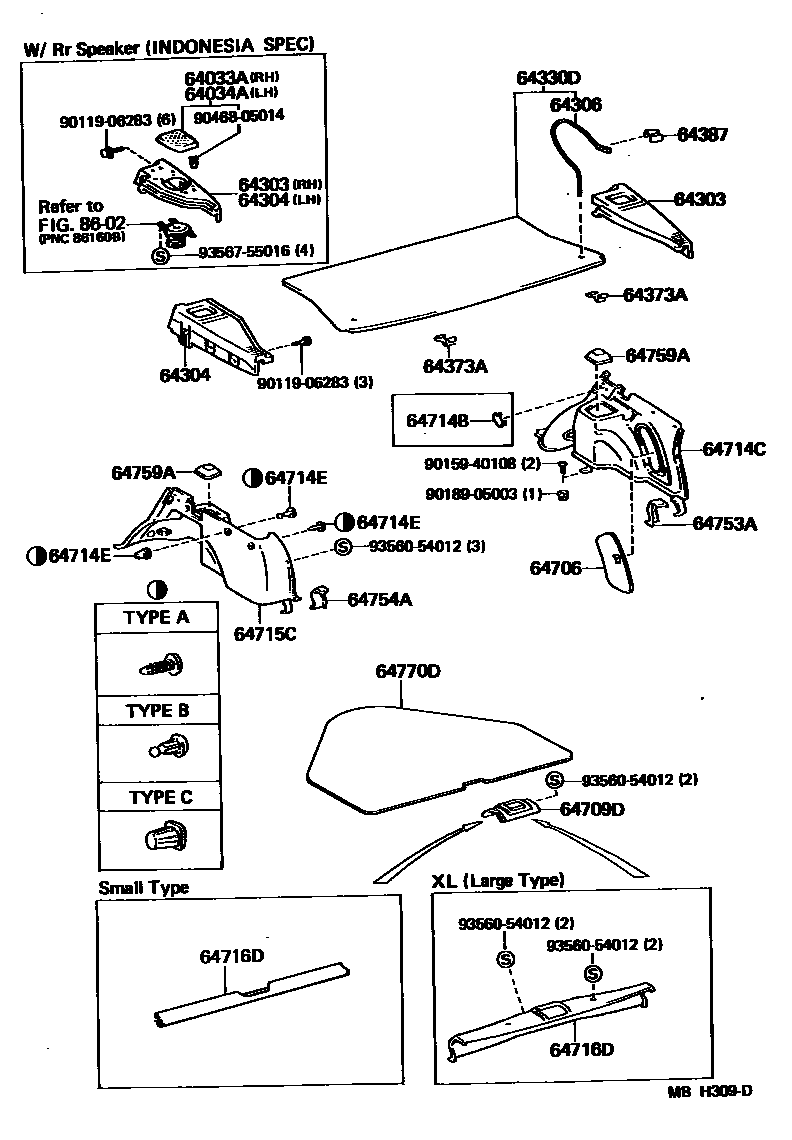

26 parts on this diagram · 1 diagram in section
