E
EPC Data

ROOF HEADLINING & SILENCER PAD

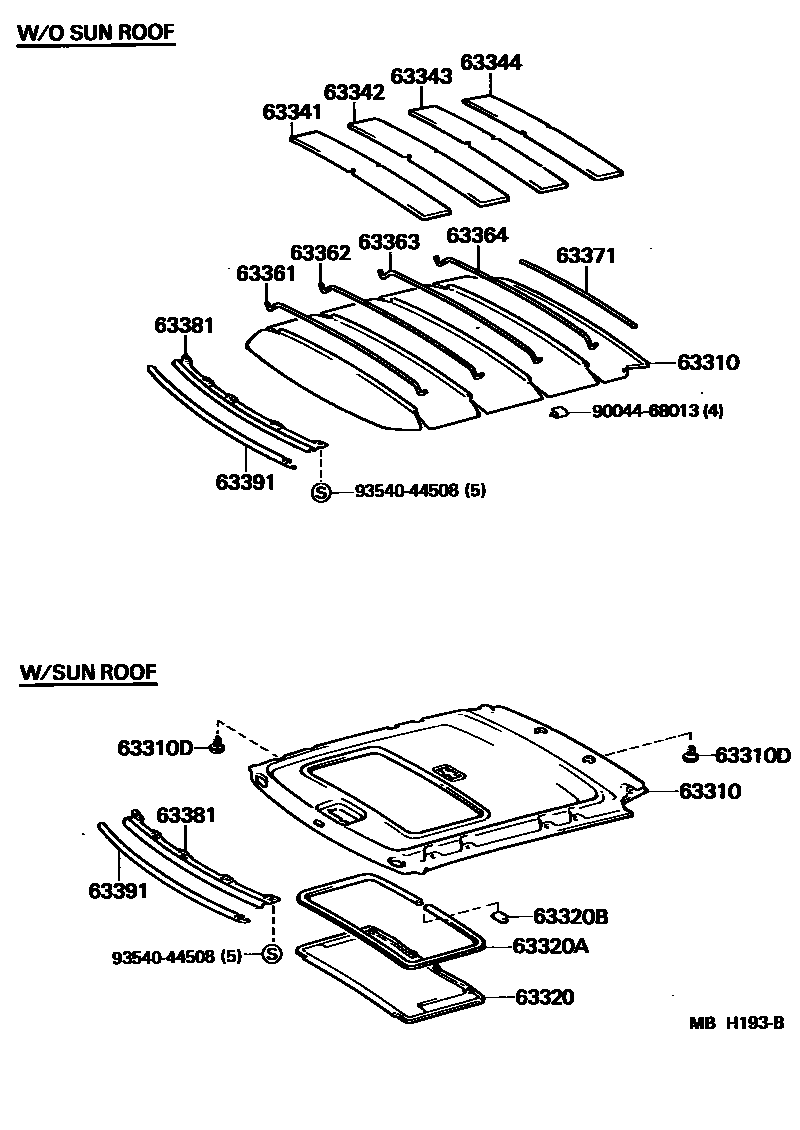

Parts diagram
63310HEADLINING ASSY, ROOF
main63310-10150-08i198410-198612
W/SUN ROOF,IVORY,IVORY
sub63310-10150
main63310-10151-08i198612-198912
W/SUN ROOF,IVORY,IVORY
main63310-10160-08i198410-198612
IVORY,IVORY
sub63310-10160
main63310-10160-18i198612-198912
IVORY,IVORY
sub63310-10160
main63310-10180-08i198410-198612
W/SUN ROOF,IVORY,IVORY
sub63310-10180
main63310-10181-08i198612-198912
W/SUN ROOF,IVORY,IVORY
main63310-10190-08i198410-198612
IVORY,IVORY
sub63310-10190
main63310-10190-18i198612-198912
IVORY,IVORY
sub63310-10190
main63310-10200-18i198807-198912
INDONESIA SPEC,IVORY,IVORY
sub63310-10200
63310DCLIP, ROOF HEADLINING
main90467-06048-08i198410-198612
FR SIDE,IVORY,IVORY
sub90467-06048
main90467-06048-38i198612-198912
FR SIDE,IVORY,IVORY
sub90467-06048
main90467-06052-08i198410-198612
RR SIDE,IVORY,IVORY
sub90467-06052
sub71731-26020
main90467-06052-18i198612-198912
RR SIDE,IVORY,IVORY
sub90467-06052
sub71731-26020
main90467-06057-08i198410-198612
RR CTR,IVORY,IVORY
sub90467-06057
main90467-06057-18i198612-198912
RR CTR,IVORY,IVORY
sub90467-06057
63320HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF
main63320-10020-08i198410-198612
IVORY,IVORY
sub63320-10020
main63320-10020-18i198612-198912
IVORY,IVORY
sub63320-10020
63320AMOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
main63318-10020-08i198410-198612
IVORY,IVORY
main63318-10020-18i198612-198912
IVORY,IVORY
63320BJOINT, SUN ROOF OPENING TRIM
main63319-14011i198410-198912
63341PAD, ROOF SILENCER, NO.1
main63341-10060i198410-198912
sub63341-16010
63342PAD, ROOF SILENCER, NO.2
main63341-10060i198410-198912
sub63341-16010
63343PAD, ROOF SILENCER, NO.3
main63341-10060i198410-198912
sub63341-16010
63344PAD, ROOF SILENCER, NO.4
main63341-10060i198410-198912
sub63341-16010
63361SUPPORT, ROOF HEADLINING, NO.1
main63361-10040i198410-198912
L=961
sub63361-10060
main63361-10050i198410-198912
L=964
sub63361-10060
main63361-10060i198410-198912
L=967
63362SUPPORT, ROOF HEADLINING, NO.2
main63362-10040i198410-198912
L=934
sub63362-10060
main63362-10050i198410-198912
L=937
sub63362-10060
main63362-10060i198410-198912
L=940
63363SUPPORT, ROOF HEADLINING, NO.3
main63362-10040i198410-198912
L=934
sub63362-10060
main63362-10050i198410-198912
L=937
sub63362-10060
main63362-10060i198410-198912
L=940
63364SUPPORT, ROOF HEADLINING, NO.4
main63362-10040i198410-198912
L=934
sub63362-10060
main63362-10050i198410-198912
L=937
sub63362-10060
main63362-10060i198410-198912
L=940
63371HOOK, ROOF HEADLINING SUPPORT
main63372-10030i198410-198912
63381RETAINER, HEADLINING, FRONT
main63381-10010i198410-198912
63391TRIM, ROOF HEADLINING, FRONT
main63391-10030-03i198410-198912
W/SUN ROOF,GRAY,GRAY
sub63391-10030
main63391-10030-04i198410-198612
W/SUN ROOF,BLUE,BLUE
sub63391-10030
main63391-10030-06i198612-198912
BROWN,BROWN
sub63391-10030
main63391-10040-03i198410-198912
GRAY,GRAY
sub63391-10040
sub63391-10030
main63391-10040-04i198410-198612
BLUE,BLUE
sub63391-10040
sub63391-10030
main63391-10040-06i198612-198912
BROWN,BROWN
sub63391-10040
sub63391-10030
9004468013
main90044-68013
9354044508
main93540-44508

18 parts on this diagram · 1 diagram in section
