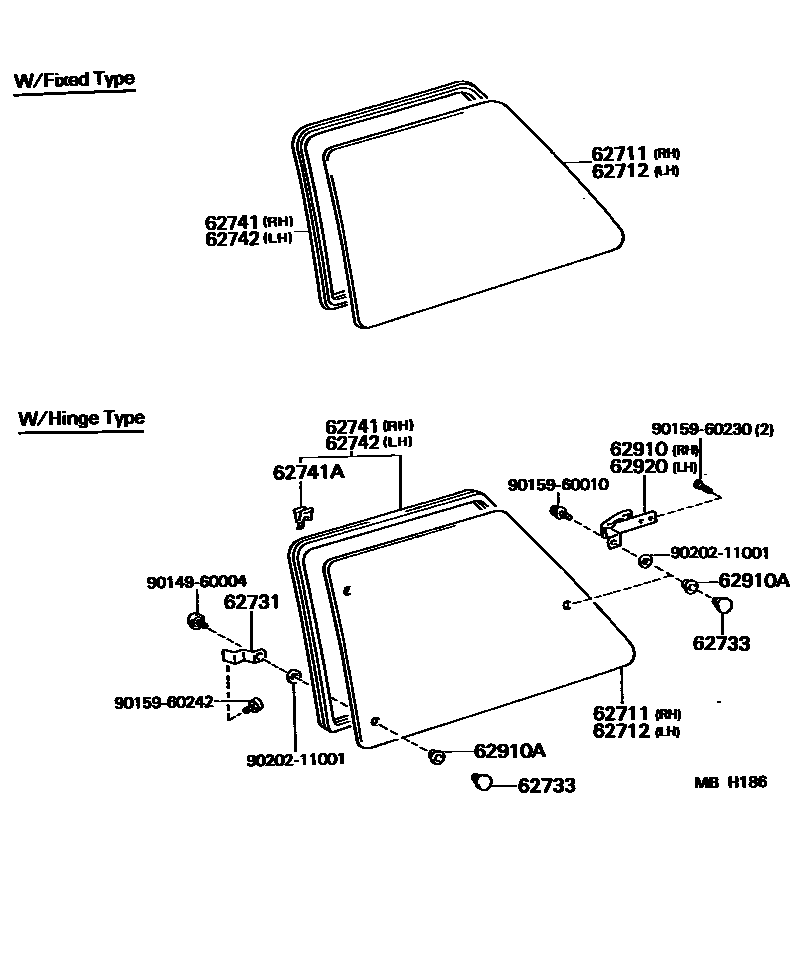

QUARTER WINDOW
62711GLASS, QUARTER WINDOW, RH
*TEM,T=3.5,W/FIXED TYPE,*TEM,T=3.5
*TEM,T=4.0,W/HINGE TYPE,*TEM,T=4.0
*TT,T=4.0,W/HINGE TYPE,*TT,T=4.0
62712GLASS, QUARTER WINDOW, LH
*TEM,T=3.5,W/FIXED TYPE,*TEM,T=3.5
*TT,T=4.0,W/HINGE TYPE,*TT,T=4.0
62731PLATE, QUARTER OR SIDE WINDOW HINGE
62733RETAINER, QUARTER OR SIDE WINDOW HINGE
62741WEATHERSTRIP, QUARTER WINDOW, RH
W/FIXED TYPE
W/HINGE TYPE
62741ACLIP, QUARTER WINDOW WEATHERSTRIP
62742WEATHERSTRIP, QUARTER WINDOW, LH
W/FIXED TYPE
W/HINGE TYPE
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62920LOCK ASSY, QUARTER WINDOW, LH
9014960004
main90149-60004
9015960010
main90159-60010
9015960230
main90159-60230
9015960242
main90159-60242
9020211001
main90202-11001
15 parts on this diagram · 1 diagram in section
