INSTRUMENT PANEL & GLOVE COMPARTMENT

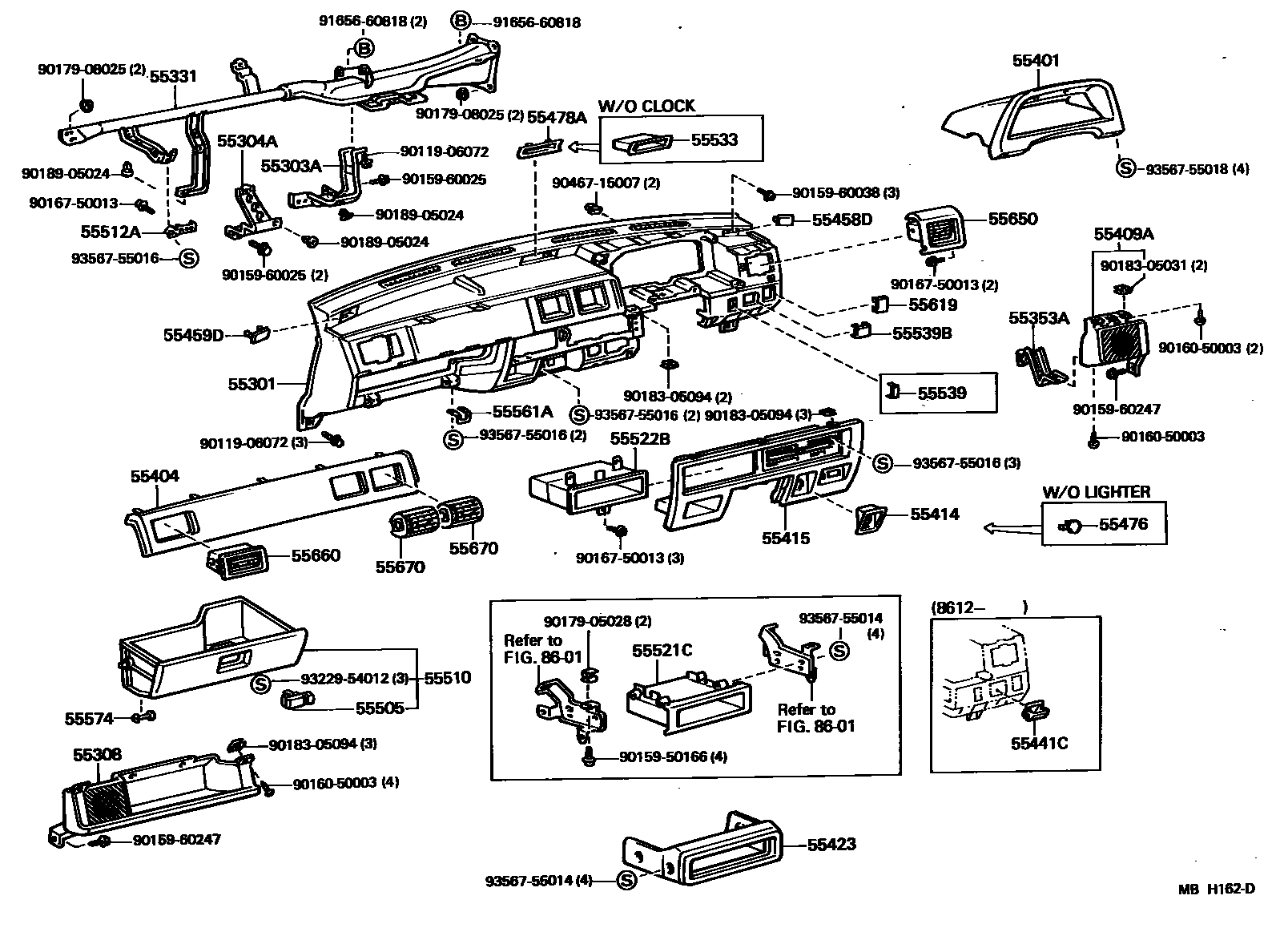

Parts diagram
55301PANEL SUB-ASSY, INSTRUMENT
main55311-10160-03i198410-198609
GRAY,GRAY
sub55086-10051
main55311-10160-04i198410-198609
BLUE,BLUE
sub55086-10051
main55311-10161-03i198609-198912
GRAY,GRAY
main55311-10161-04i198609-198612
BLUE,BLUE
main55311-10161-06i198612-198912
BROWN,BROWN
main55311-10170-03i198410-198912
GRAY,GRAY
main55311-10170-04i198410-198612
BLUE,BLUE
main55311-10170-06i198612-198912
BROWN,BROWN
55303ASTAY SUB-ASSY, INSTRUMENT PANEL
main55303-10070i198410-198912
main55303-10080i198410-198912
55304ASTAY SUB-ASSY, INSTRUMENT PANEL, CENTER
main55304-10020i198410-198612
main55304-10030i198410-198912
main55304-10040i198612-198912
55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
main55611-10040-01i198410-198912
BLACK,BLACK
main55611-10050-01i198410-198912
BLACK,BLACK
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-10030i198410-198605
main55330-10031i198605-198707
main55330-10032i198707-198912
main55330-10040i198410-198612
main55330-10070i198612-198912
55353ABRACKET, SPEAKER MOUNTING, NO.1
main55353-10010i198410-198912
main55353-10020i198410-198912
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
main55404-10090-03i198410-198612
GRAY,GRAY
sub55404-10100
main55404-10090-04i198410-198612
BLUE,BLUE
sub55404-10100
main55404-10110-03i198410-198612
GRAY,GRAY
main55404-10110-04i198410-198612
BLUE,BLUE
main55404-10120-03i198612-198912
GRAY,GRAY
sub55404-10130
main55404-10120-06i198612-198912
BROWN,BROWN
sub55404-10130
main55404-10140-03i198612-198912
GRAY,GRAY
main55404-10140-06i198612-198912
BROWN,BROWN
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
main55401-10210-03i198410-198612
GRAY,GRAY
main55401-10210-04i198410-198612
BLUE,BLUE
main55401-10211-03i198612-198912
GRAY,GRAY
main55401-10211-06i198612-198912
BROWN,BROWN
main55401-10220-03i198410-198612
GRAY,GRAY
main55401-10220-04i198410-198612
BLUE,BLUE
main55401-10221-03i198612-198912
GRAY,GRAY
main55401-10221-06i198612-198912
BROWN,BROWN
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
main55472-10040-01i198410-198912
BLACK,BLACK
main55472-10050-01i198410-198912
BLACK,BLACK
55414BEZEL, CIGAR LIGHTER HOLE
main55477-10040i198410-198912
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55405-10190i198410-198612
W/HEATER
main55405-10191i198612-198912
W/HEATER
main55405-10200i198410-198612
W/HEATER
main55405-10201i198612-198912
W/HEATER
main55405-10210i198410-198612
W/*BV
main55405-10211i198612-198912
W/*BV
main55405-10220i198410-198612
W/*BV
main55405-10221i198612-198912
W/*BV
main55405-10230i198410-198612
main55405-10231i198612-198912
main55405-10240i198410-198612
main55405-10241i198612-198912
55423PANEL, STEREO PLAYER FINISH
main55423-10040i198410-198912
55441CBOX, INSTRUMENT PANEL COIN
main55441-10090-03i198612-198912
GRAY,GRAY
main55441-10090-06i198612-198912
BROWN,BROWN
55458DCOVER, INSTRUMENT LOWER, RH
main55458-10010-03i198410-198612
GRAY,GRAY
main55458-10010-04i198410-198612
BLUE,BLUE
main55458-10011-03i198612-198912
GRAY,GRAY
main55458-10011-06i198612-198912
BROWN,BROWN
55459DCOVER, INSTRUMENT, LOWER LH
main55459-10020-03i198410-198612
GRAY,GRAY
main55459-10020-04i198410-198612
BLUE,BLUE
main55459-10021-03i198612-198912
GRAY,GRAY
main55459-10021-06i198612-198912
BROWN,BROWN
55476COVER, CIGARETTE LIGHTER HOLE
main55477-10050i198410-198912
55478ABEZEL, AUTO CLOCK HOLE
main55478-10010-03i198410-198912
GRAY,GRAY
main55478-10010-04i198410-198612
BLUE,BLUE
main55478-10010-06i198612-198912
BROWN,BROWN
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
main55560-10010-03i198410-198612
GRAY,GRAY
main55560-10010-04i198410-198612
BLUE,BLUE
main55560-10010-06i198612-198912
BROWN,BROWN
main55560-10010-13i198612-198912
GRAY,GRAY
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-10050-03i198410-198912
GRAY,GRAY
main55550-10050-04i198410-198612
BLUE,BLUE
main55550-10050-06i198612-198912
BROWN,BROWN
main55550-10060-03i198410-198912
GRAY,GRAY
main55550-10060-04i198410-198612
BLUE,BLUE
main55550-10060-06i198612-198912
BROWN,BROWN
55512APLATE, GLOVE COMPARTMENT
main55512-10060i198410-198912
55521CCOVER, STEREO OPENING
main55521-16010i198410-198912
sub55521-16030
55522BCOVER, RADIO TUNER OPENING
main55522-10040i198410-198912
sub55522-47020
55533COVER, AUTO CLOCK HOLE
main55533-10030-03i198410-198912
GRAY,GRAY
main55533-10030-04i198410-198612
BLUE,BLUE
main55533-10030-06i198612-198912
BROWN,BROWN
55539COVER, SPARE SWITCH HOLE
main55539-24010-04i198410-198612
BLUE,BLUE
sub55539-32010
sub55539-14030
sub55539-20030
main55539-24010-13i198410-198912
GRAY,GRAY
sub55539-32010
sub55539-14030
sub55539-20030
main55539-24010-36i198612-198912
BROWN,BROWN
sub55539-32010
sub55539-14030
sub55539-20030
55539BCOVER, SPARE SWITCH HOLE, NO.2
main55539-10030-03i198410-198612
GRAY,GRAY
main55539-10030-04i198410-198612
BLUE,BLUE
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
main55561-17010i198410-198912
55574SHAFT, GLOVE COMPARTMENT DOOR HINGE
main55574-10010×2i198410-198912
55619COVER, SWITCH HOLE
main74267-24010-03i198410-198912
GRAY,GRAY
main74267-24010-04i198410-198612
BLUE,BLUE
main74267-24010-06i198612-198912
BROWN,SEPIA BROWN
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-10050-03i198410-198509
GRAY,GRAY
main55650-10050-04i198410-198509
BLUE,BLUE
main55650-10051-03i198509-198612
GRAY,GRAY
main55650-10051-04i198509-198612
BLUE,BLUE
main55650-10060-03i198410-198509
GRAY,GRAY
main55650-10060-04i198410-198509
BLUE,BLUE
main55650-10061-03i198509-198612
GRAY,GRAY
main55650-10061-04i198509-198612
BLUE,BLUE
main55650-10070-03i198612-198912
GRAY,GRAY
main55650-10070-06i198612-198912
BROWN,BROWN
main55650-10080-03i198612-198912
GRAY,GRAY
main55650-10080-06i198612-198912
BROWN,BROWN
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-10010-03i198410-198509
GRAY,GRAY
main55660-10010-04i198410-198509
BLUE,BLUE
main55660-10011-03i198509-198612
GRAY,GRAY
main55660-10011-04i198509-198612
BLUE,BLUE
main55660-10012-03i198612-198912
GRAY,GRAY
main55660-10012-06i198612-198912
BROWN,BROWN
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55063-10020-03×2i198410-198912
GRAY,GRAY
main55063-10020-04×2i198410-198612
BLUE,BLUE
main55063-10020-06×2i198612-198912
BROWN,BROWN
main55660-10010-03×2i198410-198509
GRAY,GRAY
main55660-10010-04×2i198410-198509
BLUE,BLUE
main55660-10011-03×2i198509-198612
GRAY,GRAY
main55660-10011-04×2i198509-198612
BLUE,BLUE
main55660-10012-03×2i198612-198912
GRAY,GRAY
main55660-10012-06×2i198612-198912
BROWN,BROWN
8601
9011906072
main90119-06072
9015950166
main90159-50166
9015960025
main90159-60025
9015960038
main90159-60038
9015960247
main90159-60247
9016050003
main90160-50003
9016750013
main90167-50013
9017905028
main90179-05028
9017908025
main90179-08025
9018305031
main90183-05031
9018305094
main90183-05094
9018905024
main90189-05024
9046715007
main90467-15007
9165660818
main91656-60818
9322954012
main93229-54012
9356755014
main93567-55014
9356755016
main93567-55016
9356755018
main93567-55018

50 parts on this diagram · 2 diagrams in section
