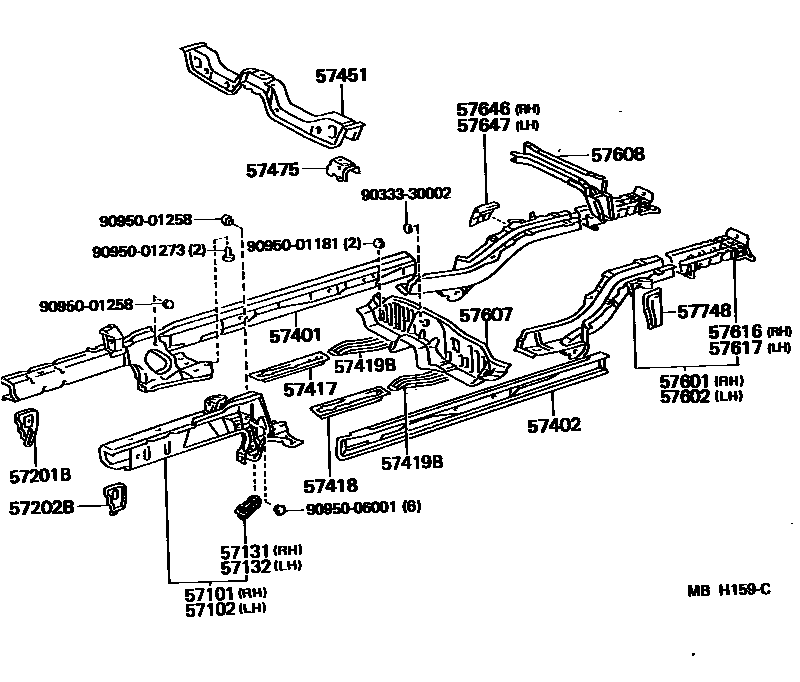

FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
*GIS
*GIS
HARSH ROAD PACKAGE
HARSH ROAD PACKAGE
HARSH ROAD PACKAGE,*GIS
HARSH ROAD PACKAGE,*GIS
57102MEMBER SUB-ASSY, FRONT SIDE, LH
*GIS
*GIS
HARSH ROAD PACKAGE
HARSH ROAD PACKAGE
HARSH ROAD PACKAGE,*GIS
HARSH ROAD PACKAGE,*GIS
57131BRACKET, ENGINE UNDER COVER MOUNTING, RH
HARSH ROAD PACKAGE
57132BRACKET, ENGINE UNDER COVER MOUNTING, LH
HARSH ROAD PACKAGE
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
HARSH ROAD PACKAGE
HARSH ROAD PACKAGE,*GIS
57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
HARSH ROAD PACKAGE
HARSH ROAD PACKAGE,*GIS
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
MALAYSIA,INDONESIA SPEC
57451MEMBER, FRONT FLOOR CROSS
57475PLATE, FRONT FLOOR CROSSMEMBER
RH
LH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57616MEMBER, REAR FLOOR SIDE, REAR RH
57617MEMBER, REAR FLOOR SIDE, REAR LH
57646REINFORCEMENT, REAR SIDE MEMBER TO BODY, RH
57647REINFORCEMENT, REAR SIDE MEMBER TO BODY, LH
57748REINFORCEMENT, LATERAL ROD BRACKET
9033330002
main90333-30002
9095001181
main90950-01181
9095001258
main90950-01258
9095001273
main90950-01273
9095006001
main90950-06001
27 parts on this diagram · 1 diagram in section
