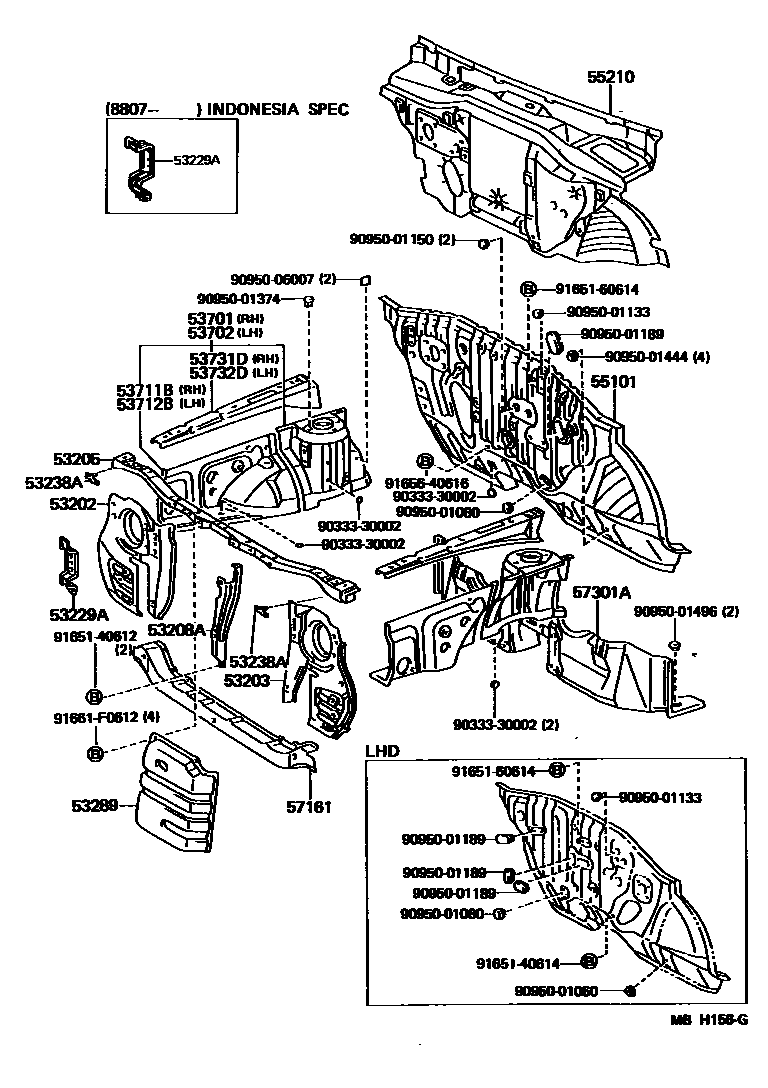

FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-10090iEP7#198410-198607

main53202-10100iEP7#198410-198912

*GIS

main53202-10110iEP7#198607-198912

main53202-10120iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-10130iEP7#198410-198601

main53203-10131iEP7#198601-198607

main53203-10140iEP7#198410-198601

*GIS

main53203-10141iEP7#198601-198912

*GIS

main53203-10150iEP7#198607-198912

main53203-10170iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-10900iEP7#198410-198601

main53216-10902iEP7#198601-198710

main53216-10903iEP7#198710-198912

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-10030iEP7#198410-198607

main53208-10040iEP7#198607-198912

main53208-10060iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC

53229ABRACKET, RADIATOR GRILLE MOUNTING

main53105-10030iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC,RH

main53106-10030iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC,LH

main53223-10050iEP7#198410-198508

RH

main53223-10060iEP7#198508-198912

RH

main53224-10020iEP7#198410-198508

LH

main53224-10030iEP7#198410-198508

LH,*GIS

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-10030iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC,RH

main53239-10020iEP70,71..RHD..5D..5F198807-198912

INDONESIA SPEC,LH

53289COVER, RADIATOR SIDE BAFFLE

main53289-10030iEP7#198410-198912

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-10290iEP7#198410-198911

main53701-10310iEP7#198911-198912

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-10330iEP7#198410-198912

53711BAPRON, FRONT FENDER, FRONT RH

main53711-10120iEP7#198410-198912

53712BAPRON, FRONT FENDER, FRONT LH

main53712-10190iEP7#198410-198912

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-10040iEP7#198410-198912

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-10040iEP7#198410-198912

55101PANEL SUB-ASSY, DASH

main55101-10924iEP7#..RHD..MTM198410-198510

main55101-10925iEP71..RHD..3FC198410-198912

main55101-10926iEP7#..LHD..MTM198410-198506

main55101-10928iEP71..LHD..3FC198410-198506

sub55101-10932

main55101-10930iEP70..RHD..5D..STD198506-198510

THAILAND SPEC

main55101-10931iEP7#..LHD..MTM198506-198912

55210INSULATOR ASSY, DASH PANEL

main55210-10110iEP70,71..RHD..MTM198410-198912

sub55210-10150

main55210-10120iEP71..RHD..3FC198410-198912

sub55210-10150

main55210-10130iEP7#..LHD..MTM198410-198912

sub55210-10170

main55210-10140iEP71..LHD..3FC198410-198912

sub55210-10170

57161CROSSMEMBER, FRONT

main57161-10900iEP7#198410-198504

main57161-10901iEP7#198410-198504

*GIS

main57161-10903iEP7#198501-198601

HARSH ROAD PACKAGE 2

main57161-10904iEP7#198501-198601

HARSH ROAD PACKAGE 2;HARSH ROAD PACKAGE 2,*GIS

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-10020iEP7#..LHD198410-198512

main57301-10021iEP7#..LHD198512-198601

main57301-10022iEP7#..LHD198601-198912

main57301-10030iEP7#..RHD198410-198512

main57301-10031iEP70,71..RHD198512-198601

main57301-10032iEP70,71..RHD198601-198912

9033330002

main90333-30002

9095001060

main90950-01060

9095001133

main90950-01133

9095001150

main90950-01150

9095001189

main90950-01189

9095001374

main90950-01374

9095001444

main90950-01444

9095001496

main90950-01496

9095006007

main90950-06007

9165140612

main91651-40612

9165140614

main91651-40614

9165160614

main91651-60614

9165640616

main91656-40616

91661F0612

main91661-F0612

31 parts on this diagram · 1 diagram in section
