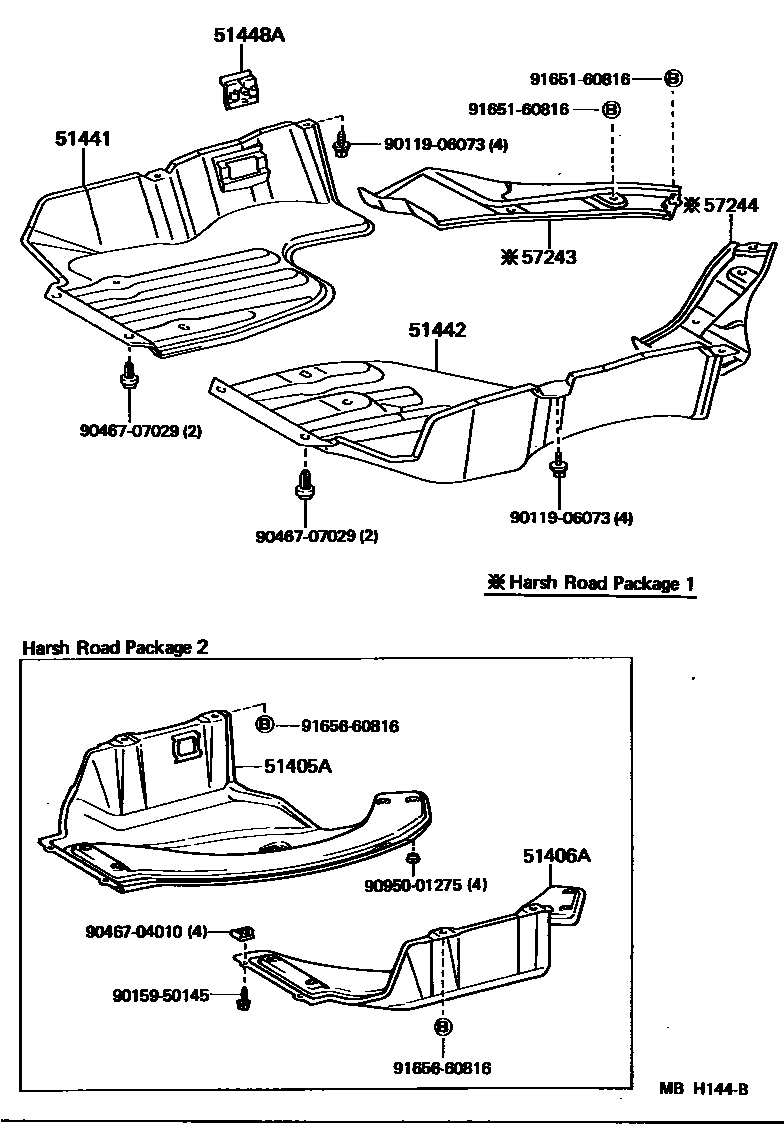

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-10020iEP7#..MTM198501-198912

HARSH ROAD PACKAGE 2

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-10010iEP7#..MTM198501-198912

HARSH ROAD PACKAGE 2

51441COVER, ENGINE UNDER, NO.1

main51441-10070iEP7#198410-198612

sub51441-10110

main51441-10110iEP7#198612-198912

51442COVER, ENGINE UNDER, NO.2

main51442-10020iEP7#..MTM198410-198612

sub51442-10090

main51442-10030iEP71..3FC198410-198612

sub51442-10100

main51442-10090iEP7#..MTM198612-198912

main51442-10100iEP71..3FC198612-198912

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iEP7#198410-198912

57243PROTECTOR, LOWER ARM, RH

main57243-10020iEP7#198410-198912

HARSH ROAD PACKAGE 1

57244PROTECTOR, LOWER ARM, LH

main57244-10020iEP7#198410-198912

HARSH ROAD PACKAGE 1

9011906073

main90119-06073

9015950145

main90159-50145

9046704010

main90467-04010

9046707029

main90467-07029

9095001275

main90950-01275

9165160816

main91651-60816

9165660816

main91656-60816

14 parts on this diagram · 1 diagram in section
